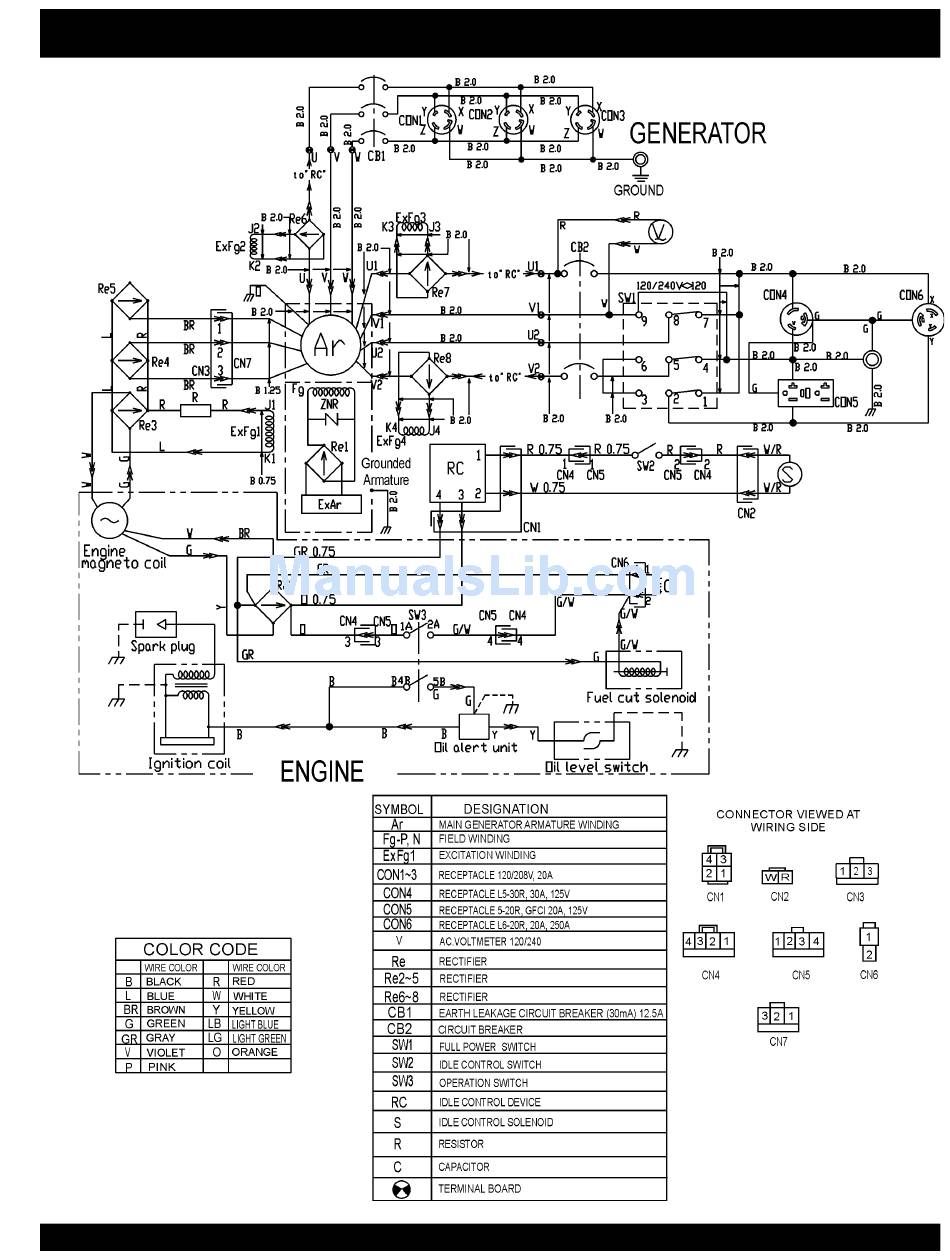

GDP-5H — WIRING DIAGRAM (GENERATOR) S/N 5543731 AND ABOVE

Figure 33. Generator Wiring

Diagram (S/N 5543731 and above)

GDP-5H A.C. GENERATOR — PARTS & OPERATION MANUAL — REV. #2 (10/05/05) — PAGE 33
