Command|8 Back Panel

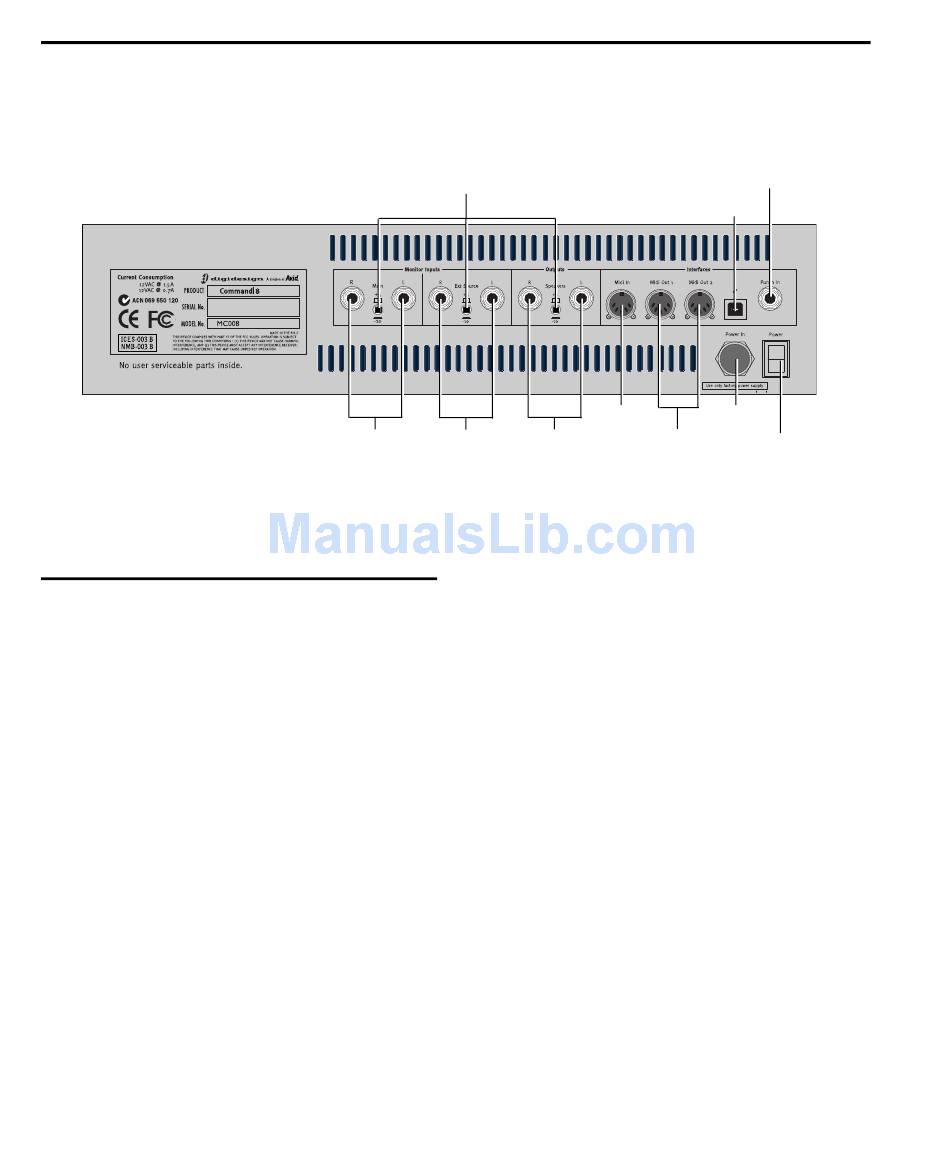

Figure 4 shows the Command|8 back panel connectors and switches.
Figure 4. Command|8 back panel
Connecting Command|8 to
Pro Tools and Your Computer
This section lists the basic steps required to con-
nect Command|8 to a Pro Tools system. Instruc-
tions for each step can be found later in this
chapter.
Installing Command|8 for Pro Tools involves the
following:
"Connecting AC Power" on page 9.
1
"Connecting Command|8 to Your Computer"
2
on page 9.
"Installing Software for Command|8" on
3
page 9.
8 Command|8 Guide
+4/–10 switches
Ext Source
Main
Monitor Monitor
Inputs
Inputs
"Connecting Analog Audio for Monitoring"
4
on page 10.
"Connecting a Footswitch" on page 12 (op-
5
tional).
"Connecting MIDI Devices to Command|8"
6
on page 12.
"Configuring MIDI Communication with
7
Command|8" on page 12.
"Enabling Command|8 in Pro Tools" on
8
page 14.
For complete instructions for using Command|8
in Stand-Alone mode, see Chapter 5, "Using
Stand-Alone Mode."
MIDI In
Speaker MIDI Out
Outputs 1 & 2
Punch In
USB
Power
socket
Power
switch
