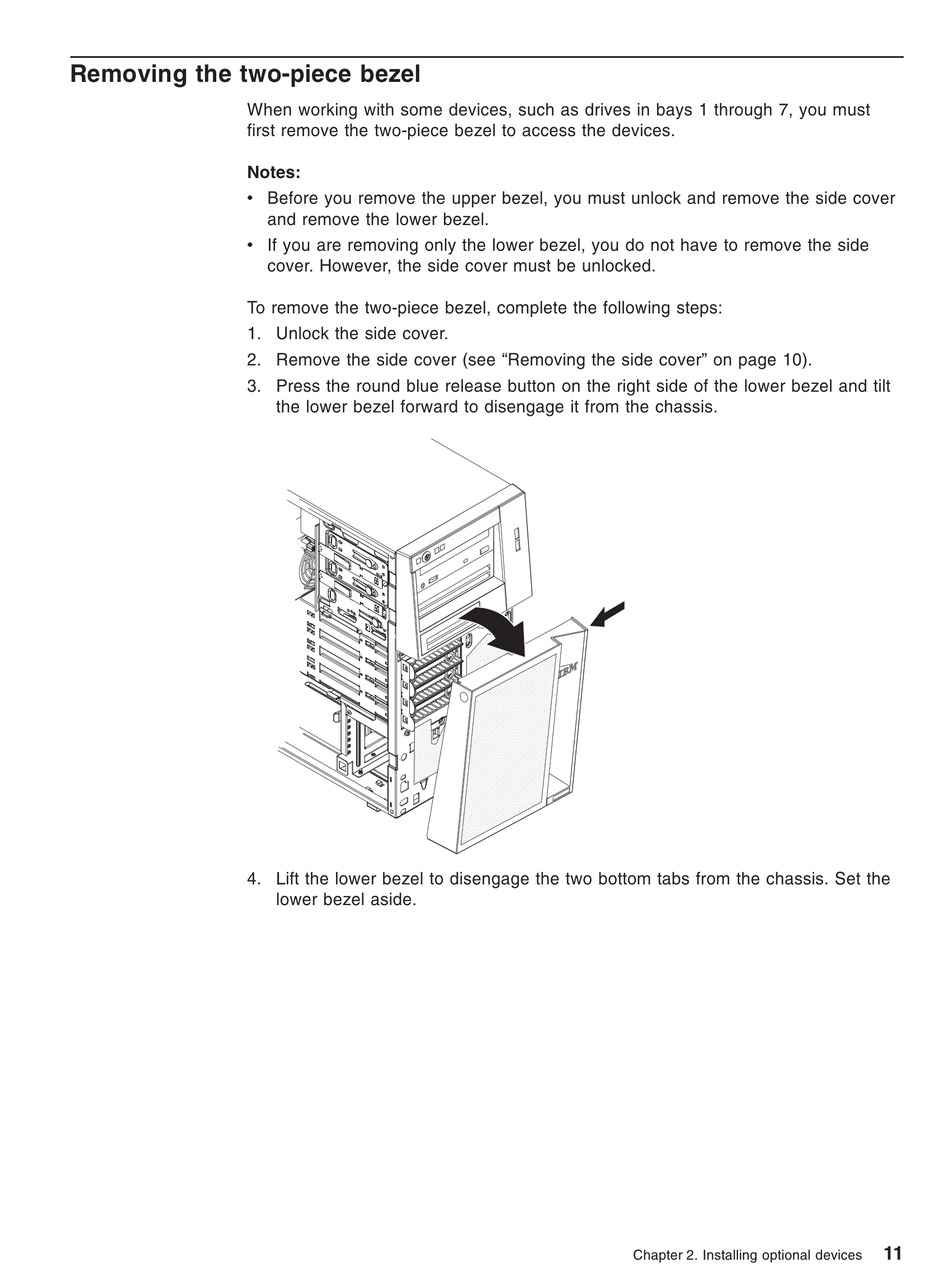

Removing the two-piece bezel

When working with some devices, such as drives in bays 1 through 7, you must
first remove the two-piece bezel to access the devices.
Notes:
v Before you remove the upper bezel, you must unlock and remove the side cover
v If you are removing only the lower bezel, you do not have to remove the side
To remove the two-piece bezel, complete the following steps:
1. Unlock the side cover.
2. Remove the side cover (see "Removing the side cover" on page 10).
3. Press the round blue release button on the right side of the lower bezel and tilt
4. Lift the lower bezel to disengage the two bottom tabs from the chassis. Set the
and remove the lower bezel.
cover. However, the side cover must be unlocked.
the lower bezel forward to disengage it from the chassis.
lower bezel aside.
