Vitek VTD-13FN User Manual
  1. Manuals
  2. Brands
  3. Vitek Manuals
  4. Security Camera
  5. VTD-13FN
  6. User manual

Vitek VTD-13FN User Manual

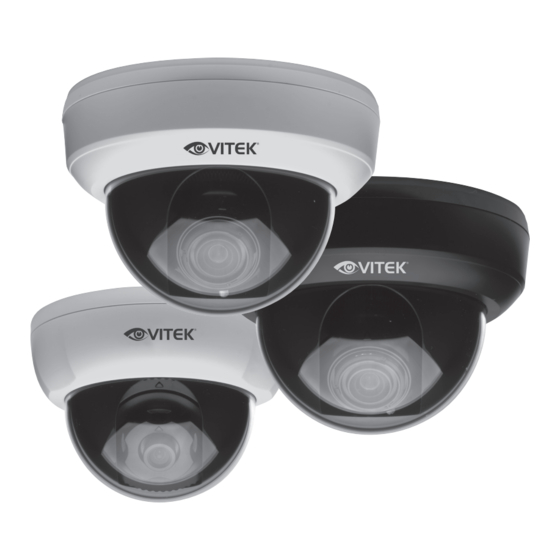

Envi series 1.3 & 2.o megapixel indoor dome camera series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
• 1/3" 1.3 & 2.0 Megapixel Progressive Scan CMOS image sensors
• Up to 30fps live view @ 1920x1080p (2.0 MegaPixel Models) / 1280x1024 (1.3
MegaPixel Models)
• 3.8mm Fixed / 2.8-10mm Varifocal Auto Iris Lens options
• 2D-DNR Noise Reduction
• 16:9 (2.0 MegaPixel Models) / 4:3 (1.3 MegaPixel Models) Video format
• Secondary video output for installation & maintenance
• H.264/MJPEG Dual Streaming
• Minimal Latency with up to 16 simultaneous user connections
• Onvif Compliance
• EDGE recording with onboard MicroSD memory card slot (supports up to 32GB
of local storage)
• Optional Wall Mount available
• 12VDC Operation / Optional PoE (Power over Ethernet)
Specifications & installation procedure subject to change without notice.
Visit www.vitekcctv.com for the most current information available.
ENVI Series
ENVI Series 1.3 & 2.o MegaPixel
Indoor Dome Camera Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTD-13FN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek VTD-13FN

Summary of Contents for Vitek VTD-13FN

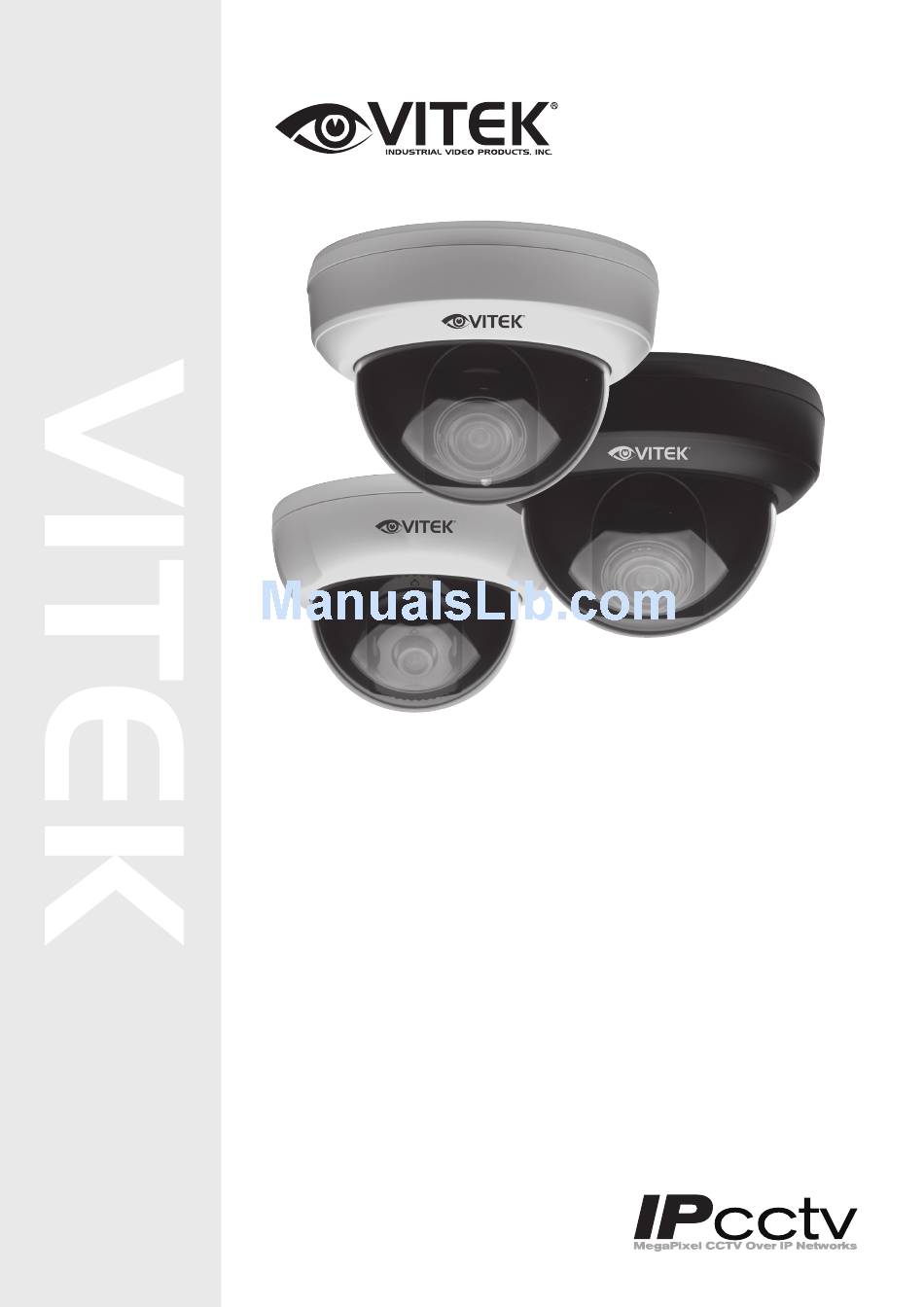

  • Page 1 ENVI Series ENVI Series 1.3 & 2.o MegaPixel Indoor Dome Camera Series • 1/3” 1.3 & 2.0 Megapixel Progressive Scan CMOS image sensors • Up to 30fps live view @ 1920x1080p (2.0 MegaPixel Models) / 1280x1024 (1.3 MegaPixel Models) • 3.8mm Fixed / 2.8-10mm Varifocal Auto Iris Lens options •...

  • Page 2: Table Of Contents

    5. VTD-13VN / VTD-20VN Installation .................... 9 5.1. Connections ......................... 9 6. Camera Software Installation ....................13 7. VTD-13FN / VTD-13VN / VTD-20VN Features ................16 8. IP Installer: Introduction ......................17 9. Installing and Uninstalling ....................... 17 9.1. Installing IP Installer ....................17 9.2.
  • Page 3 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 13.3. Admin Password ......................41 13.4. Access Control ......................41 13.5. User Registration ......................41 13.5.1. Add ......................... 41 13.5.2. Edit ......................... 43 13.5.3. Delete ......................43 14. Network Configuration ......................43 14.1. Static IP Configuration ....................44 14.2.
  • Page 4 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 20. Installing and Uninstalling ..................... 81 20.1. Installing ENVI Series Viewer ..................81 20.1.1. Installing on Web Browser ................81 20.1.2. Manual Installation ................... 83 20.2. Uninstalling ENVI Series Viewer ................... 84 20.2.1. Uninstalling with Program Menu ................ 84 20.2.2.
  • Page 5 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 29.1. Introduction ......................113 29.2. Key Features ......................113 29.3. System Requirement for PC..................113 30. Installing and Uninstalling ....................114 30.1. Installing Smart Player ....................114 30.1.1. Manual Installation ..................114 30.2. Uninstalling Smart Player ..................116 30.2.1.
  • Page 6 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 37.4. IP-Device Homepage ....................154 37.5. Camera Management ....................154 37.5.1. Configure Camera Name and Information ............155 37.5.2. Camera Resolution, Quality ................156 37.5.3. Configure Camera Recording Condition ............157 37.5.4. Alarm, Event Configuration ................160 37.6.

  • Page 7: Box Contents

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 1. Box Contents 1) Dome Camera 2) Mounting Accessories 3) ENVI Series CD 2. Included Accessories Self Tapping Screws For mounting dome to ceiling, wall etc. Type #: Phillips head ST4x30 Qty: 2 Secondary Video Output Cable To be used with a service monitor for adjusting the angle, focus and zoom.

  • Page 8: Vtd-13Fn Installation

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 4. VTD-13FN Installation 4.1. Connections 1. Power Depending on the type of installations, apply power to the camera by one of the options below. a) Via Ethernet – Use only with POE switch (100 Meters max distance)
  • Page 9 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 4. Place the camera in the desired location and install usingsupplied screws. 5. With the help of a hand held monitor (VTM-LCD351 not included) you can adjust the field of view and focus the camera.

  • Page 10: Vtd-13Vn / Vtd-20Vn Installation

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 8. After the camera adjustments are completed, place the dome cover back on to the camera base. 5. VTD-13VN / VTD-20VN Installation 5.1. Connections 1. Power Depending on the type of installations, apply power to the camera by one of the options below.
  • Page 11 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 1. Ethernet connection b) Insert one end of the Ethernet cable into the network jack of your camera, and insert the other end into the data port (sample: switch, router, etc) 2. Remove the dome cover from the camera using a coin 3.
  • Page 12 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 5. Lens Adjustment a) Loosen Zoom & Focus screw and make necessary adjustments as shown. Field of view: Telephoto(T) to Wide(W) ∞ Focus: Near(N) to infinity ( 6. Adjusting Camera View You can adjust the camera’s Pan / Tilt 7.
  • Page 13 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 8. After the camera adjustments are completed, place the dome cover back on to the camera base.

  • Page 14: Camera Software Installation

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 6. Camera Software Installation 1. Run IP Installer Software from the CD program on a computer that is on the same network as the IP camera. 2. StartIP Installer, by double clicking the icon “IP Installer”...
  • Page 15 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 7. After the camera was configured by the program automatically, you will be able to get access Go Product Homepage a) Right click over the camera information, “ ” Connect Product Homepage b) Click over the icon “...
  • Page 16 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN On Live View you will be able to see live video from your camera. NOTE: For more information, refer to Section 11Admin Menu of VITEK VTD-13/VTD-20 Series on page 37.

  • Page 17: Vtd-13Fn / Vtd-13Vn / Vtd-20Vn Features

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 7. VTD-13FN / VTD-13VN / VTD-20VN Features VTD-13FN ENVI Indoor 1.3 MegaPixel IP Dome Camera Series 1/3" 1.3 Megapixel Progressive Scan CMOS imager Up to 30fps live view @ 1280x1024 3.8mm Fixed Lens Included...

  • Page 18: Ip Installer: Introduction

    Installing IP Installer If the program is started from the CD supplied with Vitek products, insert the CD in to CD/DVD tray and check the installation file. If it is download or copied from the Internet or any other media, locate the file from the PC’s hard drive.
  • Page 19 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN You may be prompted to continue running the installation program. Click Yes button, then the following window will be shown on the screen. To continue the installation, click Next. The following window will be displayed for location to...
  • Page 20 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN The default location for installation is C:\Program Files\IP Installer. It is recommended to install in this folder, if you want to change it to a different location, click the Browse button to choose...

  • Page 21: Uninstalling Ip Installer

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN When the files are done copying, the following window will be shown. Click the Finish button to complete the installation. 9.2. Uninstalling IP Installer If you want to remove the IP Installer program from your PC, click Start > All Programs > IP Installer >...
  • Page 22 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Click onthe Yes button, then the following window will be shown on the screen. Click on the Next button and you will see the following window. Click on the Uninstall button to start removing the IP Installer program from your computer.
  • Page 23 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Click on the Finish button to close the window...

  • Page 24: Using Ip Installer

    There are no network devices shown,as it is the first time running the program and nothing has been registered. Scan the network and shows the list of all the Vitek products that IP Search Product Installer program found.

  • Page 25: Search Product

    10.2. Search Product Make sure that your Vitek products are powered and connected to the network, and then click the Search Product button. A status window will pop up to show the progress of the search. Wait until it reaches 100%, or you may press the Cancel button to stop the search at any given timeand proceed with the results made until that moment.

  • Page 26: Manual Network Setup

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 10.3. Manual Network Setup Configuring the network parameters of the devices in the list can be started either by highlighting and right clickingmouse button or by clicking Manual IP Setupbutton on the main Toolbar.
  • Page 27 Password for the IP device. (Admin Password) (Default password for Vitek products is “root” unless already changed) Select whether the configured contents is to be saved in the Camera memory or not. • Save Configuration: Changed values will be saved in the Camera memory of the device, which means the changes are permanent.

  • Page 28: Automatic Network Setup

    HTTP port number of the IP device for web access to homepage. Password Password for the IP device.(Default password for Vitek products is “root”) If you click Apply to all button after changing just a field of one IP device, the remaining IP devices will have the same value for that parameter.
  • Page 29 (IP Address, Netmask, Default Gateway, DNS1, DNS2) Authentication Password for the IP device. (Default password for Vitek products is “root”) (Admin Password) Select whether the configured contents is to be saved in the Camera memory or not.
  • Page 30 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Note: If your network has more than one IP address Zone at the same time, the confirmation window will be displayed as below. You need to choose the one you are going to use for your IP devices.

  • Page 31: Using Dhcp Server

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 10.5. Using DHCP Server If your network has a DHCP server running for assigning IP addresses, you may choose to let it assign IP addresses to the IP devices on the list. To do that, first open the Network Setup window either by Manual IP Setup or Automatic IP Setup procedure.
  • Page 32 Password for the IP device. (Admin Password) (Default password for Vitek products is “root” unless already changed) Select whether the configured contents is to be saved in the Camera memory or not. • Save Configuration: Changed values will be saved in the Camera memory of the device, which means the changes are permanent.

  • Page 33: Updating Firmware

    IP Installer window. In the above picture, the firmware version of this product is 4.14-01-ds while the latest firmware version available is 4.16-B0-ds-VI as you could see at Vitek’s homepage (http://www.vitekcctv.com/Downloads.asp). If you decide to update the firmware, first create a folder on your computer for the update firmware, than download the latest firmware to that folder.
  • Page 34 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN After clicking OK the following window will be displayed. Note: Do not CLOSE window until completed, to avoid permanent damage to the camera. You can also select multiple IP devices at the same time, and have them start firmware updating in a single step.

  • Page 35: Filter Configuration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 10.8. Filter Configuration When you need to search only for the IP device having a specific range of MAC or IP addresses, you can do it by using this feature. To set the search condition, click Filter Configuration button on the Toolbar, then the following window will show up on the screen.

  • Page 36: Live View

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN To start searching with this condition now, click Search Product button on the toolbar. The program will start searching and show the result after a moment. 10.9. Live View Once searching and configuration on IP devices are done, you should make sure that the IP devices are accessible with the new settings.
  • Page 37 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Click Live View on the top right of the window, then ENVI Series Viewer ActiveX program will be started. If you have not installed the ENVI Series Viewer program before, it will ask for a confirmation to install it.

  • Page 38: Admin Menu Of Vitek Vtd-13/Vtd-20 Series

    After connecting to a VITEKVTD-13/VTD-20 Series camera via web browser, you’ll find the web page as shown below. The upper rightmost item of the menu is Admin; this is where you can set up most of the features in the VITEK camera you’re connected to. 11.1.

  • Page 39: Admin Menu Structure

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 11.2. Admin Menu Structure The following table shows the hierarchy of the Admin menu structure that we’re going to deal with in this manual. 12. QuickConfiguration In Quick Configuration, you will be able to set up many of the essential parts of the configuration in a simple manner without going into details.

  • Page 40: Step 4: Ipcctvdns.com

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 12.4. Step 4: IPCCTVDNS.COM When VITEK Server is used in a Dynamic IP environment, it is required to utilize IP-CCTVDNS feature. Refer toSection 36IPCCTVDNS Registration on page 142see how to set up. 12.5.

  • Page 41: Date & Time

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN As an administrator, you can change the name of the camera/ server, but other values are not allowed to be changed. To change the camera/ servername, enter a new name in the Server Name field.

  • Page 42: Admin Password

    Apply button to put it into effect. Because you have replaced the password with a new one, the existing network connection made with the old password is lost now. You will have to reconnect to the VITEK camera using the new password.
  • Page 43 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Enter aUser ID between 4 and 23 alphanumeric characters. In bothPassword and Confirm Password fields, enter the identical password respectively. The password must be between 4 and 23 alphanumeric characters. In Name filed, enter the user’s name up to 23 alphanumeric characters.

  • Page 44: Edit

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN • VS Module ID: VS Module is a network device that has been registered in theVITEKcamera • Camera No.: Among the cameras of the VS Module select one to set up. (between all,1or2) •...

  • Page 45: Static Ip Configuration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 14.1. Static IP Configuration Select Network Configuration under Network configuration For static IP, select Static IP and input IP address, NetMask, Gateway, DNS1, DNS2 and click apply to save settings. After apply, program will ask to close web browser for updates, which will take 20~30 seconds.

  • Page 46: Pppoe Configuration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 14.3. PPPoE Configuration PPPoE is used to connect VITEK products to a PPPoE modem provided by the ISP. Since PPPoE needs verification, ID and a password are necessary to access the network. Type in PPPoE user ID and password 14.4.

  • Page 47: Bandwidth Control Configuration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 14.5. Bandwidth Control Configuration Bandwidth control is for limiting maximum network traffic. If it is enabled with Bandwidth limits, maximum data size transferred from VITEKcameras won’t exceed bandwidth limits set by users. If transferred data is exceeded, part of the data will be randomly lost.

  • Page 48: View Network Status

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 14.6. View Network Status This menu shows network status of VITEKcameras. 14.7. Network Status Notify This feature helps to send updated network status information to registered email address if any changes happen. This function will work under DHCP or PPPoE.

  • Page 49: Ip-Cctv Dns Setup

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN First, select Enable to use the feature. Then enter the address of the SMTP server which is needed for email service. If your SMTP server requires a user ID and a password for authentication, you will have to Enable Authentication Loginand enter the user ID and Password.

  • Page 50: Port Forwarding & Upnp

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN proper function of IP-CCTV DNS service, products need to be accessible through the internet. 14.9. Port Forwarding & UPnP UPnP(Universal Plug and Play)is a kind of network protocol to help users to find and configure network products in the same local network area.

  • Page 51: Rtp/Rtsp Setup

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 14.10. RTP/RTSP Setup Factory default is Enable to be used with other manufactures VMS software’s RTSP (Real-Time Streaming Protocol) is a protocol to transfer video and audio streams over the network. Any application supporting Standard RTSP can be used for VITEKcameras. Quick Time Player or VLC program can be used withthis;...
  • Page 52 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Enable: Start RTSP service Service Disable: Stop RTSP service In normal case, use default port number 554 to connect to RTSP service. If not using port 554, enter the port number you want to use.

  • Page 53: Device Configuration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 15. Device Configuration 15.1. Privacy Zone Users can set a privacy zone if a certain part of the screen needs to be unmonitored. To set the region, click Privacy Zone from Device Configuration category.
  • Page 54 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Users can add up to 8 Privacy Zones per screen by repeating above steps. If you add more than 8, an error message will display on the screen. To delete a privacy zone, click the zone and click Delete button followed by Apply button.

  • Page 55: Camera & Motion

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 15.2. Camera & Motion This menu is used to set up the selection of video format, data added to video data, encoding speed, audio control, image resolution, video quality, motion detection, etc. Click Camera & Motion on Device Configuration menu. The configuration menu will be displayed, and it may be different between VITEKcameras.
  • Page 56 • Audio: (not available on all models) Select if Audio function is to be used (applies to Primary Stream only). VITEK Cameras provides 2-way audio streaming by combining microphone input with video data. Users can listen to the streamed audio through a PC and speakers.

  • Page 57: Camera Configuration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Video Format SXGA QCIF NTSC 704 x 480 352 x 240 160 x 112 704 x 576 352 x 288 160 x 144 640 x 480 320 x 240 160 x 112 1.3M Pixel...
  • Page 58 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Image Quality Setup In Image Quality level setup, select “Low Compression” for higher image quality, but it requires higher network bandwidth. Selecting the “Lowest” requires lower network bandwidth, but gives decreased image quality.
  • Page 59 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN • Sharpness: select the sharpness of image between 0 and 5. • Day & Night Control: If used, the image will be in Color mode during daytime and Black&White mode during night time.
  • Page 60 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN • Motion Detection:(this is only available in Primary Stream) If enabled, Motion Detection feature is activated and user can configure the areas where motion detection function will work. Click Check All button for whole scene to be active (grid will turn Green) then click on any box...

  • Page 61: Advanced Configuration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 16. Advanced Configuration There are two types of advanced service, one is Buffered Service and the other is Periodic Service. In Buffering Service, a series of images are continuouslybeing stored in a buffer memory of thecamera/server for a certain period of time.

  • Page 62: Advanced Services

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 16.1. Advanced Services Pre-Alarm buffer size and buffering speed can be defined here. • Pre-Alarm Buffer Size: You can set the buffer size which will store the images before event. The unit is in frame, and each channel can be set with different values. The total number of frames for Pre-Alarm Buffer and Post-Alarm Buffer is limited to 10 frames.

  • Page 63: E-Mail Service Configuration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 16.1.1. E-mail Service Configuration Email configuration is set up here for Alarm in case any event occurs. Item Description Camera 1~2 Select a channel to be configured for email notification Service Select Enable in order to use this service SMTP server address Enter SMTP server’s address for sending email.
  • Page 64 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN E-mail Service Setup for Each Channel For each channel, the following items can be configured for email service: Condition, Post-Alarm Buffer Size, and Post-Alarm speed. The content of text message and display style of DI value can be configured as well.
  • Page 65 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN After finishing setup, click Save button to apply. If you don’t want to change, click Back button. Condition, Schedule & Event Configuration If you click on a Condition link, the Advanced Service windows is displayed as shown below.

  • Page 66: Ftp (Buffered) Service Configuration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 16.1.2. FTP (Buffered) Service Configuration Item Description Camera 1 - Camera Select which channel to set up for FTP (Buffered). Select Enable to use the FTP (Buffered) service. Otherwise select Service Disable. Server Address FTP Server Address.
  • Page 67 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN User ID Enter a User ID to log in to FTP server. Password Enter the Password for the user ID to log in to FTP server FTP Control Port Port number for FTP server (Normally 21 is used)

  • Page 68: Ftp (Periodic) Service Configuration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Item Description Condition 1 ~ Select a condition for FTP (Buffered) service to be activated. Up to 3 Condition 3 conditions can be set. Pre-Alarm Buffer Size The Buffer size assigned for Pre-Alarm.
  • Page 69 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Item Description Camera 1 - Camera 2 Select which channel to set up for FTP (Periodic) service Select Enable to use the FTP (Periodic) service. Otherwise select Service Disable. Server Address FTP Server Address.

  • Page 70: Recording Configuration For Cameras With Microsd Card

    MicroSD Configuration If a microSD card (SD card) is not present in the slot already, power down the VITEK IP camera before inserting an SD card. Make sure to turn the power on after inserting the SD card. Open a webbrowser, type in the IP address of the VITEK camera.
  • Page 71 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN If entire SD information is showing “-NONE-” this means SD card is not formatted, in this case click Note: Be sure to turn off the device before installing a SD card. Otherwise, the SD card may become defective.
  • Page 72 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Read format option on screen and then click Partition and Formata pop up screen will display asking if you want to do a “Partition and formatting” click OK to continue or Cancel to stop. After clicking OK the following screen will be displayed Note: if program is terminated during the “Format”...

  • Page 73: Recording Configuration With Microsd Card

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Click OK and you will be brought back to the “SD Status & Format screen” click on “Reboot” wait approximately 30 seconds and log back into the Admin screen. Open up “Recording Configuration” menu and click on “SD Configuration” then click on “SD Information” and the following screen will be displayed showing SD card info 17.2.
  • Page 74 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Below is an example of configuring the motion detection-triggered recording. It starts by clicking Recording Configuration and clicking on Camera1, the following screen will be display. Select Condition 1andthe following window will be display.
  • Page 75 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Enable / Disable By clicking on Enable you will be able to select your mode (Always, Schedule only etc). in this example we will be selecting “Event Only”. Schedule Under Scheduleyou can select time and date for motion recording if left blank motion recording will be 24hrs, 7 days a week.

  • Page 76: Utilities

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 18. Utilities In Utilities part of the Admin menu, you can view the System Log file, Save Configuration, Reboot, FactoryDefault and System Update.

  • Page 77: System Log

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 18.1. System Log System log file provides you the information about when and who access’ the contents of VITEKCameras such as HTTP file or CGI programs. In each line, log data consists of date, time, category, IP address, user ID.

  • Page 78: Factory Default

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 18.4. Factory Default When required to restore the configuration of a Camera to factory default conditions,Network configuration is not affected by this action. Click Factory Default on Utilities menu. A confirmation screen will be displayed as shown Click Factory Default button, otherwise click Back button to cancel it.
  • Page 79 IP Installer window. In the above picture, the firmware version of this product is 4.14-01-ds while the latest firmware version available is 4.16-B0-ds-VI as you can see at Vitek’s homepage (http://www.vitekcctv.com/Downloads.asp). If you decide to update the firmware, first create a folder on your computer for the update firmware, than download the latest firmware to that folder.
  • Page 80 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN You may find the Password field is empty on the window shown above. If so, click the Password field of the IP device and enter the proper password for the device. You are not allowed to update the firmware if the correct password is not provided.

  • Page 81: Envi Series Viewer

    TCP/IP network. ENVI Series Viewer works with EN-V-R network video software, Vitek Network Video Servers, Network Video Recorders, and Network Cameras to show real-time live video images and enables users to control audio, Relay Output, and PTZ functions.

  • Page 82: Installing And Uninstalling

    20.1. Installing ENVI Series Viewer Connect to the Vitek Camera/Server using Internet Explorer, and click Live View on the main page. Then ENVI Series Viewer will be automatically downloaded and installed. If an Internet connection is not available, it's possible to manually install the program file in advance (from supplied CD) and connect to the Vitek Camera / Server later.
  • Page 83 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Click the Install ActiveX Control, and the pop-up window will be displayed as above. Click the Install button. Click “YES” to allow program to run. After the installation is successfully completed, ENVI Series Viewer window will be displayed.

  • Page 84: Manual Installation

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 20.1.2. Manual Installation When an Internet connection is not available or having some difficulties, you can manuallyinstall from the supplied CD usingENVI Series Viewer program file.Execute the downloaded file, and you will see the ENVI Series Viewer Setup Wizard window as shown below. Click the Install button to start installing.

  • Page 85: Uninstalling Envi Series Viewer

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 20.2. Uninstalling ENVI Series Viewer There are two ways to uninstall ENVI Series Viewer program from your computer. Before uninstalling, close all the Internet Explorer windows. 20.2.1. Uninstalling with Program Menu Click Uninstall and the following window will be shown. Click the Yes button.

  • Page 86: Uninstalling On Control Panel

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 20.2.2. Uninstalling on Control Panel Click Start button on the screen, then select the Control Panel. In the Control Panel window, double-click the Add or Remove Programs icon.

  • Page 87: Starting Envi Series Viewer

    You will see the Uninstall or change a program list. Click ENVI Series / (Smart Viewer) button, and then right click Uninstall /Changebutton. Then, it will start uninstalling the program. 21. Starting ENVI Series Viewer Once ENVI Series Viewer is installed in your computer, you can start it by connecting to the Vitek...

  • Page 88: Control Bar

    Camera / Server using Internet Explorer and select Live View on the main menu. The appearance of ENVI Series Viewer window varies depending on what type of Vitek Server is connected (Network Video Server, Network Camera, or Network Video Recorder).

  • Page 89: Channel Control Bar

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 21.2. Channel Control Bar Displays or hides live view video from channel 1 Displays or hides live view video from channel 2 Displays or hides live view video from ALL channels No Display 21.3.

  • Page 90: Saving As Video File

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 21.3.2. Saving as Video File In ENVI Series Viewer, Live video currently displayed can be captured and recorded as a video file in AVI format. Select a live view you want to save, and click RecAvi button on OSD ChannelButtons.

  • Page 91: Instant Playback

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN can be recorded to the microSD card by clicking this button. The recorded video can be viewed by Instant Playback feature of OSD Channel Buttons or by running ENVI Series Player program. To Max duration is 1 minute finish, click the icon again.

  • Page 92: Extended Features

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Set the beginning of video data. Instant playback will scan 1 min after this. Se the playback speed. Begin searching data Playback Reverse playback. 1 frame playback 1 frame reverse playback Pause Stop 21.4.

  • Page 93: Flip Control

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 21.4.3. Flip Control Flip Control: The horizontal view of the image can be changed using the (mirror) function. The vertical view of the image can be changed using the (flip) function.

  • Page 94: En-V-R: Introduction

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 22. EN-V-R: Introduction This User's manual explains how to set up EN-V-R software in your PC. EN-V-R is the integrated system software for video security applications, which runs on Microsoft’s Windows-based computers. Some of major features of EN-V-Rare listed below.

  • Page 95: Requirements For Installation

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 23. Requirements for Installation 23.1. EN-V-R Versions EN-V-R is supplied to customers in different versions for each appropriate application. Users will need to choose the right versions for their needs. Support Version Register...

  • Page 96: Installing En-V-R

    You may encounter the following security warning. To continue installing the program, click Yes button. Then select language for installation. You will see the below window, then click Next button. The default location for installation is C:\Program Files\Vitek. It is recommended to install in this folder,...
  • Page 97 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN but if you want to change it to another location, click Browse button to choose a proper path. Now click Install button. You will see the progress of copying install files to the hard drive as shown below, once is completed click on NEXT.

  • Page 98: Uninstalling En-V-R

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Enter the proper Admin Password. The default password is root. The following screen will be displayed, click OK to continue. Now you will see EN-V-R Configurator window on the screen. To use EN-V-R Configurator program, refer toSection 27Starting EN-V-R Configuratoron page 100.

  • Page 99: Executing Uninstaller

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN If EN-V-R is not running, you can go ahead to the next section of uninstalling the program. If EN-V-R is active, place the mouse pointer on the EN-V-R icon, and click the right mouse button. You’ll see the pop- up menu.

  • Page 100: Components Of En-V-R Program

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN After all the install files are deleted, the following window will be displayed. Click OK button on the following window to complete the uninstalling. 26. Components of EN-V-R Program EN-V-R Service, EN-V-R Configurator, and EN-V-R Controller EN-V-R consists of three programs, ( 26.1.

  • Page 101: En-V-R System Tray Menu

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 26.4. EN-V-R System Tray Menu After you finish installing EN-V-R, you will find the EN-V-R icon on the system tray, which is located right, bottom part of the Windows desktop. Move the cursor over the icon, and right click. The following pop-up menu will show. You can open EN-V- R Configurator or EN-V-R Controller program from this menu, or you can go to the Home page of the EN- V-R program for live view or playback.
  • Page 102 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN You may encounter the security window as below. Click Yes button to continue. Once EN-V-R program starts, a log-in window will be displayed as below. Type in the proper admin password and click the OK button. The default admin / password is root.

  • Page 103: Quick Start Guide

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 28. Quick Start Guide EN-V-R is full-functioning Network Video Recorder software that runs on your PC. When started for the first time after EN-V-R is installed, there is no IP devices connected. To add a camera to the EN-V-R you must register the camera first. Then EN-V-R knows what IP devices they are, how to connect to them, and how to use them.

  • Page 104: Searching For Ip Devices

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Close Button Click this button to exit EN-V-R Configurator program. 28.2. Searching for IP Devices Click the first button on the Main Toolbar. You are now given a choice to register the IP devices by “search and register or manually”. To make it easy, choose Search and register IP-Device in this stage, and click Next button.

  • Page 105: Registering Ip Devices

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN The searching for IP devices is started. As the detected IP devices are being listed. Wait until searching is finished. If you click Cancel button in the middle of searching, the EN-V-R will retain only the IP devices found until that moment.
  • Page 106 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN The next window shows up and it’s for entering the network parameters and camera resolutions of the IP device you’ve chosen. You may need to enter the Login ID and Password here. Click Save to finish registering it.
  • Page 107 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Click Apply after registering one or more IP devices (cameras).The image below represents the configurator with multiple IP devices registered. After clicking Apply, the program will ask you to confirm it.Then click OK...

  • Page 108: Viewing Live Video

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN EN-V-R service is being stopped momentarily, and then it will start running again. 28.4. Viewing Live Video Once the network and cameras are set up, it is necessary to check if EN-V-R is functioning by viewing the live video from those devices.

  • Page 109: Recording Video

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN In some cases there is no response from the web browser, you may need to install the ActiveX manually by clickingManualDownload. When you see the following security warning, click Install. 28.5. Recording Video The essential feature of EN-V-R is recording the video from IP devices.
  • Page 110 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN You are able to change the setting by highlighting the drive then clicking the first icon of the sub-menu Toolbar. Use HDD (to use this HDD for recording) Possible Maximum Quota (the available of free space on your HDD)
  • Page 111 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Now you will see Configure Recording Condition window as below. The recording feature is already enabled and recording conditions are configured in default settings. In the example shown above, you can see that Camera 1 of Device 0 will record video only when motion is...
  • Page 112 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN detected. ClickOK to use this Recording Conditioned. To change recording condition high light camera 1 under condition list Select the type of Recording under Condition Mode If schedule recording is enabled, the schedule section will be available to configure...
  • Page 113 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Move the cursor over the icon, and right click. The following pop-up menu will show. You can open EN-V- R Configurator or EN-V-R Controller program from this menu, or you can go to the Home page of the EN- V-R program for live view or playback.

  • Page 114: Envi Smart Player

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 29. ENVI Smart Player 29.1. Introduction Smart Player is and ActiveX program for Internet Explorer Web browser, which enables users to search and play back recorded video in Network Video Servers and other devices with built-in recording capabilities.

  • Page 115: Installing And Uninstalling

    Installing Smart Player Connect to the Vitek Camera / Server / NVR on Internet Explorer, and click Player on the main page. If you're using Windows XP Service Pack 2 or later, it may asked you to install ActiveX click the massage bar than click on the Install ActiveX control…...
  • Page 116 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN The following window will appear. Click Next. The following window will be displayed. Click Install After installation is successfully completed, the following window will be displayed. Click Finish.

  • Page 117: Uninstalling Smart Player

    Click Uninstall and the following window will be shown. Click the Yes button. Live View & Play Back To live view and play back your cameras, go to Start menu, All Programs, Vitek Folder, Click on Smart NVR Controller, as shown below.
  • Page 118 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Look for icon on right side of taskbar as shown below (windows XP and windows 8 might show it different). Right click icon. The following window will display. Click on Open Smart NVR Controller.
  • Page 119 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Click on Go Home to view Smart Player Home Page Click on Live View The following screen will be display were you can configure your live view. Server Control Bar Allows you to view cameras / servers that are registered in the system. Toggle On/Off...
  • Page 120 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Group Control Bar In order to view video, cameras must be assigned to a group, in this section you create groups with cameras you want to view. Create Group In order to create a group in Group Control Bar, right click on Group, another window will appear then...
  • Page 121 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN The following window will be displayed. Type in the group name, check “Circulation” to allow sequencing, input dwell time for “Circulation” and click OK. A new group with the assigned name will be created as shown below.
  • Page 122 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Audio Control Bar Controls Speaker and Mic volume. When audio is available click on Connect and adjust speaker and mic levels, when done click Disconnect. Full/Normal Screen Select full screen as seen below, to return to normal press Escon your keyboard.
  • Page 123 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Group Circulation Start sequencing between groups.
  • Page 124 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Layout settings You can change the screen layout between 1,2,4, etc. Image in Original Size This allows for digital zoom.
  • Page 125 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Draw Image by Maintaining Aspect Ratio Maintains the aspect ratio of the camera Draw Image by Filling the Screen...
  • Page 126 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Enhanced Draw Mode On/Off. Enhance image for a better reproduction.

  • Page 127: Configuring& Viewing Player

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN About Smart Viewer You can see the status of the Smart Viewer 31. Configuring& Viewing Player From the Home Screen click on Player...

  • Page 128: Main Window View

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 31.1. Main Window View Note:The appearance of Smart Player window may vary depending on version and type of Vitek device you’re using. This user’s manual is based on general display screen. Server Control Allows you to view cameras / servers that are registered in the system.

  • Page 129: Connecting To Nvr Player

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN You can compose a new group by dragging&dropping servers, modules, and Group Control cameras into a group.Grouping provides search function of recorded video from BarB cameras. Playback Control Users can use this bar for functions such as forward/reverse play, previous frame, next frame, pause, stop, playback speed.
  • Page 130 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN The following window will be displayed. Type in the group name and click OK. A new group with the assigned name will be created as shown below. To add a camera to the new group, drag and drop from the server tree to the newly created group.

  • Page 131: Searching Video

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 32. Searching Video Make sure you have recorded video on the calendar (recorded video shows in red). There are three choices in searching recorded video - Day Search, Condition Search, and Data Search.

  • Page 132: Search Mode

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 32.2.1. Search Mode By clicking a date in red on the calendar, the time frame recorded is shown. 32.2.2. GO to Time Position To go to specific time click on “Go to time position” than input time and click search.

  • Page 133: Advanced Search Mode

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN video will start playing back right after searching is completed. 32.3.1. Advanced Search Mode In Advance Search Mode you can select which conditions to search from (Time, Event, etc) First, select Time checkbox, and choose the desired time frame (Start date and time ~ End date and time), and then click Add Condition button to add to Search Condition.

  • Page 134: Video Playback Controls

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Now that all the conditions have been configured, click Search button to start searching. Any video data which meets at least one of the conditions in Search Condition list will be shown as the results.

  • Page 135: Extra Features

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Back to Previous Frame Go to Next Frame Playback Speed Control Player Path Control (only for condition search mode) 34. Extra Features 34.1. Window Control Users canopen or close control windows. 34.2. Recording Period You can view the starting and ending date of a recorded channel.

  • Page 136: Backup

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 34.3. Backup There are two backup formats IDX and AVI. .IDX Default video file format used by Vitek .AVI Video file format supported by Microsoft Windows When the Backup button is clicked, the following window is displayed as below.

  • Page 137: Snapshot

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN After searching is finished, backup operation will start. When backup is completed, the following window will appear. Click OK button. Note: For AVI file backup, only one camera is allowed. For IDX backup, multiple cameras are allowed.

  • Page 138: Print

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN The below picture is a result of snapshot from the above window. 34.5. Print Choose the camera currently being played or paused, then click Print button. Then the image of the selected camera will be sent to your default printer.
  • Page 139 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN...

  • Page 140: En-V-R Configuration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 35. EN-V-R Configuration 35.1. System, Network Configuration General system and network properties of EN-V-R program can be set up in this section. To start, select System, Network Configuration from the menu list. Items...

  • Page 141: System, Network Configuration - Admin Password

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Items Descriptions System name Type in a System name. Click this button to apply the entered System Name. Cancel Click this button to discard the configured System name. 35.1.2. System, Network Configuration - Admin password To assign Password for the admin, click System, Network Configuration on the menu tree.

  • Page 142: System, Network Configuration - Http Port

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Items Descriptions Set Full Access for the user. Anyone can connect to the EN-V-R without Full Access authentication, and be allowed live view, audio, PTZ, playback. Set Limited Access for the user. Only the users with proper permission Limited Access to the camera can access it.

  • Page 143: Ipcctvdns Registration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Configure IP-CCTV-DNS Items Descriptions Service Set to use IP CCT DNS or not. DNS Server IP Vitek IP CCTV DNS address already entered. Go Server Directs to Vitek IP CCTV DNS server MAC address of EN-V-R already entered...
  • Page 144 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN on the NEXT button as shown below. Fill out the requested information as shown below and click on Apply. The following screen will confirm that your Membership has been completed successfully, that click...
  • Page 145 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN You will be brought back to the main page of the IPCCTVDNS website; in this case you need to Login with the information previously created. To register your first product, click on Product Registrationas shown below.
  • Page 146 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN A window will pop up confirming that your product has been registered successfully, click on OK. Product List You will be directed to the page where you will be able to see your recent camera registration.
  • Page 147 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Type in desired host name than click Apply. A window will pop up asking if you really want to apply the new configurations, to continue click A window will pop up confirming that the product information has been modified successfully, click...
  • Page 148 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Your camera with the new DDNS Host name will be displayed. Your camera is now registered and ready for use.

  • Page 149: Ip-Device Registration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 37. IP-Device Registration You will see how to manage IP devices in this section, which includes registering, modifying, and deleting IP devices. To start managing IP devices, select IP-Device, Camera Management from the menu list.
  • Page 150 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Item Description IP-Device ID Select the IP-Device ID to register. Select the Vendor name of the IP-Device to register. Click the pull-down list, and choose a proper vendor name from the list. Vendor Select the total number of channels (streams) the IP device has.

  • Page 151: Ip-Deviceregistration (Automatic)

    Check this box if the information from IP-Device needs to be acquired. from IP-Device Select the VS Module ID. Enter 0 for non-Vitek IP devices. Vitek products VS Module ID can be set to 0 to 15, and default is 0.
  • Page 152 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Items Descriptions This list shows the IP devices found during the scan process. If you need IP-Device list to select multiple IP devices at the same time, drag your mouse over the devices or keep pressing CTRL or SHIFT key while clicking the IP devices.

  • Page 153: Ip-Devicemodification

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Items Descriptions Descriptions of the image resolution modes in the IP-Device Resolution Description list.(R1, R2, R3, R4, R5, R6, R7, R8, R9, R10) Descriptions of the PTZ numbers in the IP-Device list. PTZ Install Description...
  • Page 154 (not allowed to modify) Getting Information from (not allowed to modify) IP-Device Select the VS Module ID. Enter 0 for non-Vitek IP devices. Vitek VS Module ID products can be set to 0 to 15, and default is 0. HTTP Port Enter the HTTP Port to use with the IP-Device.

  • Page 155: Ip-Devicedeletion

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Cancel Click this button to discard the changed values. 37.3. IP-DeviceDeletion To delete a registered IP-Device, click IP-Device, Camera Management on the menu tree in the left pane. Then select an IP device to be deleted from the list. Click Remove IP-Device registration 37.4.

  • Page 156: Configure Camera Name And Information

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Camera Information Configure Information of the selected camera. Resolution and Quality Choose the resolution and quality of cameras. Recording Conditions Set up recording conditions. Alarm and Map service settings Configure Alarm and Map service functions.

  • Page 157: Camera Resolution, Quality

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN The below image will be display, enter name (F), then click Apply to camera(H), then OK. Items Descriptions A,B,C,D Camera Selection Select one or more cameras for name assignment by clicking buttons. Unselect All Clear the device list which shows the selected cameras.

  • Page 158: Configure Camera Recording Condition

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Items Descriptions A,B,C,D Camera Selection Select one or more cameras by clicking buttons. Unselect All Clear the device list which shows the selected cameras. Resolution Select the video resolution. Quality Select the video quality.
  • Page 159 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN The below image is where you adjust the recording parameters. Item Description A,B,C,D Camera Selection Select one or more cameras by clicking buttons. Unselect All Clear the device list which shows the selected cameras.
  • Page 160 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Pre Alarm Images Select pre-alarm images. Pre Alarm Speed Select pre-alarm speed. Post Alarm Images Select post-alarm images. Post Alarm Speed Select post-alarm speed Click this button to confirm the change and exit the window.

  • Page 161: Alarm, Event Configuration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 37.5.4. Alarm, Event Configuration To configure the Alarm and Event features, select a camera to configure, and then click Configure alarm, map service Item Description...

  • Page 162: User Management

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN A,B,C,D Camera Selection Select one or more cameras by clicking buttons. Unselect All Clear the device list which shows the selected cameras. Alarm Service Setup Put check marks on alarm types to use.

  • Page 163: User Registration

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN 37.6.1. User Registration To register a new user, click the 1'st button on the tool bar in the sub-menu toolbar. Items Descriptions User ID Enter a new User ID to register. Password Enter the Password for the new user.

  • Page 164: Userdeletion

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN To modify a user's information, select the users name than click the second button on the submenutoolbar. The User Registration window will come up on the screen, make the necessary changes and click OK .

  • Page 165: Disk Mode Change

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN device list. The following window will be displayed. Item Description Use HDD Decide whether this HDD is to be used. Possible Maximum Quota Display Possible maximum quota on this HDD. Possible Minimum Quota Display Possible minimum quota on this HDD.
  • Page 166 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Items Descriptions Disk Circulation Setup Configure disk circulation type. Disk Usage Report Setup Configure email address for reporting. Click the Disk Circulation in the list. The following window will be displayed. Item Description Use circulation Select this if disk circulation will be used.

  • Page 167: Utilities

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Item Description Use to report HDD usage Choose whether to Enable or Disable the report service. When disk circulation is not used, select the HDD size when it will be Report HDD space reported by email.

  • Page 168: About Program

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN email account for mail service Item Description Service Decide whether to report HDD usage by email or not. SMTP server Enter the address of SMTP server for sending email. Authentication Decide whether to use Authentication.

  • Page 169: Using En-V-R Controller

    Click this button to close the Window. 38. Using EN-V-R Controller To open EN-V-R controller,click Start >All Programs>Vitek>SMART NVR Controller. Smart NRV controller will be on the lower right part of the system tray. Then right click the icon a sub- window will display, click on Open Smart NVR Controller.

  • Page 170: Connecting To En-V-R

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN Items Descriptions Current Service State Shows whether EN-V-R Service is running or stopped. Start Service Click this button to start EN-V-R Service when it’s stopped. Stop Service Click this button to stop EN-V-R Service when it’s running.

  • Page 171: Pc Without En-V-R

    ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN After you successfully connecting to the EN-V-R homepage, you will see the following window. Items Descriptions Home Go to EN-V-R’s homepage. Click this button to execute Live View program. You can use various...
  • Page 172 ENVI Series: VTD-13FN / VTD-13VN / VTD-20VN In case that the HTTP port for EN-V-R is not 80 (default), the port number should be entered  together with the IP address. (the example below assumes HTTP port of 7777)
  • Page 173 VOID in the event of alteration, defacement, or removal of serial numbers. Within the first 6 months of purchase, VITEK will replace or credit any defective product at the request of the customer (subject to availability) with a new product that equals or exceeds the performance of the original product purchased.
  • Page 174 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70 VERSION 3 03/2013...

This manual is also suitable for:

Vtd-13vnVtd-20vn

Table of Contents
