NordicTrack C 1750 Pro Treadmill Manual page 9

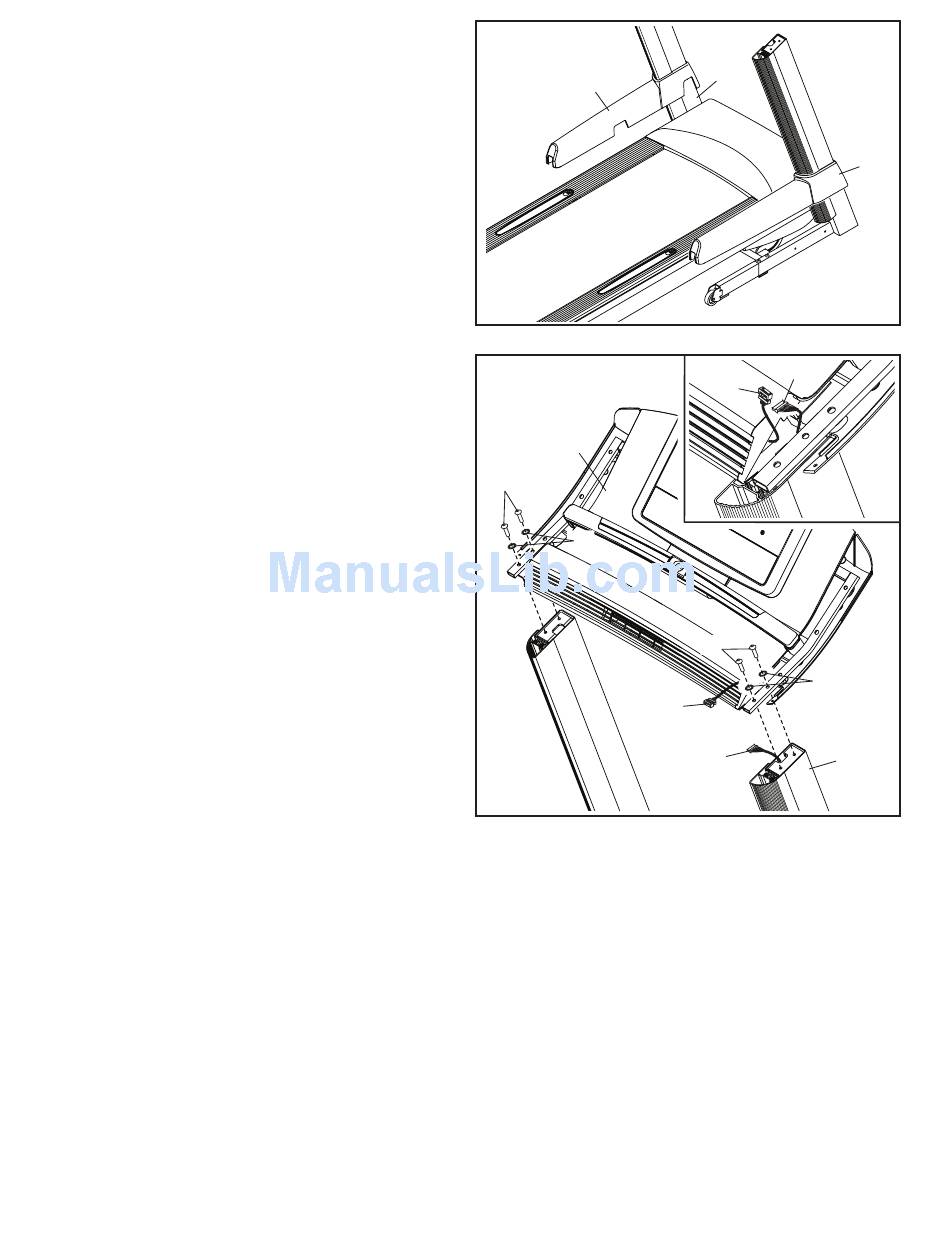

2. Identify the Left and Right Base Covers (88, 92).
Slide the Left Base Cover (88) onto the left
Upright (79). Slide the Right Base Cover (92)
onto the right Upright.
Then, press the Left and Right Base Covers (88,
92) downward until they snap into place.
3. Remove the tie securing the Upright Wire (84) to
the right Upright (79).
With the help of a second person, hold the con-
sole assembly (A) near the Upright (79).
Attach the console assembly (A) with four 5/16"
x 1" Screws (2) and four 5/16" Star Washers (3).
See the inset drawing. Be careful not to pinch
the wires (B, 84). Start all four Screws, and
then tighten them.
2
88
3
A
2
3
9
79
84
B
2
3
B
84 79
92
