www.nordictrack.com

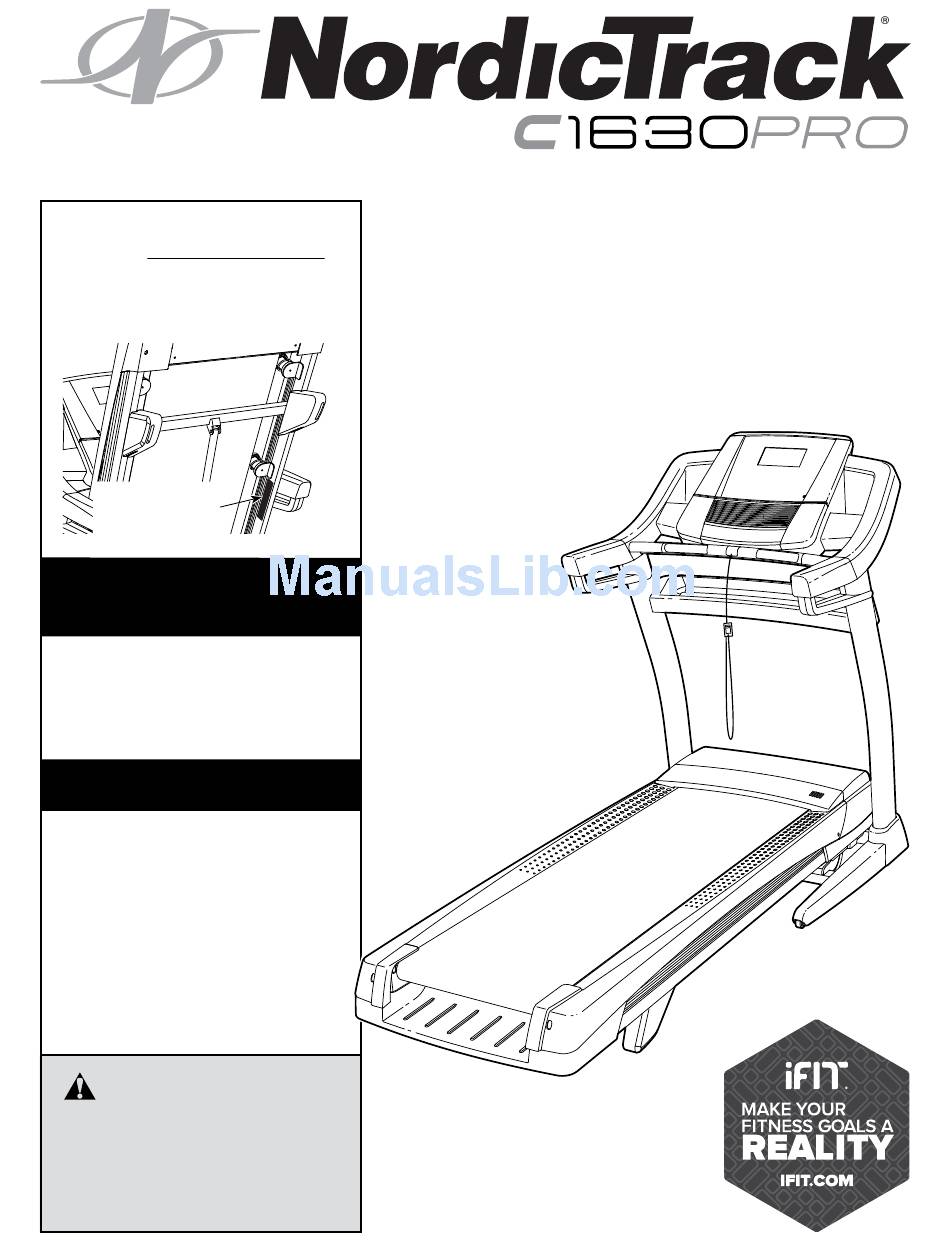

USER'S MANUAL
Model No. NTL12212.1
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today, go
to www.nordictrackservice.com/
registration.
CUSTOMER CARE
For service at any time, go to
www.nordictrackservice.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C1630PRO and is the answer not in the manual?

Questions and answers

Related Manuals for NordicTrack C1630PRO

Summary of Contents for NordicTrack C1630PRO

  • Page 1 USER’S MANUAL Model No. NTL12212.1 Serial No. Write the serial number in the space above for reference. Serial Number Decal ACTIVATE YOUR WARRANTY To register your product and activate your warranty today, go to www.nordictrackservice.com/ registration. CUSTOMER CARE For service at any time, go to www.nordictrackservice.com.

  • Page 2: Table Of Contents

    Apply the decal in the location shown. Note: The decals may not be shown at actual size. 305284 NORDICTRACK is a registered trademark of ICON Health & Fitness, Inc.

  • Page 3: Important Precautions

    18. To purchase a surge suppressor, see your local 4. The treadmill is intended for home use only. NORDICTRACK dealer, call the telephone Do not use the treadmill in any commercial, number on the front cover of this manual, or rental, or institutional setting.
  • Page 4 20. The heart rate monitor is not a medical 24. Do not change the incline of the treadmill by device. Various factors, including the user’s placing objects under the treadmill. movement, may affect the accuracy of heart rate readings. The heart rate monitor is 25.
  • Page 6 STANDARD SERVICE PLANS...

  • Page 7: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the revolutionary reading this manual, please see the front cover of this NORDICTRACK C 1630 PRO treadmill. The C 1630 manual. To help us assist you, please note the product ® PRO treadmill offers an impressive selection of fea- model number and serial number before contacting us.

  • Page 8: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 9: Assembly

    ASSEMBLY • Assembly requires two persons. • Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.” • Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing •...
  • Page 10 3. Identify the Left and Right Upright Covers (82, 83). Slide the Left Upright Cover (82) onto the left Upright (89). Slide the Right Upright Cover (83) onto the right Upright. Then, press the Left and Right Upright Covers (82, 83) downward until they snap into place. 4.
  • Page 11 5. Attach the right handrail assembly (C) to the right Upright (89) with two 5/16" x 2 3/4" Screws (28) and two 5/16" Star Washers (11); do not tighten the Screws yet. Remove the two indicated screws (B) from the right handrail assembly (C), and discard the screws.
  • Page 12 7. Identify the Right and Left Trays (27, 36). Attach the Trays (36, 27) to the Console Base (64) with eight #8 x 1/2" Screws (1). Note: It may be easier to start the two inside Screws and then slide the Trays into place before tightening the other six Screws.
  • Page 13 9. With the help of a second person, hold the con- sole assembly near the left Handrail (86) and the Console right Handrail (not shown). Assembly Connect the ground wire on the console assem- bly to the Console Ground Wire (105). Next, connect the console wire to the Upright Wire (81).
  • Page 14 11. Attach the Pulse Crossbar (93) to the console assembly with six #8 x 1/2" Screws (1); start all Console six Screws, and then tighten them. Assembly Then, firmly tighten the four 5/16" x 3/4" Screws (4). 12. Check the gaps between the two handrail assemblies (A, C) and the console assembly.
  • Page 15 13. Tighten a #8 x 3/4" Screw (2) into the Left Outside Upright Cover (87) and into the bottom of the left handrail assembly (A); do not over- tighten the Screw. Press the Left Inside Upright Cover (88) against the Left Outside Upright Cover (87) until they snap together.
  • Page 16 15. Raise the Frame (56) to the position shown. Have a second person hold the Frame until step 16 is completed. Next, orient the Storage Latch (53) so that the large barrel and the latch knob are in the posi- tions shown.

  • Page 17: The Chest Heart Rate Monitor

    THE CHEST HEART RATE MONITOR HOW TO PUT ON THE HEART RATE MONITOR • Do not expose the heart rate monitor to direct sun- light for extended periods of time; do not expose it to The heart rate temperatures above 122° F (50° C) or below 14° F monitor consists of (-10°...

  • Page 18: Operation And Adjustment

    OPERATION AND ADJUSTMENT HOW TO CONNECT THE POWER CORD nominal 120-volt circuit capable of carrying 15 or more amps. To avoid overloading the circuit, do Use a Surge Suppressor not plug other electrical devices, except for low- power devices such as cell phone chargers, into Your treadmill, like other electronic equipment, can be the surge suppressor or into an outlet on the same circuit.
  • Page 19 CONSOLE DIAGRAM FEATURES OF THE CONSOLE You can even listen to your favorite workout music or audio books with the console’s sound system while you The treadmill console offers an impressive array of exercise. features designed to make your workouts more effec- To turn on the power, see page 20.
  • Page 20 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before you turn on the power. If you do See HOW TO TURN ON THE POWER at the left.
  • Page 21 4. Change the incline of the treadmill as desired. The Calorie tab will show the approximate amount of calories you have burned. The height of each To change the incline of the treadmill, press the segment represents the amount of calories burned Incline increase or decrease button or one of the during that segment.
  • Page 22 6. Measure your heart rate if desired. Press the fan buttons repeatedly to select Note: If you use the handgrip heart rate moni- the desired fan speed tor and the chest heart rate monitor at the same or to turn off the fan. time, the console will not display your heart rate accurately.
  • Page 23 HOW TO USE AN ONBOARD WORKOUT The workout will continue in this way until the last segment of the profile flashes in the display and the 1. Insert the key into the console. last segment ends. The walking belt will then slow to a stop.
  • Page 24 HOW TO USE A SET-A-GOAL WORKOUT HOW TO USE AN IFIT WORKOUT 1. Insert the key into the console. Note: To use an iFit workout, the console must be con- nected to a wireless network (see HOW TO CHANGE See HOW TO TURN ON THE POWER on page 20. CONSOLE SETTINGS on page 26).
  • Page 25 5. Start the workout. For more information about the iFit mode, go to www.iFit.com. See step 3 on page 23. IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the During some workouts, the voice of a personal trainer will guide you through your workout.
  • Page 26 HOW TO CHANGE CONSOLE SETTINGS Default Menu—The default menu will appear when you insert the key into the console or when you The console features a settings mode that allows you press the Home button. Press the Enter button to view usage information, to personalize console set- repeatedly to select the manual main screen or the tings, and to set up and manage a wireless network iFit screen as the default menu.
  • Page 27 Clear WiFi Setting—To erase the console’s Press the up, down, left, and right buttons to high- wireless network settings and have it forget the light the desired letter or number. Then, press the currently selected wireless network, follow the Enter button to select the letter, number, or symbol. instructions in the matrix.
  • Page 28 6. Use WiFi–Advanced to set up a wireless Your browser will load a web page. If the web page connection. does not appear, double-check the IP address and the previous instructions of this step. Follow the This option will allow you to set up a wireless instructions on the web page to connect the tread- network connection using your computer, smart mill to your wireless network.

  • Page 29: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to zero percent before you fold the treadmill. left.

  • Page 30: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by follow- c. Remove the key from the console, and then ing the simple steps below. Find the symptom that reinsert it. applies, and follow the steps listed. If further assis- tance is needed, see the front cover of this manual. d.
  • Page 31 Locate the Reed Switch (52) and the Magnet (50) b. If the walking belt is overtightened, treadmill per- on the left side of the Pulley (49). Turn the Pulley formance may decrease and the walking belt may until the Magnet is aligned with the Reed Switch. become damaged.
  • Page 32 SYMPTOM: The walking belt is off-center or slips b. If the walking belt slips when walked on, first when walked on remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller a. If the walking belt is off-center, first remove the screws clockwise, 1/4 of a turn.

  • Page 33: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.

  • Page 34: Part List

    PART LIST Model No. NTL12212.1 R0614A Key No. Qty. Description Key No. Qty. Description #8 x 1/2" Screw Reed Switch Clip #8 x 3/4" Screw Reed Switch 3/8" x 2" Bolt Storage Latch 5/16" x 3/4" Screw Drive Motor #10 Star Washer Motor Belt 3/8"...
  • Page 35 Key No. Qty. Description Key No. Qty. Description Incline Stop Bracket Tray Bracket Console Clamp Tray Console Chest Strap Console Frame Sensor Console Ground Wire – User’s Manual Right Handrail Grip Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual.

  • Page 36: Exploded Drawing

    EXPLODED DRAWING A Model No. NTL12212.1 R0614A...
  • Page 37 EXPLODED DRAWING B Model No. NTL12212.1 R0614A...
  • Page 38 EXPLODED DRAWING C Model No. NTL12212.1 R0614A...
  • Page 39 EXPLODED DRAWING D Model No. NTL12212.1 R0614A...

  • Page 40: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro- vide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
