NordicTrack C 1750 Pro Treadmill Manual page 11

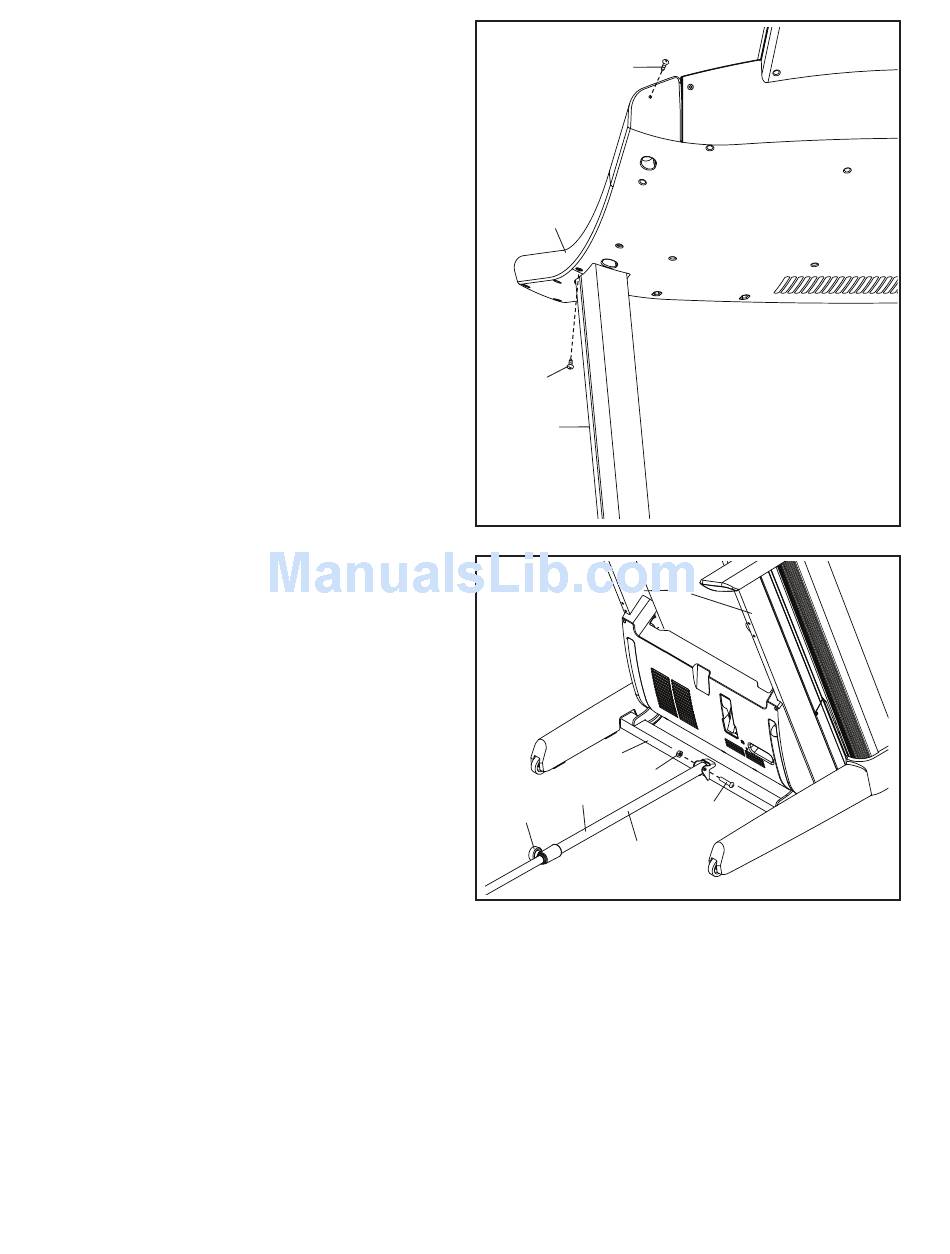

6. Tighten a #8 x 1/2" Screw (10) and a #8 x 3/4"
Screw (5) into the console assembly and the
right handrail assembly (C) in the locations
shown. Do not overtighten the Screws.
Tighten two screws into the console assem-
bly and the left handrail assembly (not
shown) in the same way.
Slide the Right Upright Cover (82) and the Left
Upright Cover (not shown) upward until they
stop.
7. Raise the Frame (55) to the position shown.
Have a second person hold the Frame until
step 8 is completed.
Orient the Storage Latch (58) so that the large
barrel and the latch knob are in the positions
shown.
Attach the lower end of the Storage Latch (58)
to the Upright (79) with a 3/8" x 2" Bolt (6) and a
3/8" Nut (7).
6
5
C
10
82
7
79
Latch
58
Knob
Large
Barrel
11
55
7
6
