q
Main Menu
Use this menu to view a live luminance histogram of the currently displayed camera.
Luminance Histogram
A Luminance Histogram is a graphical representation of how many times each gray-level value occurs in
an image.
Use this feature to analyze and optimize the video input signal.

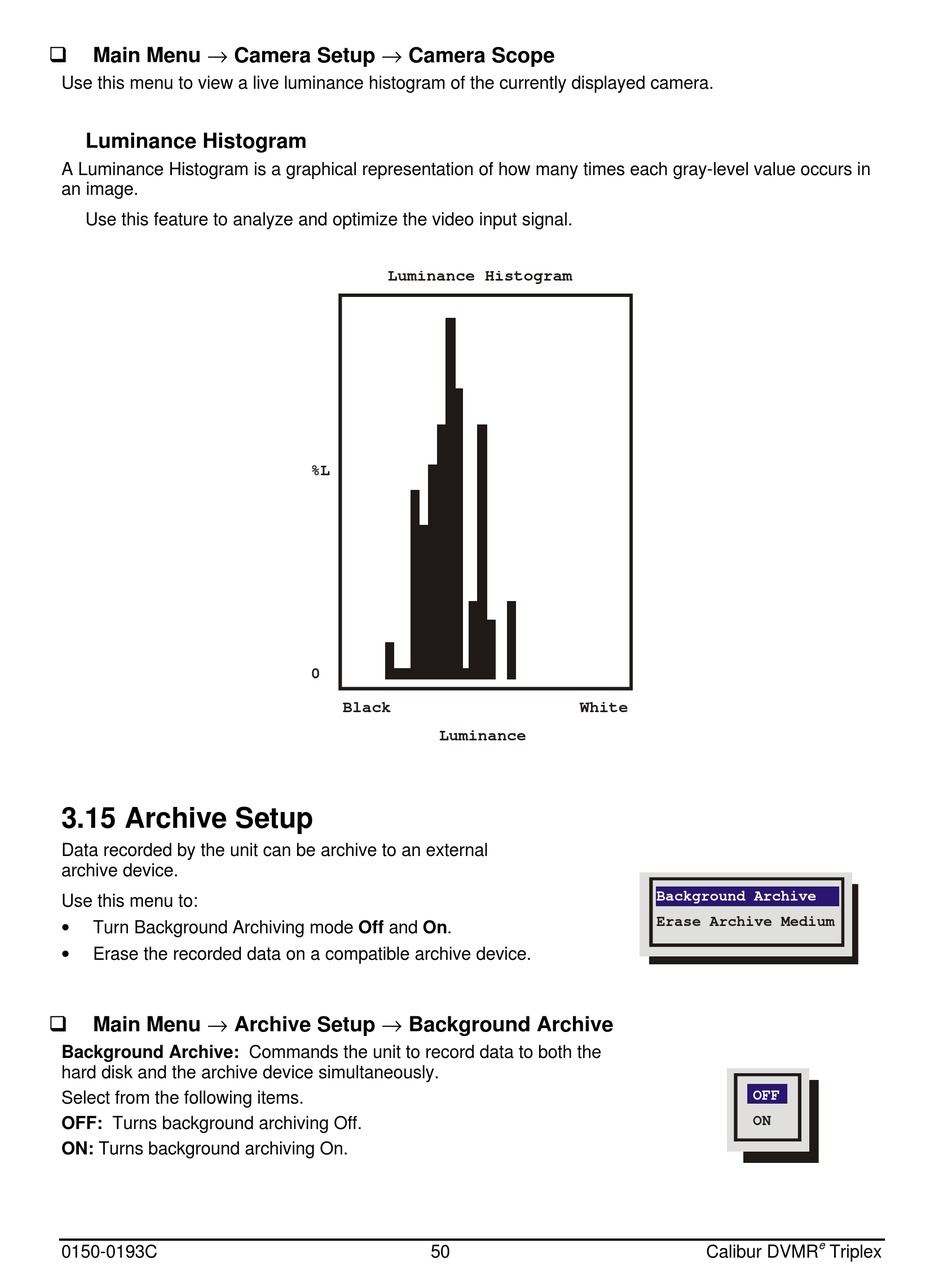

3.15 Archive Setup

Data recorded by the unit can be archive to an external
archive device.
Use this menu to:
Turn Background Archiving mode Off and On.
Erase the recorded data on a compatible archive device.
q
Main Menu
Background Archive: Commands the unit to record data to both the
hard disk and the archive device simultaneously.
Select from the following items.
OFF: Turns background archiving Off.
ON: Turns background archiving On.
0150-0193C
Camera Setup Camera Scope
Luminance Histogram
%L
0
Black
Archive Setup Background Archive
White
Luminance
50
Background Archive
Erase Archive Medium
OFF
ON
e
Calibur DVMR Triplex
