5.1 Disk Analysis Screen

Begin by pressing the Search button. The Disk Analysis Screen will appear.

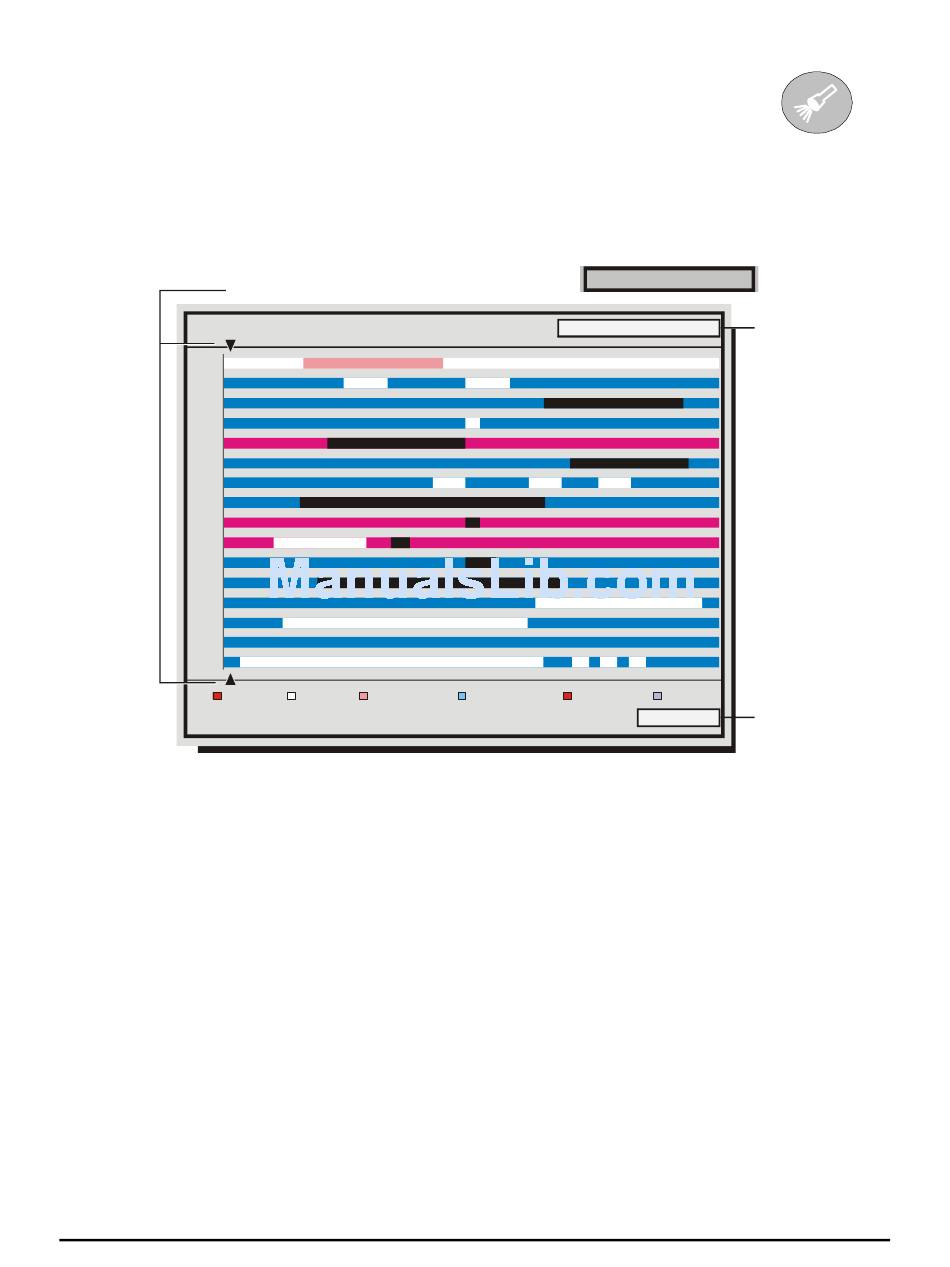

This screen shows a graphical representation of the recorded video stored on the
internal hard disk.
Arrow Cursors
Disk Analysis Screen
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Alarm
Hit SEARCH again to enter Advanced Search
Rotating the Jog moves the two arrow cursors across the representation of the recorded video. As the
cursors move across the screen the corresponding disk time is indicated in the upper right of the screen.
The video representations are color-coded by category. Rotating the Shuttle expands (Zooms) the
display. The Lowest level (most detail) is indicated on screen with an (L). Pressing the Enter button will
start Playback from the cursor location.

5.2 Motion Search

Pressing the Search button a second time will bring up the Motion Search menu. This menu performs a
motion search with six preset time parameters and a custom search option. Rotate the Jog to navigate
and the Shuttle to select a specific parameter. Selecting the Custom option and pressing the Enter
button starts playback and brings up another window with Start/Stop, Time/Date options. These options
provide the parameters to focus the search to a specific time period.
