External Alarm Acknowledge Input
Connect a switch or similar device to ground this pin in order
to acknowledge an alarm condition, and silence associated
buzzers and relays. Connect from pin 23 to either pin 18, 19,
or 20 (ground pins).
NOTE
All specifications subject to change without notice. GE-Interlogix believes all specifications
to be correct at time of printing, but no liability is assumed for omissions or errors.

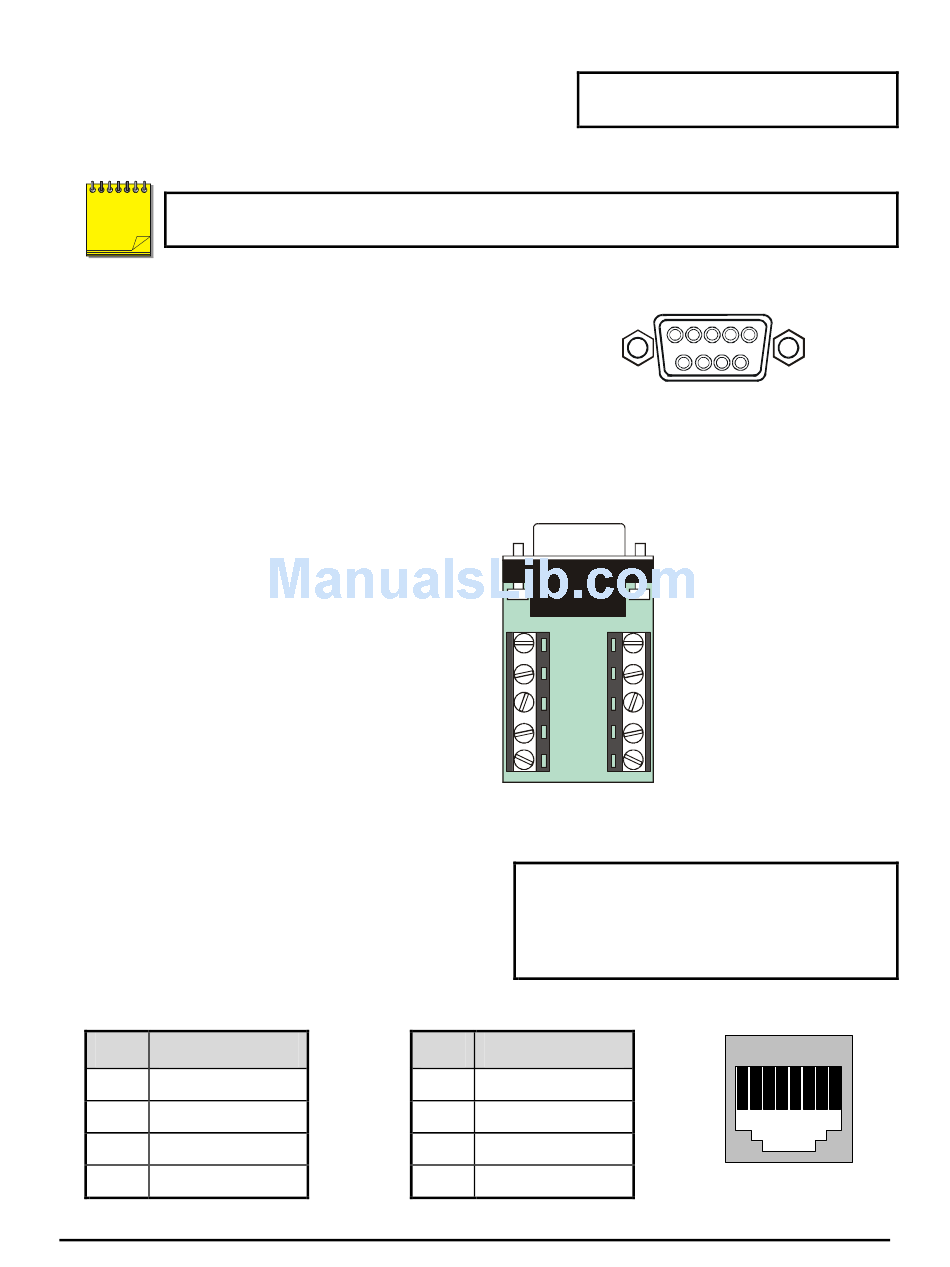

AUX Port
The back panel of the unit is equipped with an Aux Port
(DB-9 style connector).
Do not attempt to wire directly to the DB-9
connector on the back panel.
Connect the Accessory PCB (supplied with the audio equipped models) to the AUX port to access the
Audio features. Wire the audio input and output to the Accessory PCB per the pin out specifications
shown below.
RS485 Connector
Shields are grounded at one end, preferably at the
e
DVMR Triplex.
See section 3.16 for information about configuring
the RS485 network address settings in the menu
system.
RJ-45 Pin Configuration For RS485 Port
Pin Use
1 Ground (Shield)
2 Not Connected
3 Network +VE
4 Not Connected
0150-0193C
Pin 1: Not Used.
Pin 2: Audio Out.
Pin 3: Ground.
Pin 4: Audio In.
Pin 5: Ground.
Pin 6: Not Used.
Pin 7: Ground.
Pin 8: Not Used.
Pin 9: Ground.
GND: Ground.
Pin
5
6
7
8
12
External Device: Normally Open
Zero potential relay contact.
1
6
DB-9 Connector on Back Panel
1 6
2 7
3 8
4 9
5 GND
Accessory PCB
Wire Type: #24 AWG, twisted pair with shield
(2-wire)
Connector Type: RJ-45
Max. Cable Length: 3200 feet / 1000 meters
Use
Not Connected
Network -VE
Ground (Shield)
Not Connected
5
9
1 2 3 4 5 6 7 8
RJ-45 socket on

back panel.

e
Calibur DVMR Triplex
