GE Interlogix TRIPLEX 0150-0193C User Manual page 11

See section 3.11 for information about configuring the contacts as Normally Open or Normally Closed
in the menu system.
Normally Open, Zero Potential Relay Contact: Configure in menu as Normally Open.
Normally Closed, Zero Potential Relay Contact: Configure in menu as Normally Closed
TTL Active High: Configure in menu as Normally Closed.
TTL Active Low: Configure in menu as Normally Open.
Open Collector Active On: Configure in menu as Normally Open.
Open Collector Active Off: Configure in menu as Normally Closed.
DVMRe Triplex DB25 Connector
Alarm Input No. 1
Alarm Input No. 2 - 15
Alarm Input No. 16

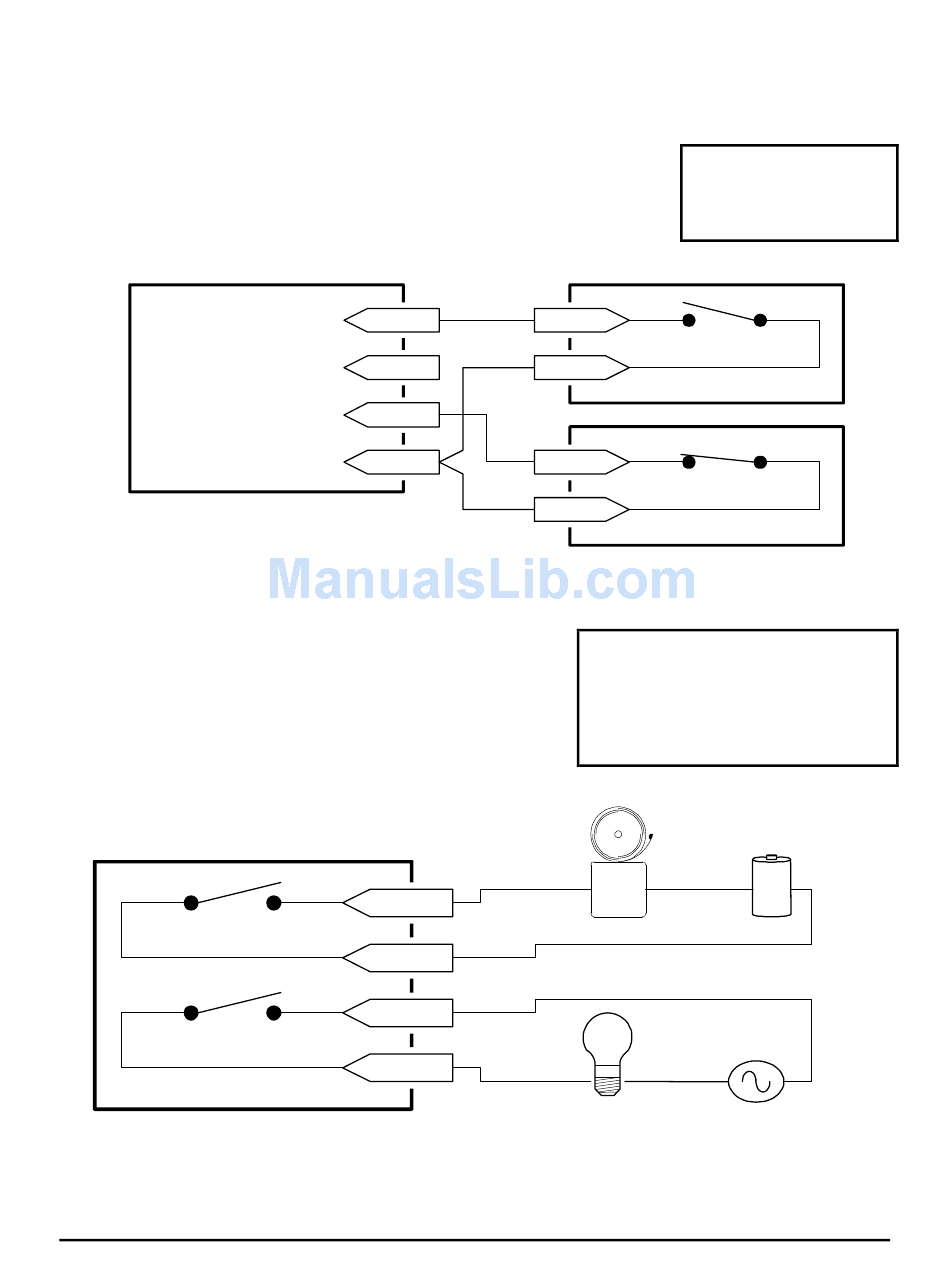

Typical wiring for Alarm #1 as Normally
Open and Alarm #16 as Normally Closed.
Alarm Relay Output
The alarm relay output is activated when an alarm condition
exists. The alarm output is only active for the duration of the
alarm.
Alarm relays can be programmed in the menu system to
respond to macros, and video loss. See section 3.11 for
information about configuring the alarms in the menu system.
Typical wiring for Alarm Relays. Relays may be
programmed Normally Open or Normally Closed.
Output Relay No. 1
Output Relay No. 2
DVMRe Triplex DB25 Connector
0150-0193C
pin 1
pins 2-15
pin 16
pins 18-20
Ground
Normally Open and Normally Closed Connections
pin 17
pin 21
pin 22
pin 25
Refer to each alarm device's manual for specific wiring details.
Output: Zero potential relay contacts,
programmable in menu system as
Normally Open or Normally Closed.
Voltage: 30V (Max)
Current: 500mA (Max)
Alarm
Device
Controlled
Device
11
High: 5V (12V Tolerant)
Low: Ground
Inputs: 1 per channel.
Normally Open
(Closes During Alarm)
Typical Alarm Device
Normally Closed
(Opens During Alarm)
Typical Alarm Device
Power
Source
Power
Source
Calibur DVMR
e
Triplex
