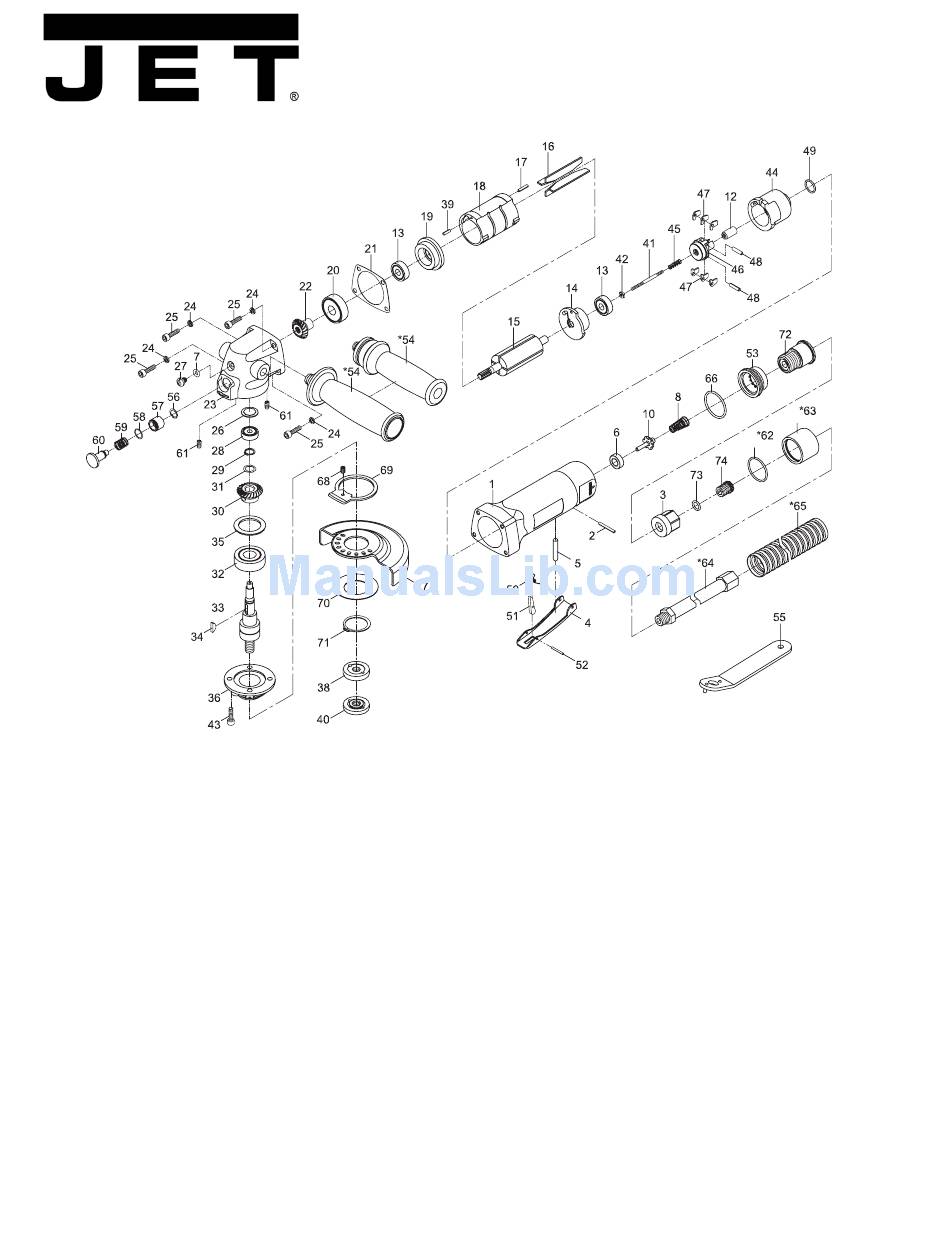

Jet AG-4S Parts List

Index Part No Description
1 ........AG4S-01........ Motor Housing .......................1
2 ........SM-30102...... Spring Pin (3x24) ...................1
3 ........JSM5130-03 .. Air Inlet...................................1
4 ........JSM5130-04 .. Throttle Lever ......................1
5 ........AG4S-05........ Pin ........................................1
6 ........JSM7572-145 Rubber Spacer.......................1
7 ........SM-61907...... O-Ring (4.9x2.2) ....................1
8 ........73108 ............ Sprng .....................................1
10 ......JSM7572-146 Valve Stem.............................1
12 ......SM-61912...... Plunger...................................1
13 ......BB-608ZZ ...... Ball Bearing (608ZZ)..............2
14 ......AG4S-14........ Rear Plate ..............................1
15 ......SM-61915...... Rotor ......................................1
16 ......SM-61916...... Rotor Blade ............................4
17 ......AG4S-17........ Spring Pin (2.5x12) ................1
WMH TOOL GROUP, Inc.
2420 Vantage Drive
Elgin, Illinois 60124
Ph.: 800-274-6848
www.wmhtoolgroup.com
AG-4S 4" Angle Grinder
Stock No. 526340
Qty Index Part No
18 ..... AG4S-18........Cylinder ................................. 1
19 ..... AG4S-19........Front End Plate ..................... 1
20 ..... BB-6201Z ......Ball Bearing (6201Z) ............ 1
21 ..... AG4S-21........Gasket................................... 1
22 ..... SM-61922 ......Bevel Housing ...................... 1
23 ..... AG4S-23........Gear Housing........................ 1
24 ..... 40344.............Spring Washer (M5).............. 4
25 ..... AG4S-25........Screw (M5x18)...................... 4
Parts List continued on back
To order parts, call our service department at 800-274-6848
between 7:30 a.m. and 5:30 p.m. (CST), Monday through Friday.
Having the Model Number and Serial Number will allow us to
serve you quickly and accurately.
Description
Part No. M-526340
Revision B1 01/08
