4 Eyepiece and
monitor version
Before connecting the components, first read
the enclosed manual from Kappa entitled
"Color TV Camera for Microscopy and 3D
Images";
chapter 5, "Safety regulations", should be
observed in particular.

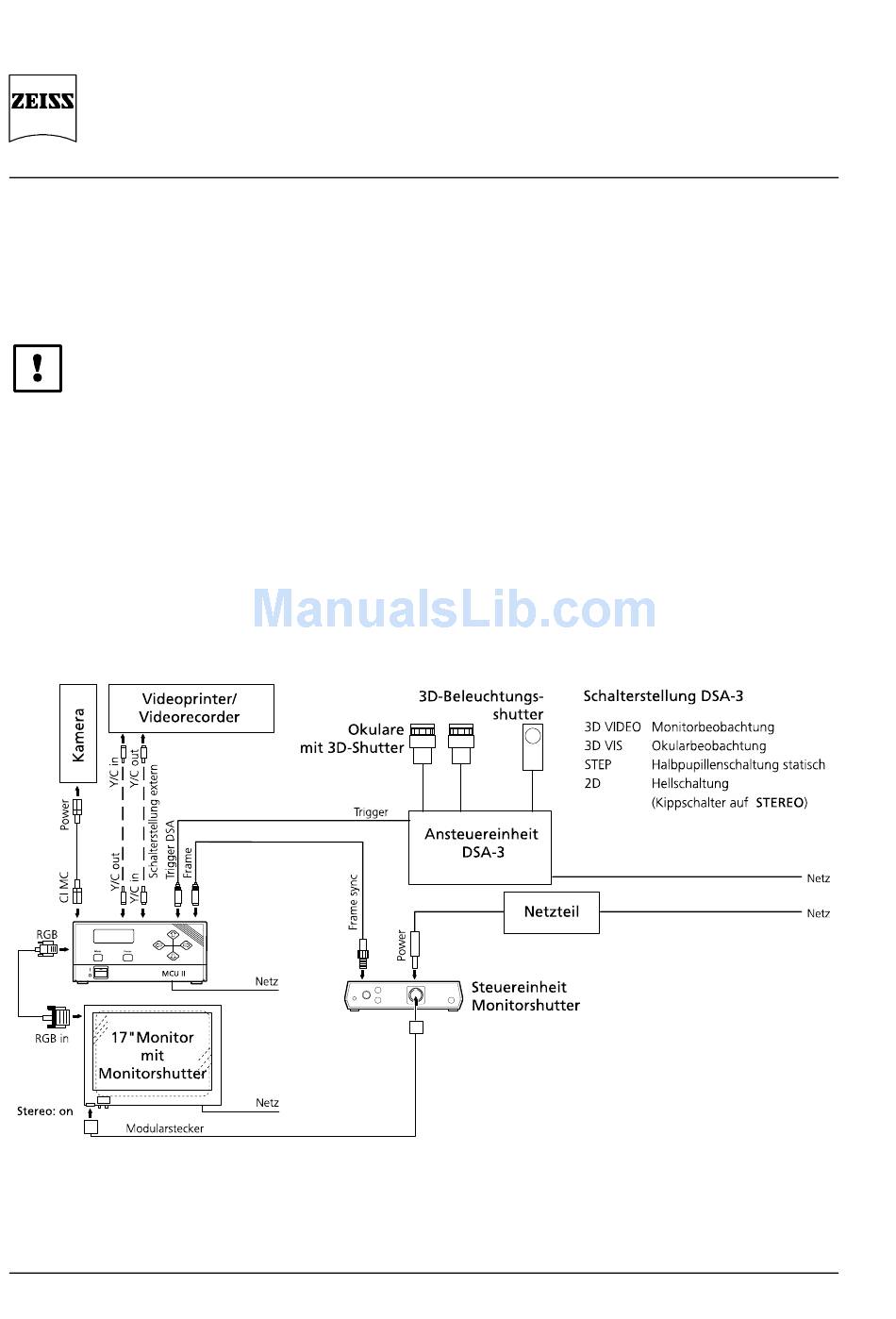

Fig. 15 Wiring diagram for eyepiece and monitor version
30

Eyepiece and monitor version

4.1

Set up the microscope in accordance with
the operating instructions of the
Axiovert 100/135/135 M

Equip the microscope with LD condenser
0.55 Ph1, Ph2, Ph3, DIC, DIC

Set up the eyepiece version:
see page 18

Set up the monitor version:
see page 24

Connect eyepiece and monitor version in
accordance with the wiring diagram
Fig. 15
Axiovert 100/135/135 M

Conversion and adjustment

B 40-022-4 e
3D Microscopy
09/98
