Maintenance and care

2.3.1 General

Never expose the components for 3D
microscopy to inadmissible climatic conditions
(high humidity and temperature) for longer
periods of time.
The components must be protected from dust
and humidity and covered with the dust cover
after every use.
2.3.2 Cleaning of optical
components
The 3D shutter in the eyepieces and in the 3D
illumination shutter are equipped with a
polarizing foil.
The polarizing foils must not be cleaned with
solvents.
The foils are sensitive to scratching.

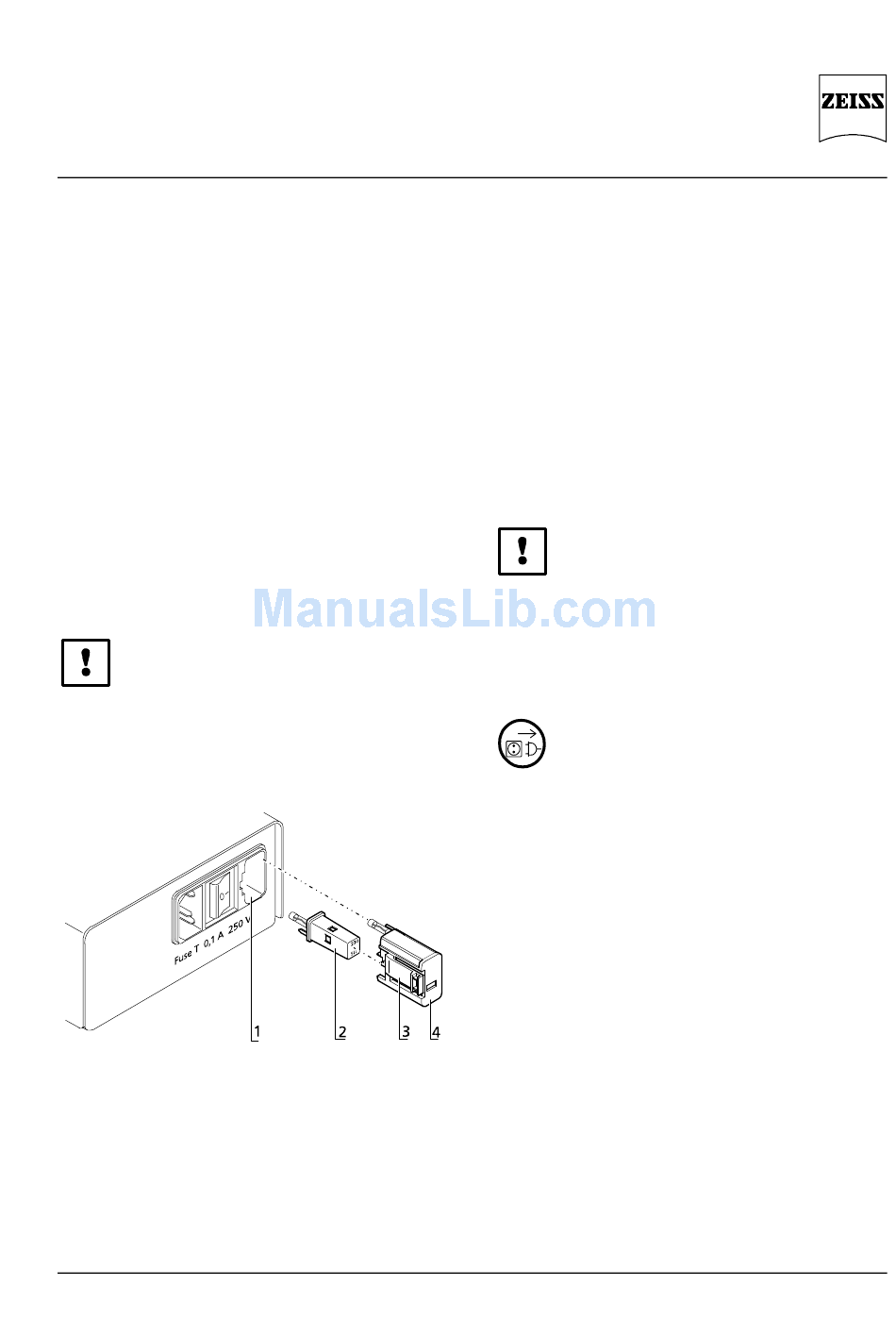

1 Fuse compartment
2 Voltage selector
3 Holding unit
4 Window
Changing the voltage selector on the rear of the
3D-CONTROL DSA-3 unit
B 40-022-4 e 07/98
Maintenance and care
Clean the polarizing foils as follows:

Remove dust using a rubber blower

Use a soft optics cleaning cloth

Use a natural hair brush degreased in alcohol
and dried before.
The glass plate of the window of the CCD
camera can be cleaned using the cleaning buds
supplied.

2.3.3 Change of voltage and fuses

Prior to connection to the line, check whether
the voltage set on the selector at the rear of the
3D-CONTROL DAS-3 unit complies with the line
voltage; it may be necessary to change from
230 V to 115 V.

Pull the power plug before changing the
voltage or the fuses

Use a small screwdriver to turn back the
clamping piece of the fuse holder at the rear
of the 3D-CONTROL DAS-3 unit;
lift the fuse holder out of the fuse
department

Remove the fuses

Pull voltage selector out of its holder

Turn voltage selector around 180° and insert
it back in its holder:
the new voltage is visible in the window

Insert the fuses listed under "Technical Data"

Insert fuse holder back in the fuse
department until click-stop.
