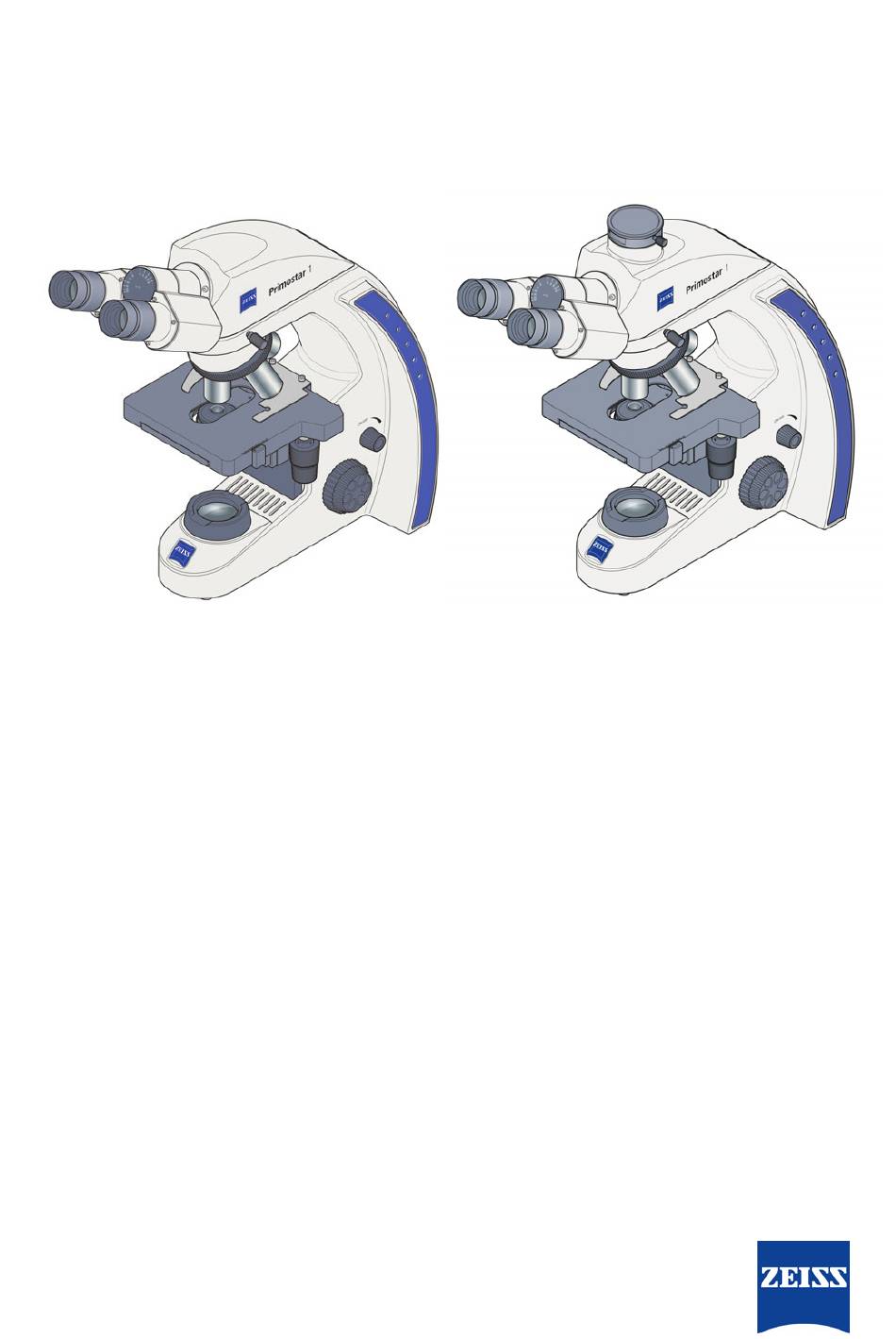

- Page 1 Instruction Manual ZEISS Primostar 1 Upright Microscope for Education and Routine...
- Page 2 Effective from: 08/2024 © 2024 Without the prior written consent of ZEISS, this document or any part of it must neither be translated nor reproduced or transmitted in any form or by any means - including electronic or mechanic methods, by photocopying, recording or by any in- formation or filing system.
-
Page 3: Table Of Contents
Safety During Installation..................20 Unpacking and Setting up the Microscope ............20 Connecting the Microscope to the Mains Power Supply ........21 Installing a Camera to the Stand................. 21 Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... - Page 4 Applicable Standards and Regulations ..............35 10 Accessories and Optional System Expansions......... 36 10.1 Assembling the Reflector Mirror ................. 36 Revision History................37 Glossary..................38 Index ....................39 Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101...
-
Page 5: About This Instruction Manual
1 About this Instruction Manual | 1.1 Text Conventions and Link Types 1 About this Instruction Manual This Instruction Manual (further called "document") is considered to be part of the Primostar 1, herein after referred to as "microscope". This document contains basic steps and safety information that must be observed during opera- tion and maintenance. -
Page 6: Explanation Of Symbols
Country of manufacture. "CC" is the country code, e.g. "DE" for Germany, "CN" for China. Date of manufacture optionally given adjacent to this symbol Importer Swiss authorized representative Authorized representative in the European Community In vitro diagnostic medical device Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 7: Further Applicable Documents
Also observe the following instruction manuals: Manuals § Labscope software manual 1.5 Contact If you have any questions or problems, contact your local ZEISS Sales & Service Partner or one of the following addresses: Headquarters Phone: +49 1803 33 63 34... -
Page 8: Safety
Carl Zeiss Suzhou Co., Ltd., Suzhou, China 2.1 Intended Purpose Primostar 1 is an instrument for general microscopic imaging for the in vitro examination of vari- ous biological samples including samples collected from humans or animals. This imaging provides information to further assess physiological and pathological conditions. -
Page 9: Requirements For Operators
Ensure conditions and take measures to prevent the build up of electrostatic charge on the workplace. 2.2.3 Order and Use of Spare Parts Using spare parts that are not provided by ZEISS can be hazardous or can lead to property dam- age. §... -
Page 10: Optical Risk Grouping
§ Only use the handle, if applicable, for transport of the microscope. Otherwise hold the micro- scope with one hand and the base plate with the other hand. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 11: Electrical Hazards
Voltage Hazards Risk of electric shock in case of contact with live parts. Always use the power adapter supplied by ZEISS. When an unsuitable power adapter is used, ZEISS can no longer guarantee the electrical safety and functionality of the microscope. -
Page 12: Hazards Generated By Radiation
Incorrect handling of consumables and cleaning agents can lead to property damage or skin and Hazards eye injuries. Consumables that are not approved by ZEISS can lead to property damage. Consult your ZEISS Sales & Service Partner to learn what consumables you can order and how to handle them. Disinfectant Ensure adequate ventilation in closed rooms. - Page 13 Explanation Microscope type label CAUTION Hot surface below Operate microscope only on a stable, solid, smooth and not tinderlike (non-flammable) surface. Microscope type label Representatives and importer label Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101...
-
Page 14: Product And Functional Description
3 Product and Functional Description The Primostar 1 is a transmitted-light microscope of compact design with a small footprint. The Primostar 1 is a microscope that has been specially developed for education and routine. It features great durability in permanent use. -
Page 15: Main Components Of Primostar 1 Trino
ZEISS 3 Product and Functional Description | 3.2 Main Components of Primostar 1 trino 3.2 Main Components of Primostar 1 trino Fig. 3: Main Components of Primostar 1 trino Microscope stage Eyepiece Trinotube Nosepiece Objective Sample holder Stand Power supply unit Transmitted-light illumination unit Abbe condenser, Fixed Köhler... -
Page 16: Control Elements And Indicators On The Stand
Control knob for X travel of rackless Vernier and scale, displaying the Y posi- stage tion of the stage Lever for adjusting the aperture di- aphragm of the condenser Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... - Page 17 Coarse focusing knob (left side) Fine focusing knob (left side) Lever of the sample holder for fixing the sample Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101...
-
Page 18: Objective Labeling
§ Application Immersion Medium (Oil / W/ Glyc) § Adjustable cover glass correction (Corr.) § Contrast method. See Designed for polystyrene (PS) Cover glass thickness (mm) e.g. 1.0 Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 19: Eyepieces
Both eyepieces are suitable for spectacle wearers. Additionally, they contain a focusing ring for compensation of defective vision. The provided diopter scale helps to find the correct setting. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 20: Installation
It is recommended to keep the original packing and store it away for later use, e.g. for stowing the microscope during periods of non-use or for returning the microscope to the manufacturer for repair. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 21: Connecting The Microscope To The Mains Power Supply
Camera adapter P95-C 1/2" 0.5x DSLR adapter: P95-T2 1.6x and T2 intermediate rings Procedure 1. Loosen the clamping screw and remove the dust cap from the tube. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... - Page 22 3. If applicable, use the corresponding T2 intermediate rings 4. Attach the camera with the adapter to the microscope's port. 5. Orient the camera to the stand. 6. Fix its position by tightening the clamping screw. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101...
-
Page 23: Operation
The adjustment of the interpupillary distance is correct when you see only one round image while looking through the two eyepieces. Procedure 1. Set the interpupillary distance by rotating the eyepiece tubes symmetrically toward or away from one another. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 24: Inserting A Color Filter
5.5 Acquiring an Image Prerequisite ü The position of the eyepieces is set [ 23]. Procedure 1. Place the sample in the sample holder of the mechanical stage. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... - Page 25 (10x, or 100x). 4. Focus on the sample using the focusing drive. 5. Use the rotary knob for illumination intensity to adjust the illumination to a comfortable setting. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101...
-
Page 26: Exchanging The Objectives
5.7 Switching Off the Microscope Procedure 1. Turn the light intensity knob. à The light-emitting diodes turn off. 2. Cover the microscope with the dust cover. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 27: Care And Cleaning Work
Make sure that no cleaning liquid or moisture gets inside the microscope and its compo- nents. In case of damage, the affected parts of the microscope must be taken out of operation. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 28: Cleaning An Optical Surface
Info Labels on the device may only be cleaned using a dry cloth. 3. Wipe off the area with the cloth. 4. Dry with a lint-free cloth. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 29: Troubleshooting
The stage comes down The adjusted torque of the Contact the ZEISS service rep- by itself, the focus is un- coarse focusing knob is too resentative. stable. low. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 30: Decommissioning And Disposal
Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 31: Disposal
European Union that ensures suitable reuse according to the EU Directives mentioned. ZEISS introduced a procedure for the return and recycling of the instruments within the member states of the European Union which ensures suitable recycling procedures conforming to the EU directives. -
Page 32: Technical Data And Conformity
The protective earth connection must not be impaired by the use of extension cables. Info Your ZEISS Sales & Service Partner will provide you with the detailed installation requirements. Weight and Main Components Length... -
Page 33: Performance Data And Specifications Of The Optional Components
Coaxial drive optional right or left Vernier scales readable from the right Sample holder with spring lever, left Condenser Abbe condenser 0.9; Fixed-Köhler for V 4x to 100x Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... - Page 34 50 to 75 mm Tube angle 30° Viewing height 380 to 415 mm Viewing port, tube factor Photo/video port, tube factor Photo/video port, mount 60 mm Invariable splitting ratio 50 vis/50 doc % Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101...
-
Page 35: Applicable Standards And Regulations
They also fall under 2012/19/EU (WEEE). European and International Directives / Standards: For more information on ISO and CSA certifi- cates or CE Declarations of Conformity, contact your ZEISS Sales & Service Partner. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 36: Accessories And Optional System Expansions
Only the following accessories may be used with the microscope as their safe use has been con- firmed by ZEISS. Only original parts from ZEISS may be used. Check in advance whether your mi- croscope can be retrofitted with a system expansion or accessories. -
Page 37: Revision History
03/2023 Editorial rework § 01/2023 Editorial rework § Implementation of UKCA marking § 05/2022 Implementation of revision history § Adaptation to Regulation (EU) 2017/746 (IVDR) Tab. 1: Revision History Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 38: Glossary
/ or a clearly defined cus- tomer group. ZEISS service representative Specially trained service expert, either ZEISS staff or authorized service partner of ZEISS. Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... -
Page 39: Index
12 Filter 24 Warning labels 12 Objective 26 Weight and Sizes 32 Interpupillary distance 23 Mains connection 32 ZEISS Maintenance 27 Portal 7 Mirror 36 Service agreements 27 Instruction Manual ZEISS Primostar 1 | en-US | Rev. 7 | 415501-7021-101... - Page 40 Carl Zeiss Microscopy GmbH Carl-Zeiss-Promenade 10 phone: +49 1803 33 63 34 07745 Jena fax: +49 3641 64 3439 Germany info.microscopy.de@zeiss.com www.zeiss.com/microscopy...
