Conversion

1 Monitor
2 Bracket
3 Monitor shutter

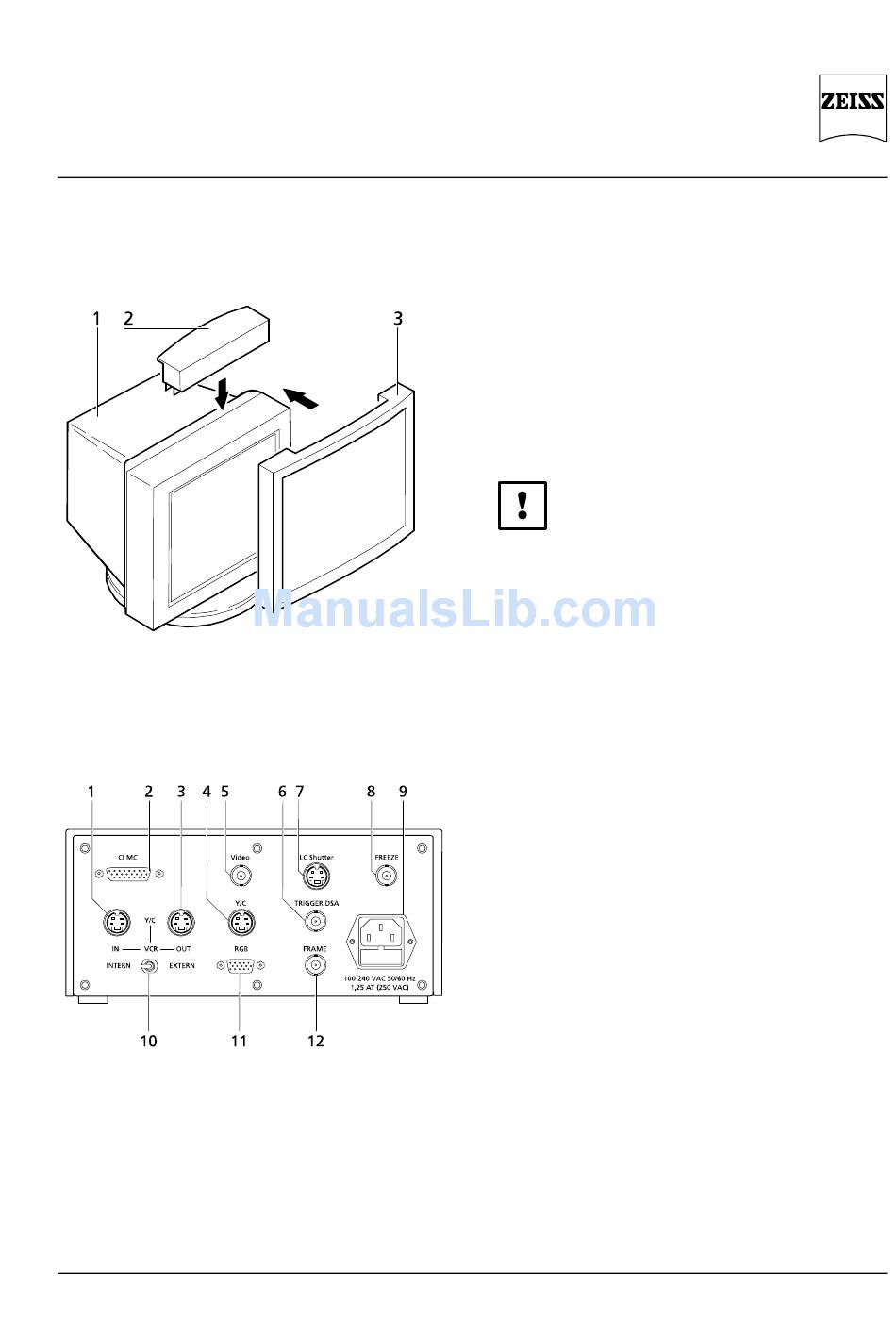

Fig. 10 Attachment of monitor shutter

1 Loop-through input for video printer/video recorder
2 Socket for camera cable
3 Socket for video printer/video recorder
4 Output for monitor with Y/C input
5 Output for monitor with (F)BAS video input
6 Socket for 3D-CONTROL DAS-3 trigger
7 Socket for 3D illumination shutter

Fig. 11 Rear of MCU II

B 40-022-4 e 09/98
Monitor version

Set up the microscope in accordance with
the operating instructions for the
Axiovert 100/135/135 M

Equip the microscope with LD condenser
0.55 Ph1, Ph2, Ph3, DIC, DIC

Use Velcro tape to stick the bracket to the
monitor housing

Insert monitor shutter in the bracket in such
a way that the connector sockets are
positioned on the bottom right
Before connecting the components for the
monitor version, make absolutely sure to note
the following:

First read the enclosed manual from Kappa
entitled "Color TV Camera for Microscopy
and 3D Images";
chapter 5, "Safety regulations", should be
observed in particular.

Cable connections may only be made if the
various components are switched off.

It is important to use only the connectors
listed in the operating instructions of the
camera system

Make sure that the cables are not bent or
laid out in too narrow a radius.

Set up the video equipment with monitor
shutter and make the electrical connections.
Fig. 9/Fig. 11
8 External triggering of the Freeze function
9 Cold instrument socket /fuse holder
10 INTERN: standard setting
EXTERN: if video printer/video recorder are
connected
11 Output for monitor with RGB input
12 Connector for monitor shutter
