7 en | Bosch Security Systems

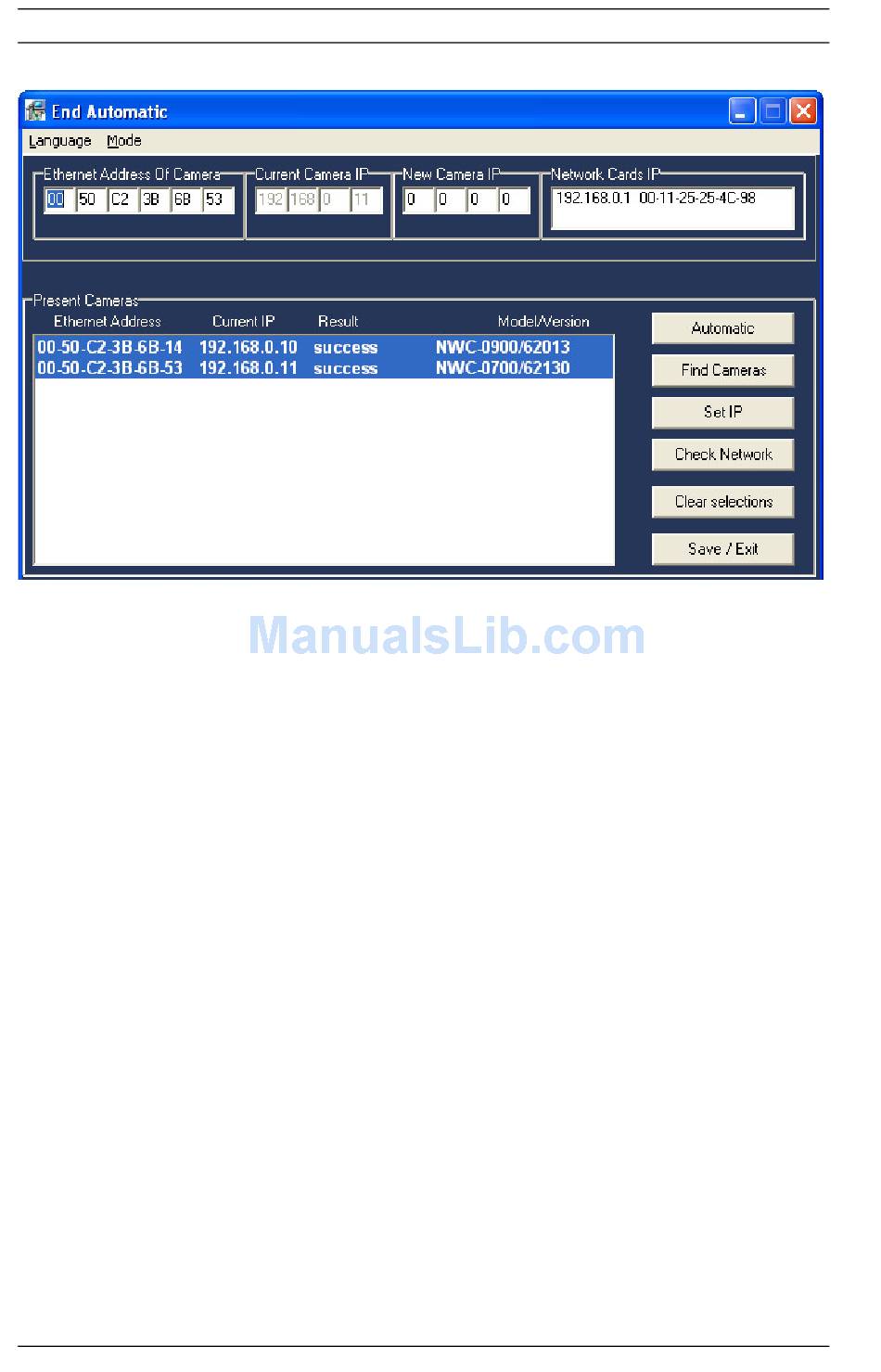

Fig. 1.2 Camera installation in advanced mode showing results

Advanced mode

1.
2.
3.
4.
5.
6.
7.
8.

Viewing the image

1.
2.
3.
4.
NOTICE! Adjust back focus if necessary.
F.01U.032.595 | V 1.0 | 2007.03
Start making a list of Ethernet (MAC) addresses and IP
addresses assigned to them. The Ethernet address is on
the camera label.
Click Find Cameras.
Select a camera by clicking its Ethernet address.
Enter the IP address assigned to that camera in the New
Camera IP box.
Click Set IP.
Click Automatic.
Wait for result to change from unchecked to success.
Click Save / Exit when done.
Open Internet Explorer.
In the address line, enter http://IPADDRESS/index.html.
Click Video to display the image.
Adjust the lens for optimal focus.
a. Loosen the set screws in the top and bottom of the
front panel (use 1/16 inch hex key).
Quick Install Guide
Megapixel IP Cameras
