Pro-Form 14.0 Re Elliptical Manual page 9

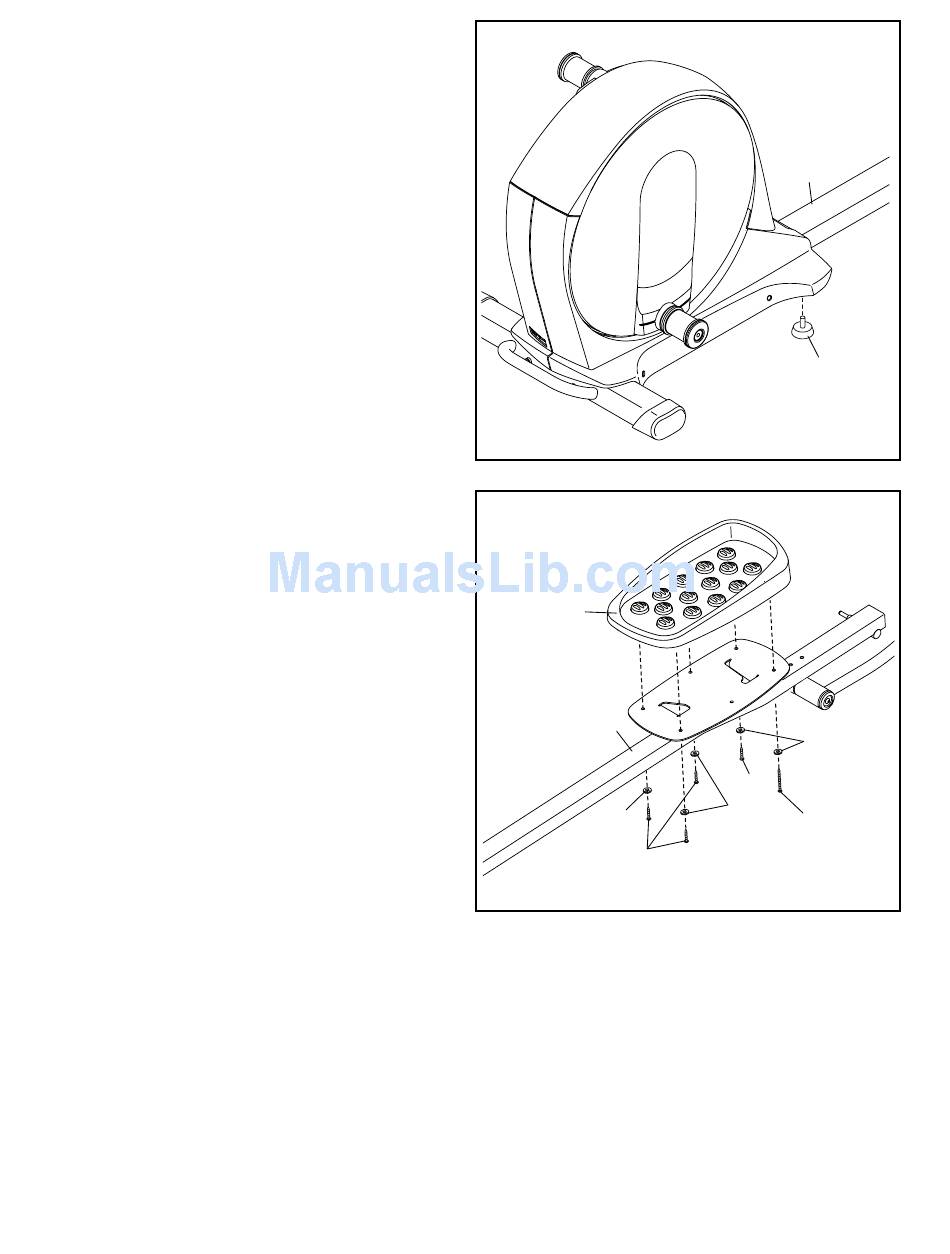

6. Note: The Leveling Foot (41) may be
preattached.
With the help of a second person, place some of
the packaging materials (not shown) under the
Frame (1). Have the second person hold the
Frame to prevent it from tipping while you
complete this step.
Tighten the Leveling Foot (41) into the underside
of the Frame (1).
7. Identify the Right Pedal (14) and the Right Pedal
Arm (12) assembly and orient them as shown.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with four M6 x 12mm Screws (139) and
four M6 x 13mm Washers (140); do not tighten
the Screws yet.
Next, tighten an M6 x 50mm Screw (62) with
an M6 x 13mm Washer (140) into the Right
Pedal Arm (12) and the Right Pedal (14). Then,
tighten the four M6 x 12mm Screws (139).
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) assembly in the same
way.
