Pro-Form 14.0 Re Elliptical Manual page 11

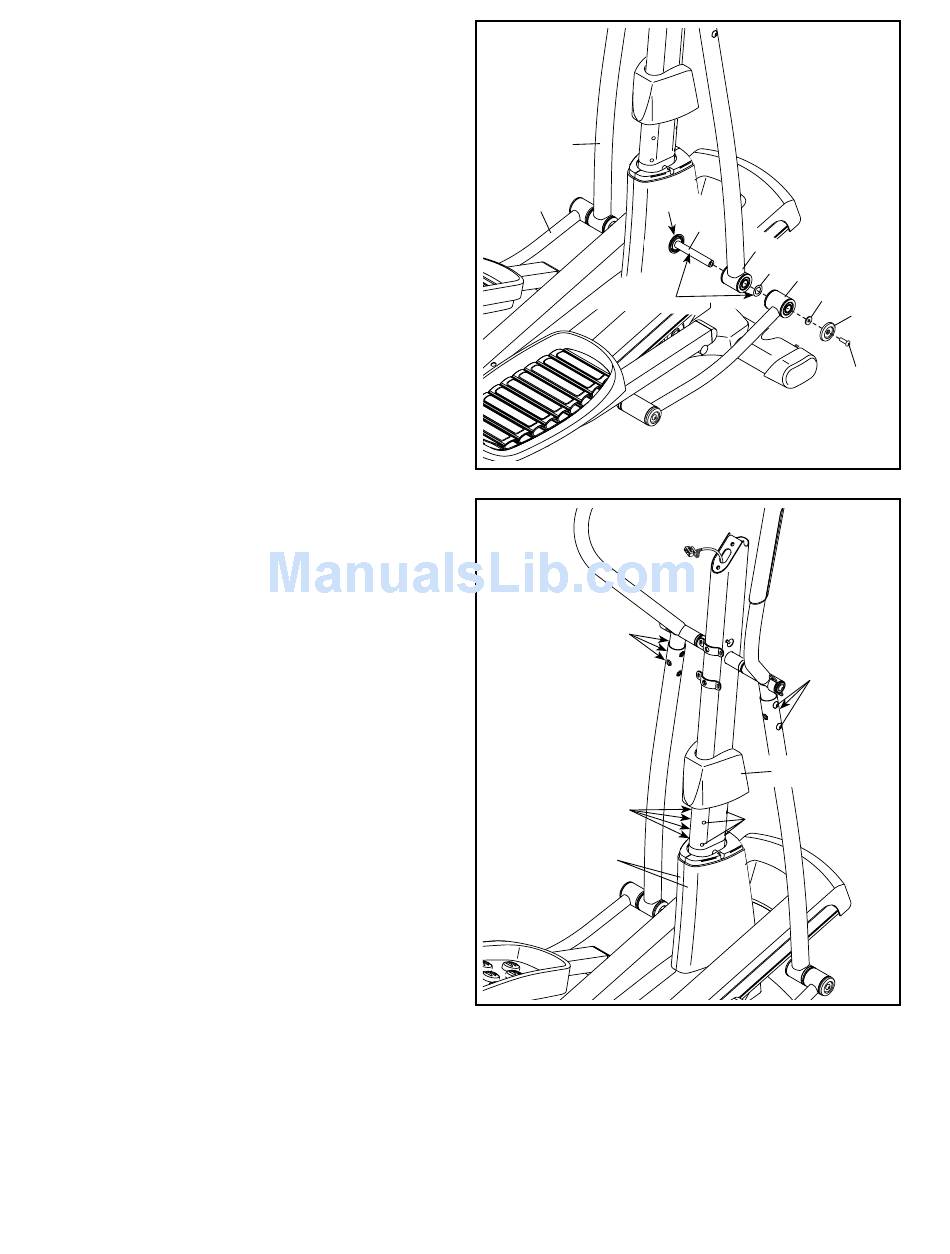

10. Apply grease to a Link Arm Axle (94) and to an
M17 x 27mm Wave Washer (88).
First, insert the Link Arm Axle (94) into the Right
Upper Body Leg (6) from the side shown. Next,
slide the M17 x 27mm Wave Washer (88) onto
the Link Arm Axle. Then, insert the Link Arm Axle
into the Right Link Arm (90).
Insert a hex key into the M8 x 25mm Screw
(128) in the Link Arm Axle (94).
Using a second hex key, tighten another
M8 x 25mm Screw (128), a Pivot Axle Cover
(111), and an M8 x 25mm x 1.5mm Washer (126)
into the other end of the Link Arm Axle (94).
Tip: Avoid damaging the Pivot Axle Cover
when tightening the Screw.
Repeat this step on the other side of the
elliptical.
11. Tighten the six M8 x 45mm Bolts (104) and
the eight M8 x 16mm Screws (102).
Then, press the Top Cover (23) into the Right
and Left Frame Covers (21, 22).
10
7
91
Grease
11
104
102
21, 22
11
128
94
6
88
90
126
104
23
102
111
128
