Disc Brake - Schwinn 12in Tiger Owner's Manual

Cable adjus ng barrel
Handlebar
42
©2010

Disc Brake

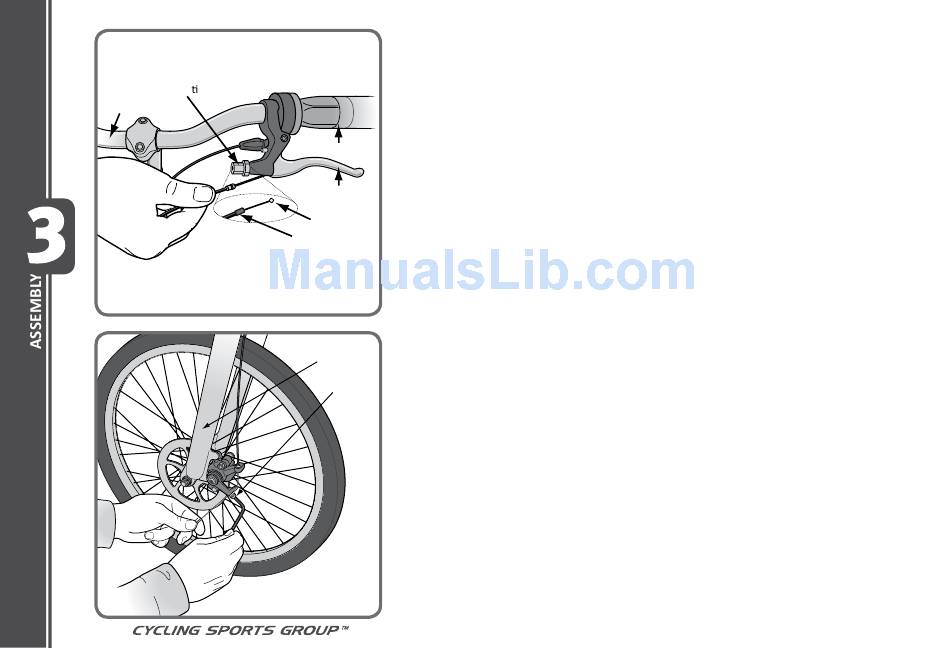

If the brake cable is not connected at the brake lever, line up brake barrel slots with
brake lever slot before installing the cable. Then slide the head of the brake cable into
the brake lever per the diagram, and thread the cable through the slot in the brake lever
so the cable end rests squarely in the adjustment barrel or cable end rests in the recess
of the brake lever. (Fig. 3.37)
If the brake cable is disconnected at the disc caliper, thread the brake wire through the
Grip
adjustment barrel, loosen the cable anchor bolt until you can see a hole through the
anchor bolt for the cable wire to attach, thread the cable wire through the cable
Brake lever
anchor and snug the cable anchor by hand. (Fig. 3.38)
Cable head
Ferrule
3.37
Fork leg
Cable
anchor bolt
3.38
