www.pyleaudio.com
PLRIBMPF

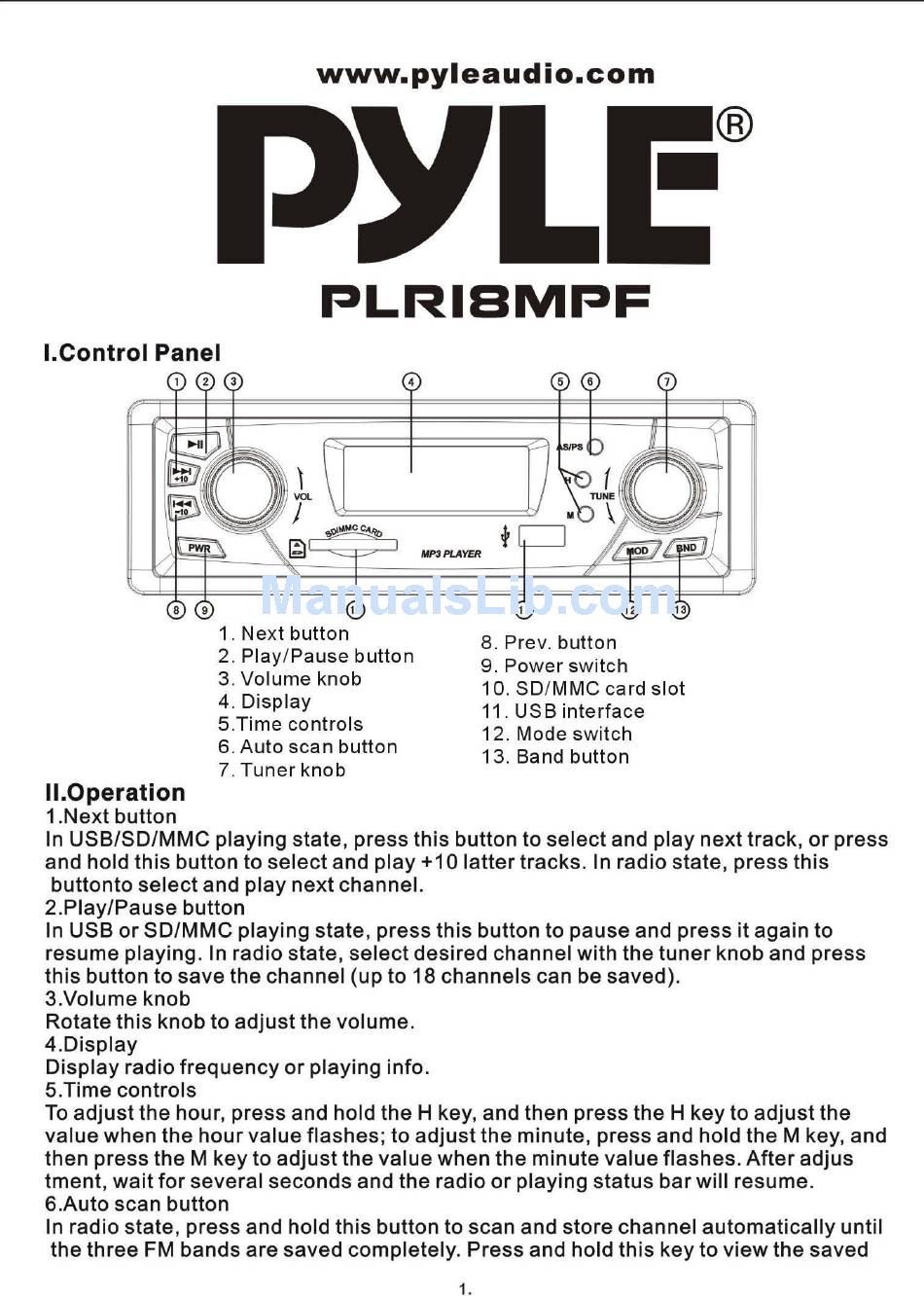

I.Control Panel
1I.0peration
1.Next button
1. Next button
2.
Play/
Pause button
3. Volume knob
4. Display
5.Time controls
6. Auto scan button
7.Tunerknob
8. Prevo button
9. Power switch
10.
SD/
MMC card slot
11
.
USB interface
12. Mode switch
13. Band button
In USB/SD/MMC playing state
,
press this button to select and play next track
,
or press
and hold this button to select and play +10 latter tracks. In radio state, press this
buttonto select and play next channel.
2.Play/Pause button
In USB or SD/MMC playing state, press this button to pause and press it again to
resume playing
.
In radio state, select desired channel with the tuner knob and press
this button to save the channel (up to 18 channels can be saved)
.
3.volume knob
Rotate this knob to adjust the volume.
4 .Display
Display radio frequency or playing info.
5.Time controls
To adjust the hour, press and hold the H
key,
and then press the H key to adjust the
value when the hour value flashes
;
to adjust the minute
,
press and hold the M
key,
and
then press the M key to adjust the value when the minute value flashes
.
After adjus
tment, wait for several seconds and the radio or playing status bar will resume.
6.Auto scan button
In radio state
,
press and hold this button to scan and store channel automatically until
the three FM bands are saved
completely.
Press and hold this key to view the saved
1.
Advertisement
Table of Contents
Related Manuals for Pyle PLR18MPF
Summary of Contents for Pyle PLR18MPF
- Page 1 www.pyleaudio.com PLRIBMPF I.Control Panel 1. Next button 8. Prevo button Play/ Pause button 9. Power switch 3. Volume knob MMC card slot 4. Display USB interface 5.Time controls 12. Mode switch 6. Auto scan button 13. Band button 7.Tunerknob 1I.0peration 1.Next button In USB/SD/MMC playing state press this button to select and play next track...
- Page 2 Channels When the signal from desire channel is received, press this button again to listen to the program 7 .Tuner knob In radio state, rotate the knob to left/right to scan radio channels automatically or manually. 8.Prev. button In USB/SD/MMC playing state, press this button to select and play previous track, or press and hold it to select and play -1 0 previous tracks.
- Page 3 Fixing flake Stand Double-head screw Disassembly key IInstalling the master unit 1.lnstall bracket on dashboard of the vehicle, and bend the stand 2.Connect power cord speaker wire, and fix the fixing flake on the vehicle. 3.lnsert the antenna plug, push the master unit into the stand and fasten the fixing nuts. LUninstaliing master unit Remove the fixing nuts, insert the two disassembly keys into...
- Page 4 VI.Precautions Only replace the fuses of same specification. VII.Troubleshooting Failure Reason Solution Can't start thedevice Replace with same fuse The fuse is melt Ignition wire and anode power Reconnect the wire. memory cord are connected properly Check whether the control wire vehicle antenna isn't of automatic radio antenna...
