USER'S MANUAL
2.Basic Operations
1)
OPEN Panel Key

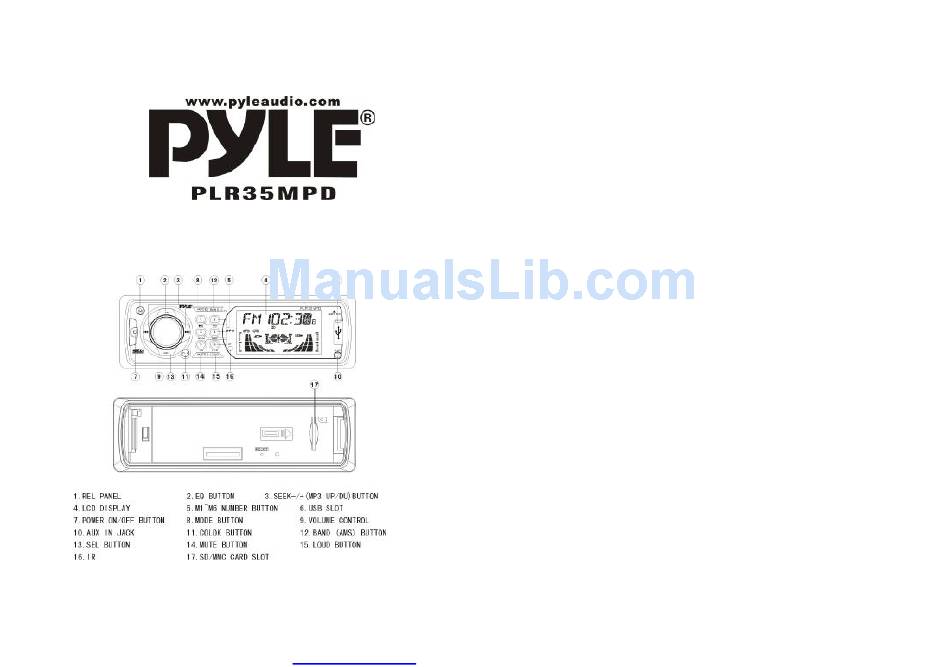

1.CONTROL PANEL
Short press this button, the panel will detach from the unit.
2)EQ BUTTON
Short press for EQ7: pop jazz rock class flat normal.
3) SEEK -/+(MP3 UP/DN) Switch
Under the radio mode, short press this button to switch the band, the system will
stop automatically when it switch the states. Under the MP3 mode,
4)LCD Display
Display the channel of radio or the playing information.
5) Number Button
M1: Under the radio mode, Short press this button can select the saved state
of AMS function; Under the MP3 mode, Short press this button will stop play
music, Short press again will start play music again.
M2: Under the radio mode, Short press this button can select the saved state of
AMS function; Under the MP3 mode, Short press this button will look-through
the display songs.
M3: Under the radio mode, Short press this button can select the saved state of
AMS function; Under the MP3 mode, Short press button can enter or release
PDF created with pdfFactory Pro trial version
www.pdffactory.com
