PLRIEiMPF

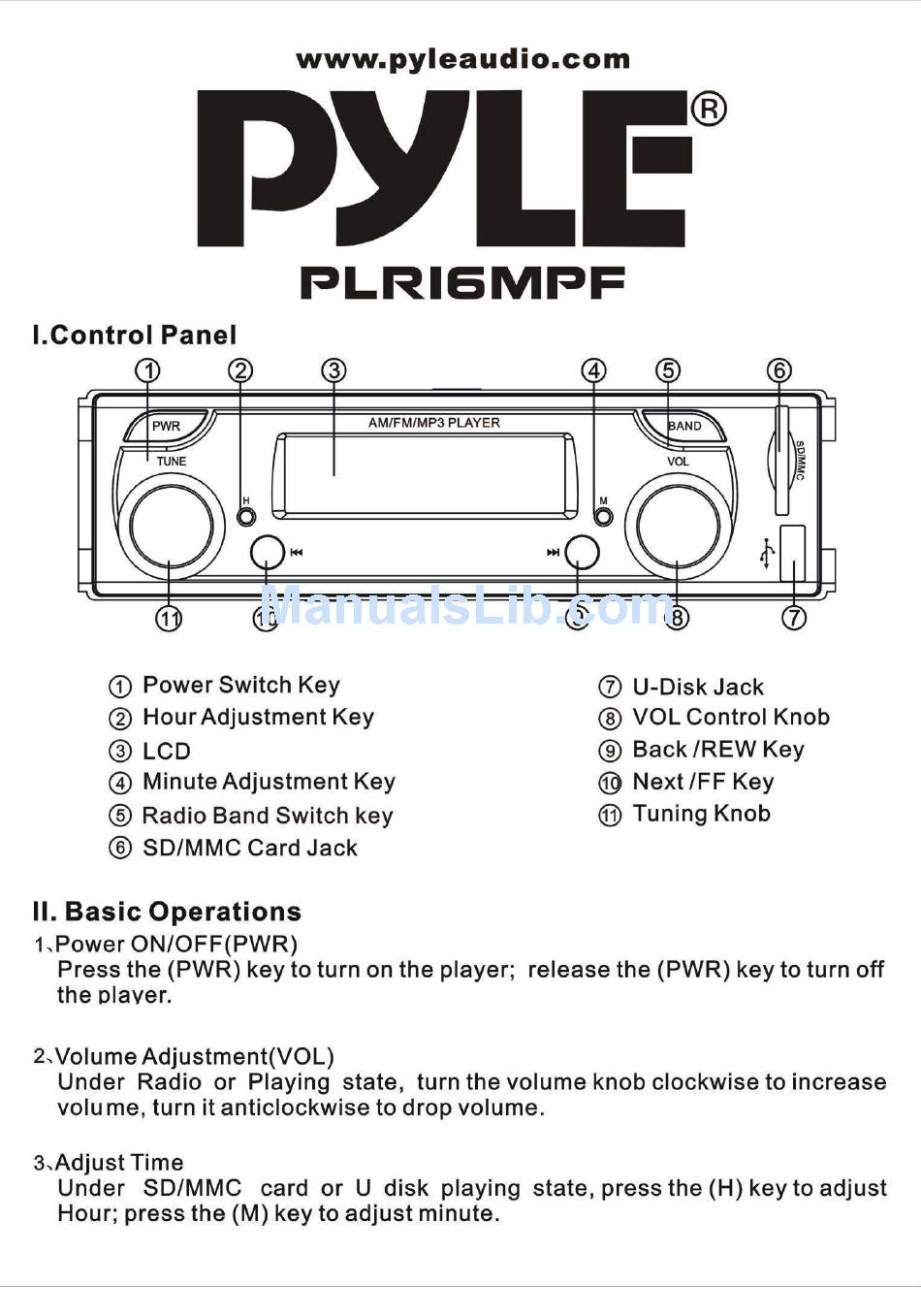

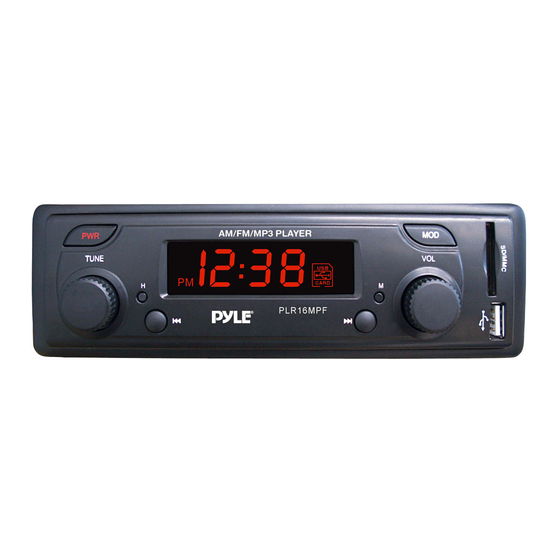

I.Control Panel
AM/FM/MP3
PLAYER
<D
Power Switch Key
@
Hour Adjustment Key
@
LCD
@
MinuteAdjustment Key
®
Radio Band Switch key
®
SD/MMC Card Jack
II. Basic Operations
LPower
ON/OFF(PWR)
Press the (PWR) key to turn on the player;
the player.
2,
Volume Adjustment(VOL)
o
U-Disk Jack
®
VOL Control Knob
®
Back IREW Key
@
Next IFF Key
@
Tuning Knob
release the (PWR) key to turn off
Under Radio or Playing state, turn the volume knob clockwise to increase
volu me, turn it anticlockwise to drop volume.
3,Adjust Time
Under SD/MMC card or U disk playing state, press the (H) key to adjust
Hour; press the (M) key to adjust minute.
Advertisement
Related Manuals for Pyle PLR16MPF
Summary of Contents for Pyle PLR16MPF
- Page 1 www.pyleaudio.com PLRIEiMPF I.Control Panel AM/FM/MP3 PLAYER <D Power Switch Key U-Disk Jack ® Hour Adjustment Key VOL Control Knob ® Back IREW Key MinuteAdjustment Key Next IFF Key ® Tuning Knob Radio Band Switch key ® SD/MMC Card Jack II. Basic Operations LPower ON/OFF(PWR) Press the (PWR) key to turn on the player;...
- Page 2 III. Radio CDTune (TUNE): Under Radio state, turn the tune knob to receive your favora- ble band.Turn the knob clockwise to increase frequency, turn it anticlockwise to decrease frequency. IV. Player Operation CDPlaying Switch Under SD/MMC card playing state, insert the U disk, the player automatically switches to U disk playing state, insert...
- Page 3 VII. Wiring Diagram Battery + To Ignition Switch Black To Automatic Blue L -_ _ _ _ --==----' To Battery Antenna White Front Left Front Right Speake Speaker White w ith y wlth- ack stri strip V io le Gree Left Rear Right Speake...
- Page 4 IX. Troubleshooting Fault Reasons Solutions 1.Power supply is not correctly connected. Correctly connect power supply. Power indicator 2.Fuse is broken or power circuit is open Check and connect power wire, doesn't light on replace fuse. 1.No power supply. Connect the power wire.
