www.pyleaudio.com
PLRI4MPF
User's Manual

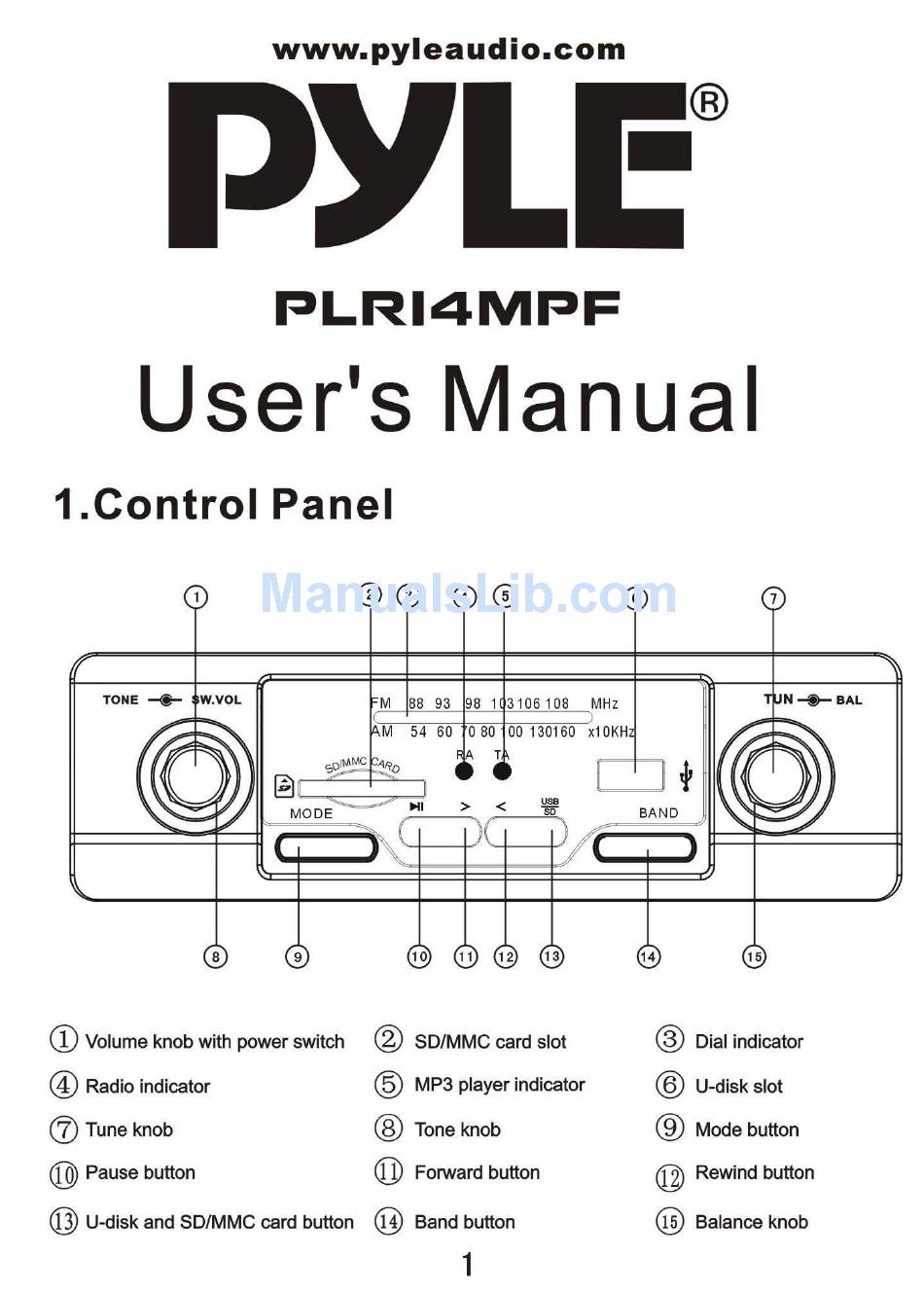

1.Control Panel
CD
Volume knob with power switch
®
SD/MMC card slot
®
Dial indicator
@
Radio indicator
@
MP3 player indicator
®
U-disk slot
Cf)
Tune knob
@
Tone knob
®
Mode button
®
Pause button
@
Forward button
@
Rewind button
@
U-disk and SD/MMC card button
@
Band button
@
Balance knob
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLR14MPF and is the answer not in the manual?

Questions and answers

Summary of Contents for Pyle PLR14MPF

  • Page 1 www.pyleaudio.com PLRI4MPF User's Manual 1.Control Panel ® ® SD/MMC card slot Volume knob with power switch Dial indicator ® MP3 player indicator Radio indicator U-disk slot ® Tone knob Tune knob Mode button ® Forward button Pause button Rewind button U-disk and SD/MMC card button Band button Balance knob...
  • Page 2 2.0perations TURN POWER ON/OFF AND ADJUST VOLUME Rotate " sw.vol " knob clockwise to turn the power on and increase volume; Rotate " sw.vol " knob anticlockwise to decrease volume and turn the power off. ® RADIO OPERATIONS Push the "MODE "...
  • Page 3 4.Technical Parameters AM Section F req uency Range--------------------------------------------------------------530 -1 700KHz Sensitivity----------------------------------------------------------------------------- 43d B S N R ------------------------------------------------------------------------------------ 40d B ;;:,: FM Section Frequency Range------------------- -------------------------------------------87-1 08M Hz 26d B Sensitivity------------------------------------------------------------------------------ S N R ------------------------------------------------------------------------------------- ;;:,: 50d B General Section Power Voltage-----------------------------------------------------------------------1 2V DC Speaker I m pedance--------------------------------------------------------------------4-8 Power Output-----------------------------------------------------------80WX2 (160W Max) Dimension-------------------------------------------164mm(W) X43mm(H) X 124mm(D)
  • Page 4 6.Wiring Diagram Antenna Socket Main Unit Right RCA R To Battery + Ignition Switch Black L-":"':""' _ _ To Battery- Blue Green Left Right Speaker Speaker Green with _ _ Blue w ith b lack strip black strip 7. Troubleshooting Fault Reason Solution...
