Summary of Contents for Pyle PLR34M

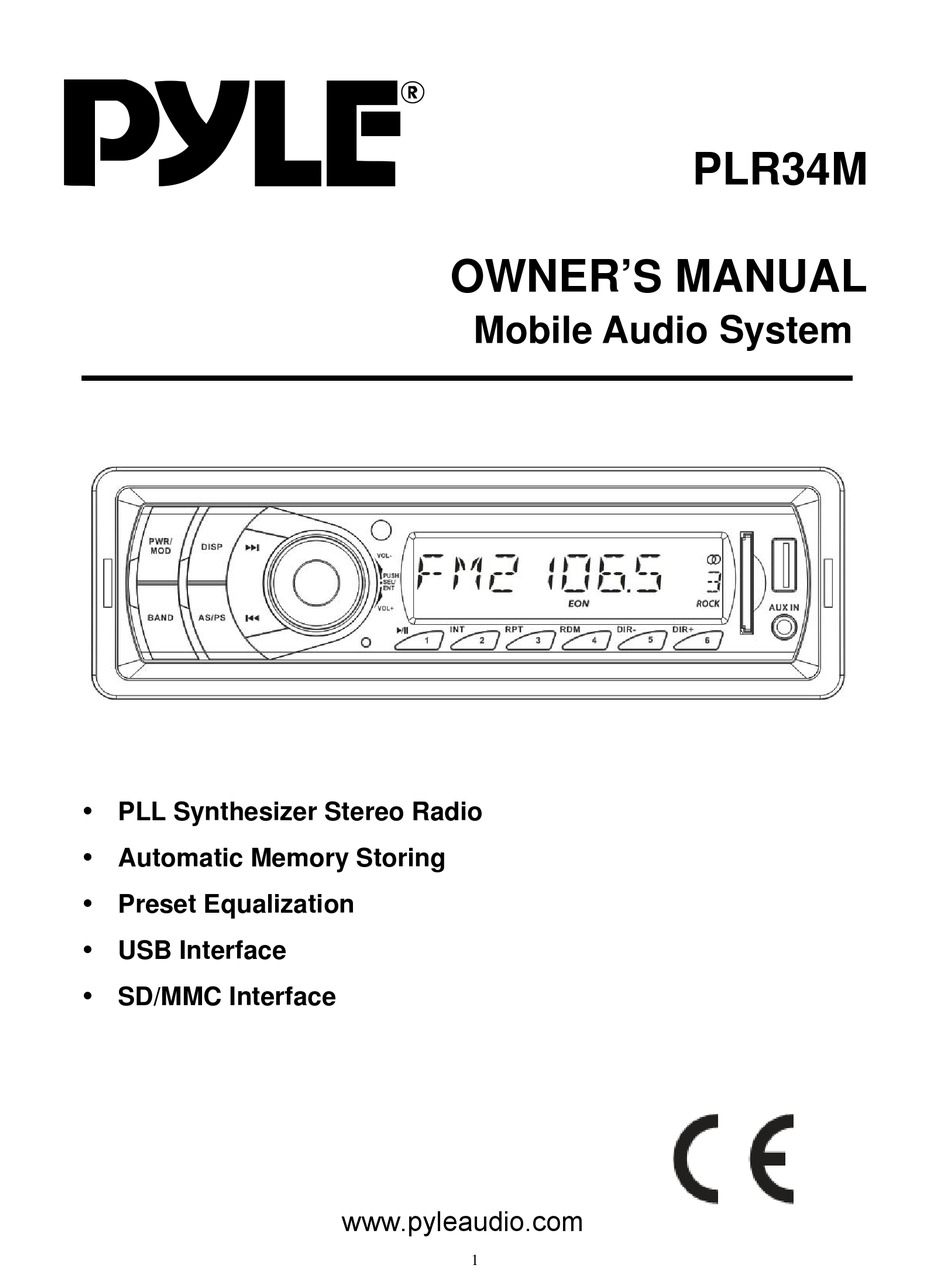

- Page 1 PLR34M OWNER’S MANUAL Mobile Audio System PLL Synthesizer Stereo Radio Automatic Memory Storing Preset Equalization USB Interface SD/MMC Interface www.pyleaudio.com...
-
Page 2: Table Of Contents
CONTENTS Installation ........... 3 Take out screw before installation ..3 DIN Front-Mount ......... 3 Installing the unit ....... 3 Removing the unit ......4 Wiring Connection ......5 Operation ..........6 Location of keys ........6 Switching on/off the unit ......7 Sound adjustment ......... -
Page 3: Installation
INSTALLATION Notes: Choose the mounting location where Be sure you test all connections first, and the unit will not interfere with the then follow these steps to install the unit. normal driving function of the driver. 1. Make sure the ignition is turned off, and Before finally installing... -
Page 4: Removing The Unit
Screw (5x25mm) and Plain Washer) to INSTALLATION attach the other end of metal strap to a solid metal part of the vehicle under the dashboard. This strap also helps ensure proper electrical grounding of the unit. Note to install the short threading terminal of the mounting bolt to the back of the unit and the other long threading terminal to the dashboard. -
Page 5: Wiring Connection
WIRING CONNECTION ISO CONNECTION... -
Page 6: Operation
OPERATION LOCATION OF KEYS 12.4 RDM 1.PWR/MOD 13.3 RPT 2.DISP 14.2 INT 15.1 4.SEL/ENT/VOL 5. LCD 17.AS/PS 6. USB interface 18.BAND 7.AUX IN 19.IR 8.Reset button 9.SD/MMC interface 10.6 DIR+ 11.5 DIR-... -
Page 7: Switching On/Off The Unit
OPERATION SWITCHING ON/OFF THE UNIT AUXILIARY INPUT Press PWR button (1) to turn on the unit. The unit can be connected to a portable When the unit is on. Press and hold for 2 seconds to turn off the unit. audio player through the AUX IN jack (7). -
Page 8: Automatic Memory Storing& Program Scanning
OPERATION Press 5 DIR-button (11) or 6 DIR+ button AUTOMATIC MEMORY STORING & (10) to select previous directory or next PROGRAM SCANNING directory. - Automatic memory storing Press AS/PS button (17) for several PAUSING PLAYING seconds, the radio searches from the Press 1 button (15) to pause playing. -
Page 9: Remote Control
REMOTE CONTROL HANDSET(OPTIONAL) FUNCTION KEY & CONTROL 1. POWER Power ON/OFF Button 2. MODE Mode Botton(S,T,U,7,For MP3/WMA Operation) 3. TUNE/SKIP Tune/SKIP Down Button(V,W,X,8 For MP3/WMA Operation) 4. 7/BND Band Select Button(When pressed shortly) 5. SCN Scanning Button(D,E,F,2 For MP3/WMA Operation) 6. -
Page 10: Specification
SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions : 178 (W) x 97 (D) x 50 (H) Tone Controls Bass (at 100 Hz) : ±10 dB Treble (at 10 kHz) : ±10 dB Maximum Output Power Version V : 4x60 watts Current Drain... -
Page 11: Trouble Shooting
TROUBLE SHOOTING Before going through the checklist, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer. Symptom Cause Solution The car ignition switch is If the power supply is No power. not on.
