Summary of Contents for Pyle PLCD43MRB

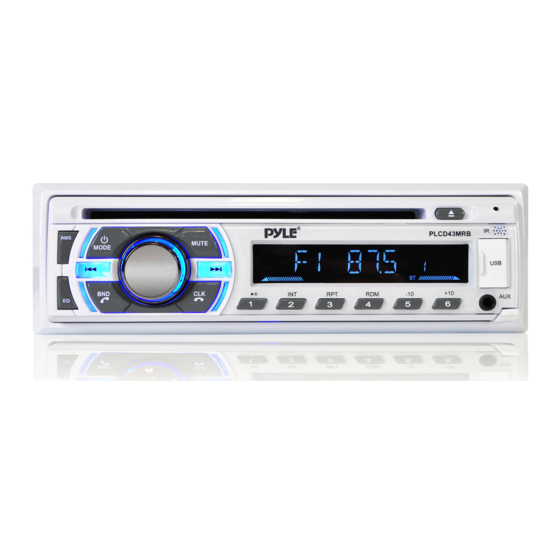

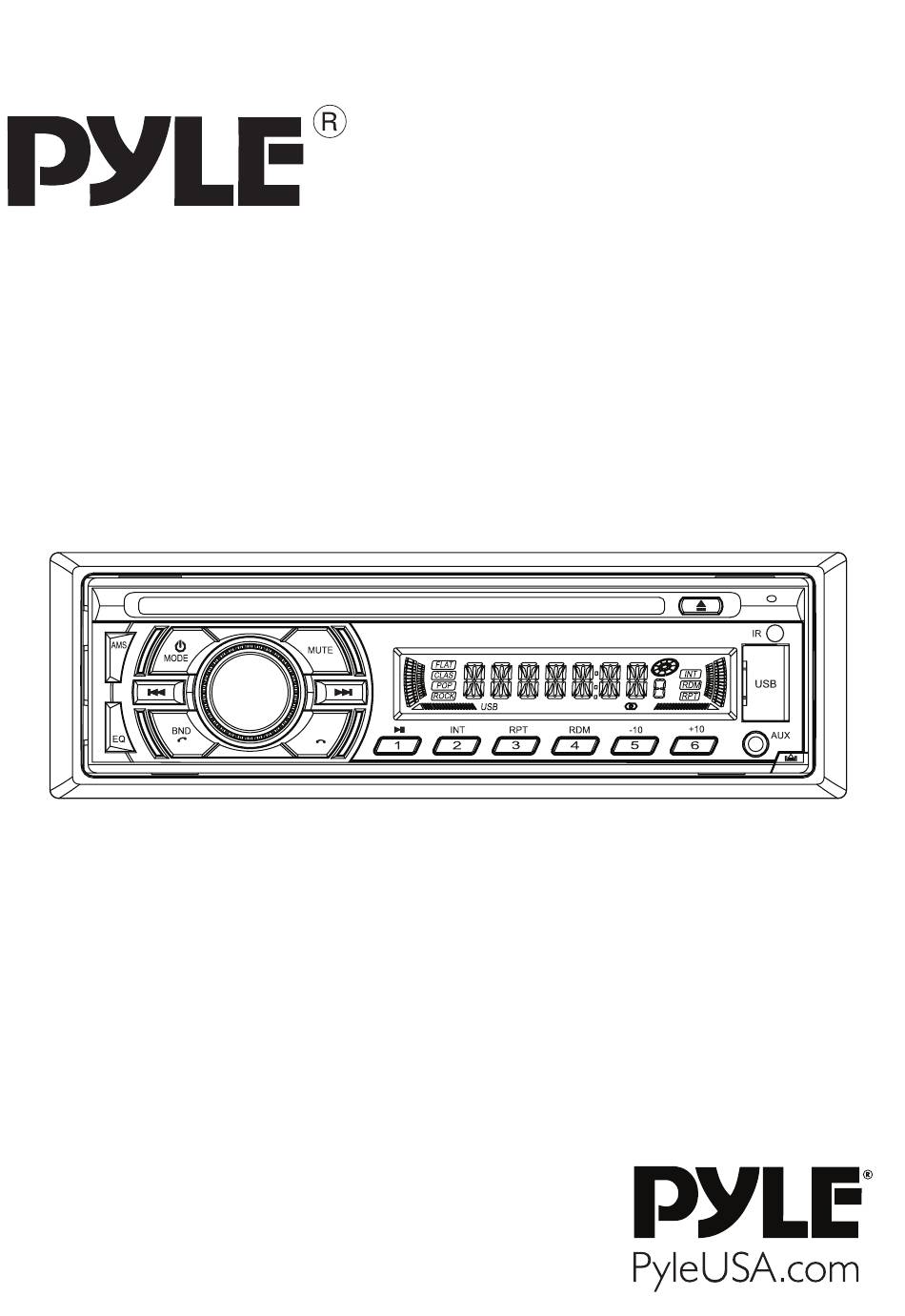

- Page 1 Car In-dash AM/FM MPX Receiver with CD, CD, CD-R/RW, MP3 Playback & USB/AUX Inputs USER’S MANUAL Receiver Models: PLCD43MRB/PLCD43BTM...
-
Page 2: Table Of Contents
COTENTS COTENTS.................................... 1 PRECAUTIONS ................................... 2 How to Handle Discs ..............................2 Precautions & Warnings ............................2 Lithium Battery Cell Warnings ........................... 2 Drives and connections ............................. 2 Others Warnings ............................... 2 INSTALLATION..................................3 Installation Procedures .............................. 3 Installation Opening..............................3 Important: .................................. -
Page 3: Precautions
PRECAUTIONS How to Handle Discs • Handle a disc by its edges. Do not touch the playing side. • Before inserting a disc, wipe the disc outward from the disc center with a clean, soft, dry and lint-free cloth. Do not use solvents or thinners such a petrol/benzene or cleaners. -
Page 4: Installation
INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening This unit can be installed in any dashboard Having 53 mm an opening as shown the right figure. 182 mm Important: Remove the transport CD deck screws before use. To Install the Car Radio Be sure you test all connections first, and then follow these steps to install this unit. -
Page 5: Wiring Connections
INSTALLATION DASH BOARD DIAGRAM HEX NUT HEX NUT SPRING WASHER CONSOLE PLAIN WASHER MOUNTING SLEEVE TAPPING SCREW HEX BOLT - Only use speakers with 4 ohms impedance. - Do not attach the control panel to the chassis before wiring is complete. - The maximum current of the auto antenna is 200mA. -
Page 6: Control Panel Button Loactions
CONTROL PANEL BUTTON LOACTIONS RESET (power)/MODE (source) button 2. SEL (select/menu) button and VOL (volume) knob 3. BAND(band) button, button 4. AMS (automatic store / preset station scan, automatic music search) button (pause/play), Preset station1 button 6. INT (intro), Preset station 2 button 7. -
Page 7: General Operation
GENERAL OPERATION Turn Unit On/Off • Press the power ( ) /MODE button on the front panel to turn on the unit, and long press it again to turn off the unit. • Press the power ( ) button on the remote control to turn the unit on or off. Adjust Volume (VOL) Rotate the VOL knob on the front panel or press the VOL+ /VOL-... -
Page 8: Change The Source (Mode)
3. Press the button on the front panel or on the remote control to adjust the hour. 4. Press the CLK button and the minutes will flash. 5. Press the button on the front panel or on the remote control to adjust the minute. 6. -
Page 9: Radio Operation
RADIO OPERATION Switch Between USA area and Europe area Frequency In radio mode, press and hold the VOL/SEL button to enter switch state of the EU(USA) and EU (Europe) frequency, then rotate it to switch between US(USA) and EU(Europe) frequency. The system will change the frequency setting in about 3 seconds. -
Page 10: Disc / Usb Operation
DISC / USB OPERATION To insert DISC / USB • To play files on a disc, insert a disc with the label surface facing upward into the disc slot. Playback will begin automatically. • To play files on a USB device, open the USB port cover and insert the USB storage device into the USB port. -
Page 11: Select The Track Or File For Playback In Mp3 Format
Select the track or file for playback in MP3 format During CD, USB playback, press the AMS button to enter the track search modes: a) In playback of CD or files with MP3 format, press the AMS button to access the track or file number searching mode which allow you to quickly find a specific track or MP3 file by its serial number, and the "TRK SCH"... -
Page 12: Bluetooth Operation
2. When the phone finds the car audio system, the “PYLE” name will be displayed. 3. Choose the “PYLE” from the device list to pair and connect with the car audio system. Upon confirming, the BT logo will stop flashing. -
Page 13: Remote Control
REMOTE CONTROL Remove Insulating Sheet The remote control comes with an insulating sheet attached to the underside of the remote control, as illustrated on the right. The remote control will not work until the insulating sheet is removed. Replace Lithium Battery Cell 1. -
Page 14: Specifications
SPECIFICATIONS General Chassis Dimensions..............178(W) x 160(D) x 50(H) mm Power Supply Requirement ...................DC 12V Current Consumption ..................15A (max.) Maximum Power Output ..................75W x 4CH Radio USA/ Europe Frequency Range........87.5 - 107.9 MHz (200KHz/Step) 87.5 - 108.0 MHz(50KHz/Step) Usable Sensitivity ....................30 dBu I.F. -
Page 15: Troubleshooting
TROUBLESHOOTING The following chart will help in solving most problems that may occur. If you still have questions after going through the checklist, please consult your local customer service representative. Before going through this check list, refer the wiring and operating procedures. Symptom Cause Solution...
