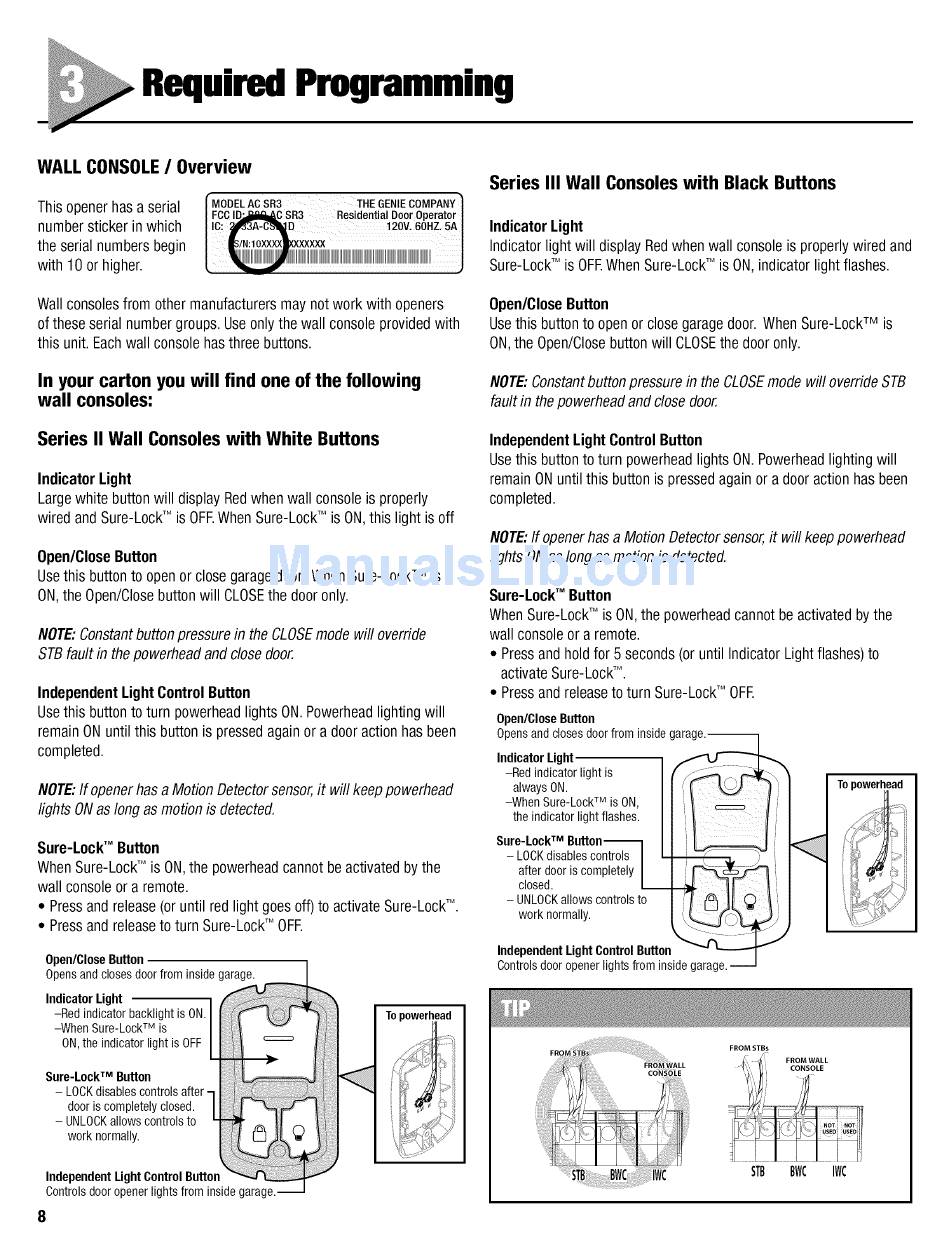

WALL CONSOLE/ Overview
This openerhasa serial
numbersticker in which
the serial numbersbegin
with 10 or higher.
Wallconsolesfrom other manufacturersmay not work with openers
of these serial numbergroups.Useonlythe wall consoleprovidedwith
this unit. Eachwall consolehasthree buttons.
In your carton you will find one of the following
wall consoles:
Series II Wall Consoles with White Buttons
IndicatorLight
Largewhite button will displayRedwhenwall consoleis properly
wired and Sure-Lock TM is OFEWhenSure-Lock TM is ON,this light is off
Open/Close Button
Usethis buttonto open or close garagedoor. WhenSure-Lock TMis
ON,the Open/Close button will CLOSE the door only.
NOTE:Constant b utton pressurein theCLOSE modewill override
STBfault in the powerheadand close door,
IndependentLightControlButton
Usethis buttonto turn powerheadlights ON.Powerheadlightingwill
remainONuntil this button is pressedagainor a door action hasbeen
completed.
NOTE: I f openerhasa Motion Detectorsensor,it will keep powerhead
lights ONas long as motion is detected.
Sure-Lock'" Button
WhenSure-Lock TM is ON,the powerheadcannot be activatedby the
wall consoleor a remote.
• Pressand release(or until red light goesoff) to activateSure-Lock _.
• Pressand releaseto turn Sure-Lock _ OFF.
Open/CloseButton
Opensand closes door from inside garage.
Indicator Light
-Red indicator backlight is ON.
-When Sure-LockTMis
ON,the indicator light is OFF
Sure-Lock
TM
Button
- LOCKdisables controls after -
door is completely closed.
- UNLOCK allows controls to
work normally.
Independent Light ControlButton
Controls door opener lights from inside garage.
8
Series III Wall Consoles with Black Buttons
IndicatorLight
Indicatorlight will displayRedwhen wall consoleis properlywired and
Sure-Lock _ is OFF. WhenSure-Lock _ is ON,indicator lightflashes.
Open/CloseButton
Usethis buttonto open or closegaragedoor. WhenSure-Lock TMis
ON,the Open/Close buttonwill CLOSE the door only.
NOTE: Constant b utton pressurein the CLOSE mode will overrideSTB
fault in the powerheadand closedoor,
IndependentLightControlButton
Usethis buttonto turn powerheadlights ON.Powerheadlightingwill
remainONuntilthis button is pressedagain or a door action hasbeen
completed.
NOTE: If openerhasa Motion Detectorsensor,it will keeppowerhead
lights ONas long as motion is detected.
Sure-Lock'" Button
WhenSure-Lock TM is ON,the powerheadcannot be activatedby the
wall consoleor a remote.
• Pressand hold for 5 seconds(or until IndicatorLightflashes)to
activateSure-Lock TM.
• Pressand releaseto turn Sure-Lock _"OFF.
Open/Close Button
Opens
and closes d oor f rom
inside
garage._
/
Indicator Light_ _
-Red indicator
light is I ( _, _"_ '
always ON. _]' Ii _
ii
-When Sure-Lock TM isON,
I I /' _
'_:
theindicator
light flashe&
I
I
Sure'LockTMButton_ II 'U_ J
- LOCKdisables controls I I I --F ,,- L
i '\ C_ J"
after door is com ;ieteiy I
closed. I_
-UNLOCK allows controls to 1
work normally. _,__._
Independent Light Control Button _
Controls door opener
lights
from inside garage. ---J
