Example 4:
high-availability, neat networking connection with clear visible display of LEDs port.
Specially a place where existing network is supporting10Mbps user and want to expand the
network with 100Mbps fast ethernet. Magnum DS8016-R equipped with bridge module
provide a very effective and reliable solution for these users.
1 2 3 4 5 6 7
10
10

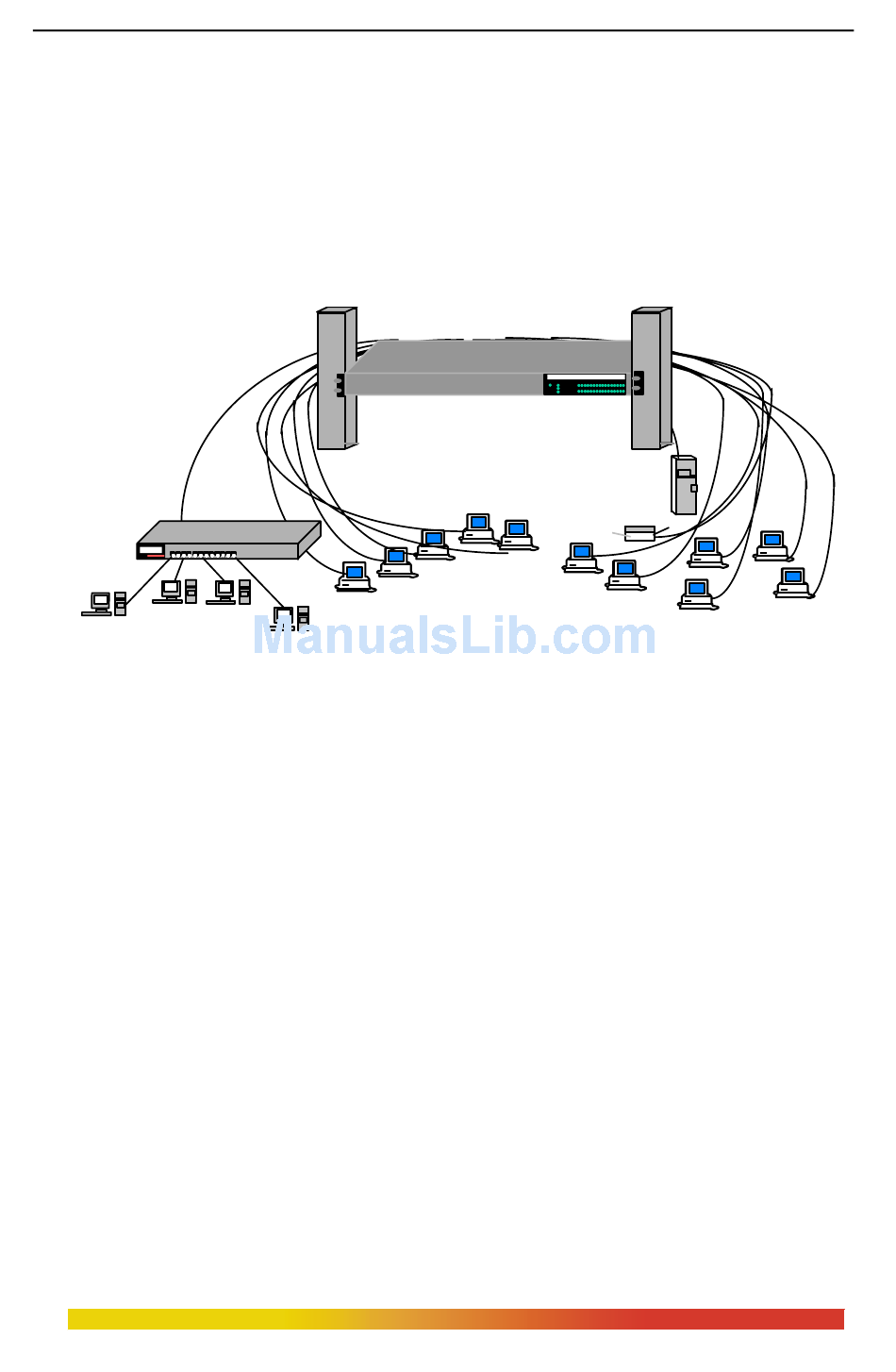

Magnum DS8016-R connects 10Mbps and 100Mbps domain with front LEDs display
In a Telecommunication co. the user expects a very reliable and high availability system,
which provide them the ability to join their existing 10Mbps network with fast ethernet. The
Magnum DS8016-R based on Dual-Speed with bridging facility communicate smoothly
between 10Mbps and 100Mbps . The front panel LED display and rear port connection gives
an adding advantage to run the neat network setup and help the user to trace out the defective
port easily. Magnum DS8016-R has an another adding feature to run at Dual-source 48VDC,
that gives a high availability and secure network.
