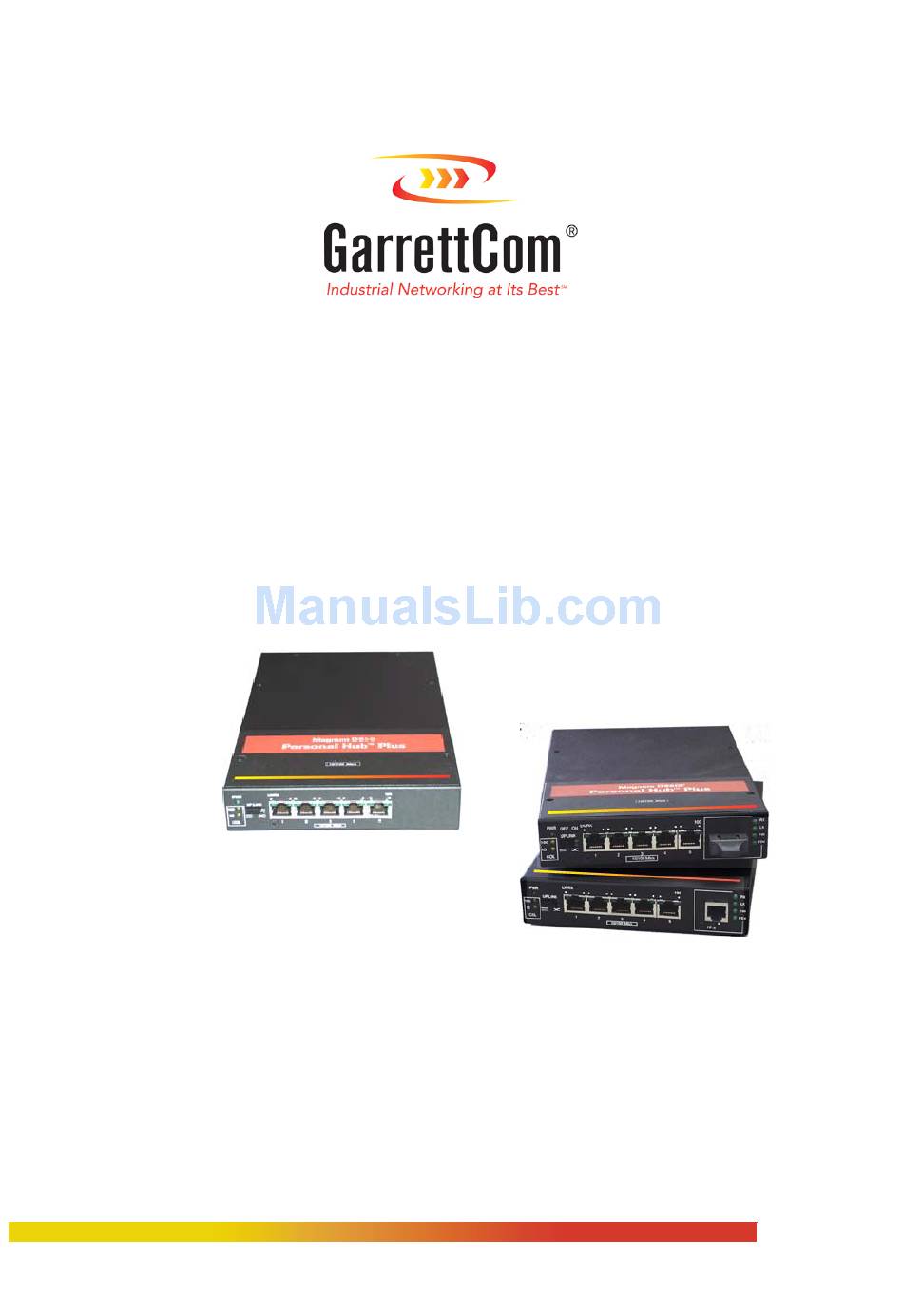

- Page 1 Magnum DS50 / DS60s Dual Speed Hubs Plus Installation and User Guide www GarrettCom com $5.00 USD...
- Page 2 NEBS is a trademark of Telcordia Technologies UL is a registered trademark of Underwriters Laboratories GarrettCom, Magnum and Personal Switch are trademarks and Personal Hub is a registered trademark of GarrettCom, Inc. Important: The Magnum DS50 / DS60 Dual-speed Hubs Plus contain no user serviceable parts.
- Page 3 Magnum DS50 / DS60s Dual Speed Hubs Contacting GarrettCom, Inc Please use the mailing address, phone and fax numbers and email address listed below: Website: http://www.GarrettCom.com email support@garrettcom.com Federal Communications Commission Radio Frequency Interference Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
-
Page 4: Table Of Contents
: Add 24VDC power option in Appendix B Rev C 11/01 : Change the company name to GarrettCom, Inc. (Formerly it was Garrett Communications). Add Fiber models to DS60s, add DIN-rail mounting option. : Addition of warnings in French language. Fiber information added. - Page 5 Magnum DS50 & DS60s Dual Speed Hubs ETHERNET CONNECTIVITY PRODUCTS "DESIGNED AND MANUFACTURED IN THE USA" GarrettCom offers the Magnum line of Ethernet LAN connectivity products with industry-standard functionality. through OEMs, integrators, distributors. 6K25 Managed Fiber Switches, Gigabit, 100 and 10 Mbps, fiber and copper ports, mix- and match.
-
Page 6: Specifications
Magnum DS50 / DS60s Dual Speed Hubs SPECIFICATIONS Technical Specifications Performance Port 1-5: Repeater Ports, with bridge between Data Rate: 10/100 Mbps (Dual-Speed) PDV (Path Delay Value): 80BT Port 6: Switched Port (DS60C only) 10/100Mbps (Dual-Speed) When set to “FF”:... - Page 7 Magnum DS50 / DS60s Dual Speed Hubs Power Supply (Internal) AC AC Power connector: IEC-type, male recessed, rear of chassis Power Input Voltage: 100 to 240 VAC (auto-ranging) Power Input Frequency: 47-63 Hz Power Consumption: typical 6 watts, 10 watts max.
-
Page 8: Ordering Information
Magnum DS50 / DS60s Dual Speed Hubs Ordering Information Magnum DS50 / DS60 Dual-speed Hubs Plus Models Magnum DS60C Magnum DS60F-MSC Magnum DS60F-SSC Magnum DS60F-SSC Magnum DS50 MST Conversion GarrettCom reserves the right to change specifications, performance characteristics, and/or model offerings without notice. -
Page 9: Introduction
This package should contain: Magnum DS50 or DS60s Dual-speed Hub Plus unit AC Power Cord (U.S. and other 115 vac locations only) Metal mounting brackets for optional vertical mounting... -
Page 10: Product Description
The Magnum DS60s will filter and forward the packets to / from port 6 and the other ports, thereby giving more bandwidth to each domain for maximum network performance. -

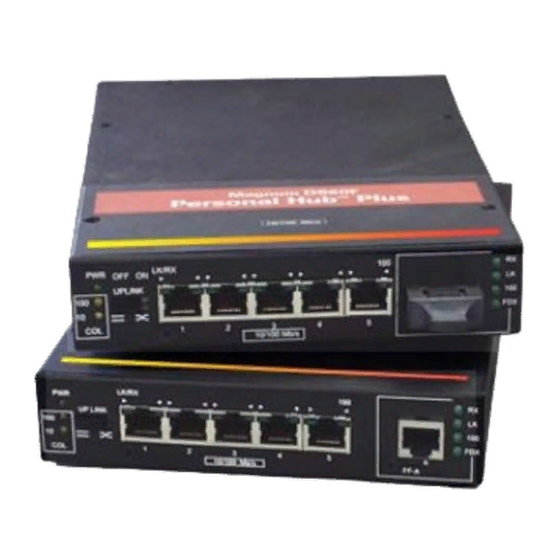

Page 11: Magnum Ds60F Ds Hubs Plus, With Fiber Switched Port
Magnum DS50 / DS60s Dual Speed Hubs DS60s are “plug and play” units enclosed in a lightweight, compact, rugged metal enclosure suitable for office, lab and industrial sites. The DS50 / DS60s are available for horizontal or vertical mounting (see Section 3.1). -
Page 12: Fiber Port, Sc Connector For Model Ds60F
(no media converter is required !) and supporting long (up to 40km) fiber cable distances for installation versatility. Port 6 (the fiber port) has an “F - H” user-selectable manual switch. When set in the “F” position, it forces full-duplex mode. When set in the “H” position, it forces half-duplex mode, still at 100Mbps speed. -
Page 13: Port #6: Switched 10/100 Mb/S Port For Ds60C Only
10BASE-T port or as a 100BASE- TX port. The speed may depend upon the attached unit’s speed. See section 4.3 for more details about the 10 or 100 switch. This switched port offers great flexibility in connecting the DS60C . . . as an additional 10/100Mb segment . -
Page 14: Ports 1-5: 10/100 Mb/S Shared Ports For Ds50 / Ds60
The up-link switch for Port 1 is located on the left side and enables port 1 to either connect to a user station or to cascade with another hub or switch. See section 4.4 for more details about up-link. -
Page 15: Bridge Logic Between The 10 Mbps And 100Mbps Domains
Up-link Switch for Cascading The unit has an up-link switch located next to Port # 1 of the hub. It enables the port’s cable to cascade to another shared hub or switching hub port. (See Section 4.4 for more details about up-link). -
Page 16: Frame Buffering And Latency
When the Switch detects that its free buffer queue space is low, the Switch sends industry standard (full-duplex only) PAUSE packets out to the devices sending packets to cause “flow control”. - Page 17 (when operating at half-duplex only). When the Switch detects that its free buffer queue space is low, the Switch prevents more frames from entering by forcing a collision signal on all receiving half-duplex ports in order to stop incoming traffic.
-
Page 18: Features And Benefits
The optional DC power supply with -48VDC or 24VDC qualifies the DS50 / DS60s for use in Industrial and telecom applications. www GarrettCom com Installation and User Guide (06/02) -
Page 19: Applications
Magnum DS50 / DS60s Dual Speed Hubs Applications The Magnum Dual-speed Hub Plus is designed to provide dual speed (10/100Mbps) connectivity. Pictured below, a Magnum DS50 Dual-speed Hubs serves a small office with mixed speed requirements. Some users operate at 100Mbps, and some users and utility devices (such as print servers) run at 10Mbps. - Page 20 Magnum DS50 / DS60s Dual Speed Hubs To add more 10/100Mb stations, another 10/100Mb workgroup can be added using a DS60C hub. By placing the Magnum DS60C Dual-speed Hub Plus in the middle, it acts as a bridge separating the 10Mb and the 100Mb traffic domains and provides each department with full bandwidth.
- Page 21 LINK LINK LINK UPLINK 10/100 M b/s FF-A Collecting Data from M/C Fig 2.4.4 DS60s in Industrial use for collecting data from the M/C www GarrettCom com Installation and User Guide (06/02) Magnum DS60 Personal Hub Plus LINK LINK LINK...
-
Page 22: Table-Top Or Shelf Mounting
Magnum DS50 / DS60s Dual Speed Hubs INSTALLATION This chapter provides instructions for installing the Magnum DS50 / DS60 Dual- speed Hub Plus. Locating the Magnum DS50 / DS60 Dual-speed Hubs Plus The location of the Magnum DS50 / DS60 Dual-speed Hub Plus is dependent on the physical layout of the network and the workgroup to be bridge-isolated. -
Page 23: Optional Mounting Methods, Din-Rail And E-Stand
Magnum DS50 / DS60s Dual Speed Hubs Each Magnum DS50 / DS60 Dual-speed Hub Plus is shipped with two mounting brackets (and screws), to allow the unit to be mounted in nearly any desired orientation or position. The brackets are attached to the unit’s case with one of the metal screws for each bracket. -
Page 24: Connecting Twisted Pair (Rj-45, Cat 3 Or Cat 5, Unshielded Or Shielded )
For Port # 1 or 1SW, if the LINK LED is not illuminated, move the switch which has a cross-over or up-link for linking to another hub or Switch. -
Page 25: Connecting Single-Mode Fiber Optic
Magnum DS50 / DS60s Dual Speed Hubs The LINK LED for the fiber connector will illuminate when a proper connection has been established at both ends (and when power is ON in the unit). If LINK is not lit after cable connection, the normal cause is improper cable polarity. Swap the fiber cables at the fiber connector to remedy this situation. -
Page 26: Connections To Nics Which Support Auto-Negotiation, Rj-45 Ports
3.2.5 Connections to NICs which support Auto-Negotiation, RJ-45 ports The copper ports of Magnum DS50 / DS60s will function properly with NICs (Network Interface Cards) which support Auto-Negotiation, and the Fast Link Pulse (FLP) coding for the 100BASE-TX signaling system. When connecting a NIC to a DS50 / DS60, it may be necessary to reload the NIC drivers on the user device if the NIC has been communicating with a protocol other than 100BASE-TX (such as 10BASE-T). - Page 27 Magnum DS50 / DS60s Dual Speed Hubs Each Fast Ethernet device component also has an associated BT delay, which depends on the physical signaling system employed. Table 3.2b shows each Fast Ethernet device component and the associated BT delay. Note that there is only one DTE pair associated with any device-to-device path.
- Page 28 Magnum hubs, 100 is the BT delay for the TX DTE pair, and a safety margin of 0 was used. (Note the internal switch on port 6 does not enter into this calculation of one collision domain’s cable lengths. If used, port 6 of the Magnum DS60C when set to 100Mb has a PDV of 50BT, the same as a NIC or node.).
-
Page 29: Powering The Magnum Ds50 / Ds60
Magnum DS50 / DS60s Dual Speed Hubs Table 3.2c: Maximum segment lengths for common network configurations Number Repeater Max. User of Hubs Hop Count Segment Lengths (m) Powering the Magnum DS50 / DS60 Magnum DS50 / DS60 Dual-speed Hub Plus incorporates an internal universal... -
Page 30: Operation
If it is a new node address coming in which the switch did not previously know about, it “learns” the new address and puts it in the correct port address table. See “Address Learning”... - Page 31 Magnum DS50 / DS60s Dual Speed Hubs Packet Source Source Address 10 Mbps Not in table 10Mbps Not in table 10Mbps In table 10Mbps In table 100Mbps Not in table 100Mbps Not in table 100Mbps In table 100Mbps In table Table 4.1: DS50 / DS60 Dual-Speed Hub Functionality...
-
Page 32: Auto-Negotiation And Speed-Sensing
Full duplex and Auto-negotiation mode at 10 or 100Mbps for the switched copper port can be done through the manual switch underneath the port it controls. Similarly the Fiber switched port at 100Mbps can be set at Full duplex as well as Half-duplex through the manual switch underneath the port it controls. -
Page 33: 4.4 Leds
Magnum DS50 / DS60s Dual Speed Hubs will be forwarded to the appropriate port, and will not be sent to the other ports where it is not needed. Traffic needed for maintaining the operation of the network (such as occasional multi- cast packets) is forwarded to all ports. -
Page 34: F-H) Manual Switch, Port 6 For Ds60F
After switching from Full fixed to auto-negotiation or vice versa, it is necessary that the unit be powered down and back up to reset the internal buffers of the switch. Even though it is not always required, powering down and up will enable proper packet handling in all cases for both segments of the network. -
Page 35: Troubleshooting
Magnum DS50 / DS60 and its associated cables are functioning properly. If the problem continues after completing Step 4 above, contact your supplier of the Magnum DS50 / DS60 unit (or if unknown, contact GarrettCom) by fax or by phone for assistance. www GarrettCom com... -
Page 36: When Calling For Assistance
Date of installation Failure symptoms, including a full description of the problem. GarrettCom will carefully test and evaluate all returned products, will repair products that are under warranty at no charge, and will return the warranty-repaired units to the sender with shipping charges prepaid (see Warranty Information, Appendix A, for complete details). -
Page 37: Fremont, Ca
GarrettCom, Inc. warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of shipment by GarrettCom. During this warranty period, GarrettCom will repair or, at its option, replace components in the products that prove to be defective at no charge other than shipping and handling, provided that the product is returned pre-paid to GarrettCom. -
Page 38: Appendix B : Optional 24Vdc Or -48Vdc Power Supply
Magnum DS50 / DS60s Dual Speed Hubs APPENDIX B : Optional 24VDC or -48VDC Power Supply B1.0 SPECIFICATIONS - FOR MAGNUM DS50 / DS60 DUAL-SPEED HUBS PLUS Power Supply (Internal -48VDC Option) DC Power Connector: 3 terminals: ( Input Voltage: Power Consumption: Model DS50 / DS60: 6 watts typical, 10 watts max. - Page 39 Magnum DS50 / DS60s Dual Speed Hubs B4.0 INSTALLATION This section describes the installation of the 24VDC or -48VDC power source leads to the 24VDC or - 48VDC power terminal block on the Magnum DS50 / DS60. (see figure right).
