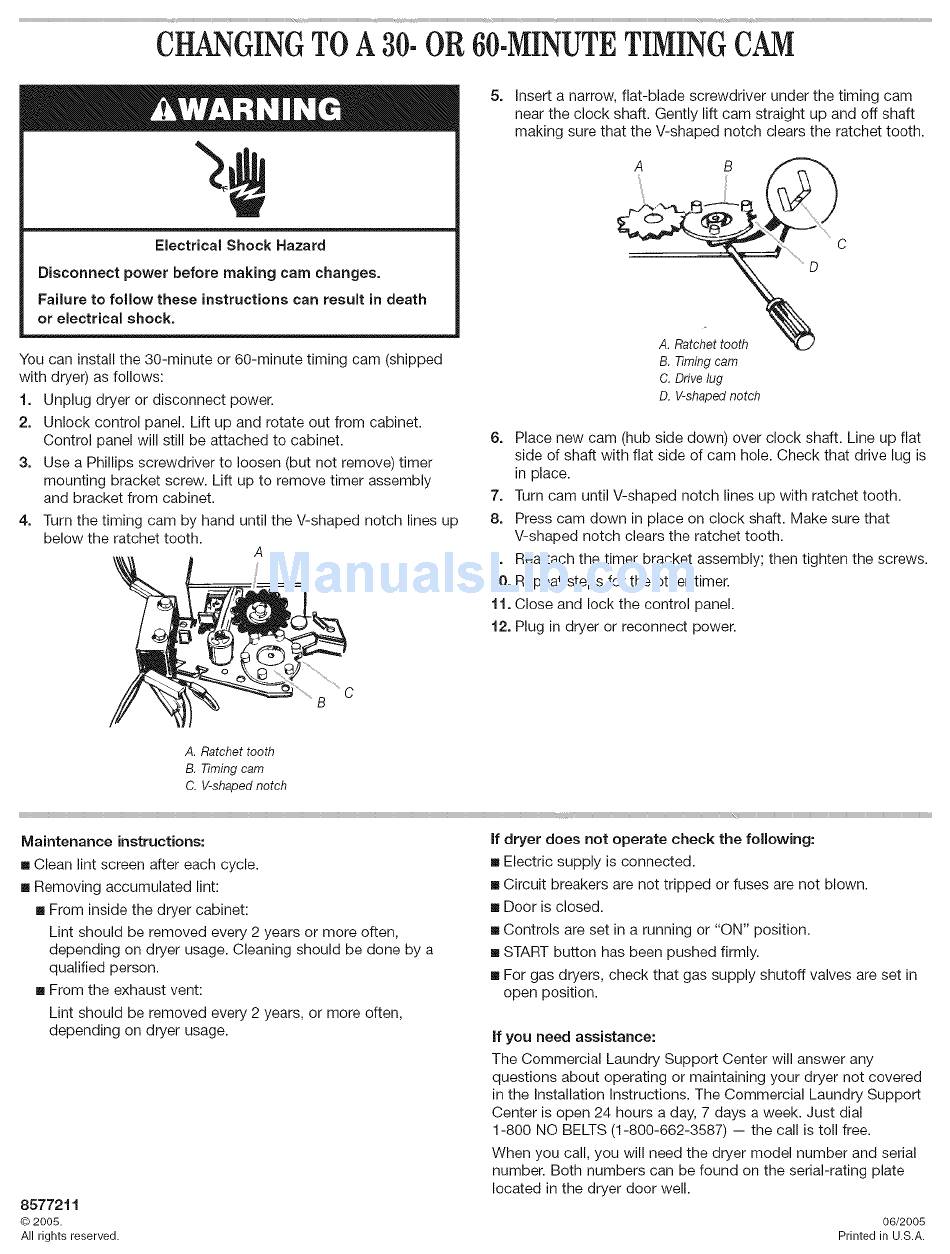

CHANGING TO A 30-OR60-MINUTE TIMINGCAM
Electrical
Shock Hazard
Disconnect
power before making cam changes.
Failure to follow
these instructions can result in death
or electrical shock.
You can install the 30-minute or 60-minute timing cam (shipped
with dryer) as follows:
t.
Unplug dryer or disconnect power.
2. Unlock control panel. Lift up and rotate out from cabinet.
Control panel will still be attached to cabinet.
3. Use a Phillips screwdriver to loosen (but not remove) timer
mounting bracket screw. Lift up to remove timer assembly
and bracket from cabinet.
4. Turn the timing cam by hand until the V-shaped notch lines up
below the ratchet tooth.
A
5=
Insert a narrow, flat-blade screwdriver under the timing cam
near the clock shaft. Gently lift cam straight up and off shaft
making sure that the V-shaped notch clears the ratchet tooth.
_ili.. •
i_
B. Timingcam
C. Drivelug
D. V-shaped notch
6. Place new cam (hub side down) over clock shaft. Line up flat
side of shaft with flat side of cam hole. Check that drive lug is
in place.
7. Turn cam until V-shaped notch lines up with ratchet tooth.
8. Press cam down in place on clock shaft. Make sure that
V-shaped notch clears the ratchet tooth.
9. Reattach the timer bracket assembly; then tighten the screws.
t0. Repeat steps for the other timer.
t 1. Close and lock the control panel.
t2. Plug in dryer or reconnect power.
A. Ratchet tooth
B. Timing cam
C. V-shaped notch
Maintenance
instructions:
[] Clean lint screen after each cycle.
[] Removing accumulated
lint:
[] From inside the dryer cabinet:
Lint should be removed every 2 years or more often,
depending on dryer usage. Cleaning should be done by a
qualified person.
[] From the exhaust vent:
Lint should be removed every 2 years, or more often,
depending on dryer usage.
8577211
© 2005.
AIIrightsreserved.
If dryer does not operate check the following:
[] Electric supply is connected.
[] Circuit breakers are not tripped or fuses are not blown.
[] Door is closed.
[] Controls are set in a running or "ON" position.
[] START button has been pushed firmly.
[] For gas dryers, check that gas supply shutoff valves are set in
open position.
if you need assistance:
The Commercial Laundry Support Center will answer any
questions about operating or maintaining your dryer not covered
in the Installation instructions. The Commercial Laundry Support
Center is open 24 hours a day, 7 days a week. Just dial
1-800 NO BELTS (1-800-662-3587)
-- the call is toll free.
When you call, you will need the dryer model number and serial
number. Both numbers can be found on the serial-rating plate
located in the dryer door well.
06/2005
Printed in U.S.A.
