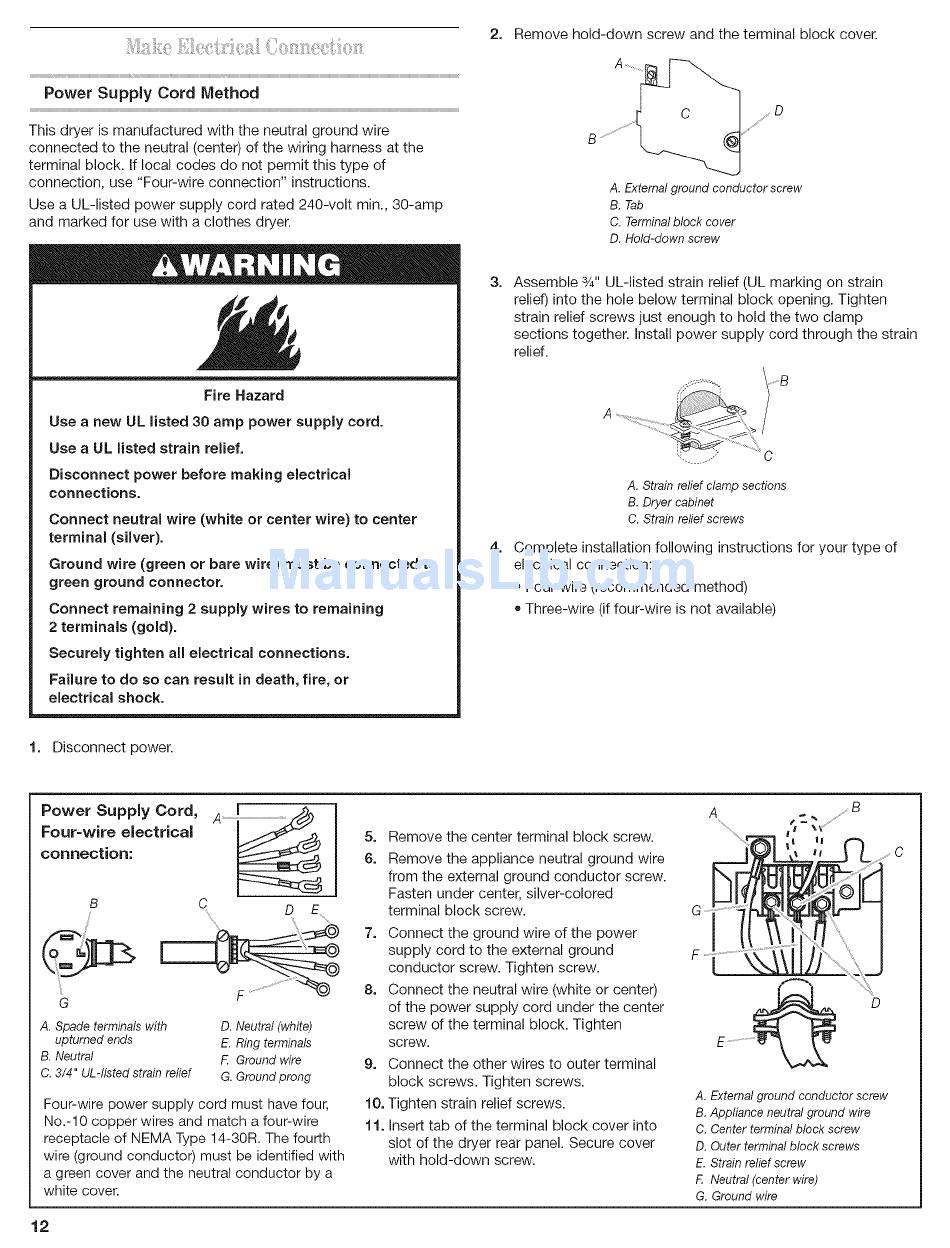

2. Remove hold-down screw and theterminal block cover.
Power
Supply
Cord Method
This dryer is manufactured with the neutral ground wire
connected to the neutral (center) of the wiring harness at the
terminal block. If local codes do not permit this type of
connection, use "Four-wire connection"
instructions.
Use a UL-listed power supply cord rated 240-volt min., 30-amp
and marked for use with a clothes dryer.
Fire Hazard
Use a new UL listed 30 amp power supply
cord.
Use a UL listed strain relief.
Disconnect power before making electrical
connections.
Connect neutral wire (white or center wire) to center
terminal
(silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining
2 supply wires to remaining
2 terminals
(gold).
Securely tighten all electrical
connections.
Failure to do so can result in death, fire, or
electrical
shock.
f.
Disconnect power.
_D
3=
A. External ground conductor screw
B. Tab
C. Terminal block cover
D. Hold-down screw
Assemble 3/4" UL-listed strain relief (UL marking on strain
relief) into the hole below terminal block opening. Tighten
strain relief screws just enough to hold the two clamp
sections together. Install power supply cord through the strain
relief.
4=
A. Strain relief clamp sections
B. Dryer cabinet
C. Strain relief screws
Complete installation following instructions for your type of
electrical connection:
• Four-wire (recommended method)
• Three-wire (if four-wire is not available)
Power
Supply Cord,
A..........................
Four=wire
electrical
connection:
B
G
A. Spadeterminalswith
upturnedends
B. Neutral
C. 3/4" UL-listedstrainrelief
C
D
E
D. Neutral (white)
E. Ring terminals
F. Ground wire
G. Ground prong
Four-wire
power supply
cord must have four,
No.-10
copper
wires and match a four-wire
receptacle
of NEMA Type 14-30R.
The fourth
wire (ground
conductor)
must be identified
with
a green cover and the neutral
conductor
by a
white cover.
5. Remove the center terminal block screw.
6. Remove the appliance neutral ground wire
from the external ground conductor screw.
Fasten under center, silver-colored
terminal block screw.
7. Connect the ground wire of the power
supply cord to the external ground
conductor screw. Tighten screw.
8. Connect the neutral wire (white or center)
of the power supply cord under the center
screw of the terminal block. Tighten
screw.
g. Connect the other wires to outer terminal
block screws. Tighten screws.
10. Tighten strain relief screws.
tl.
Insert tab of the terminal block cover into
slot of the dryer rear panel. Secure cover
with hold-down screw.
_B
.......
, . ....................
i+J
E...............
_
........
:D
A. External ground conductor screw
B. Appliance neutral ground wire
C. Center terminal block screw
D. Outer terminal block screws
E. Strain relief screw
F. Neutral (center wire)
G. Ground wire
12
