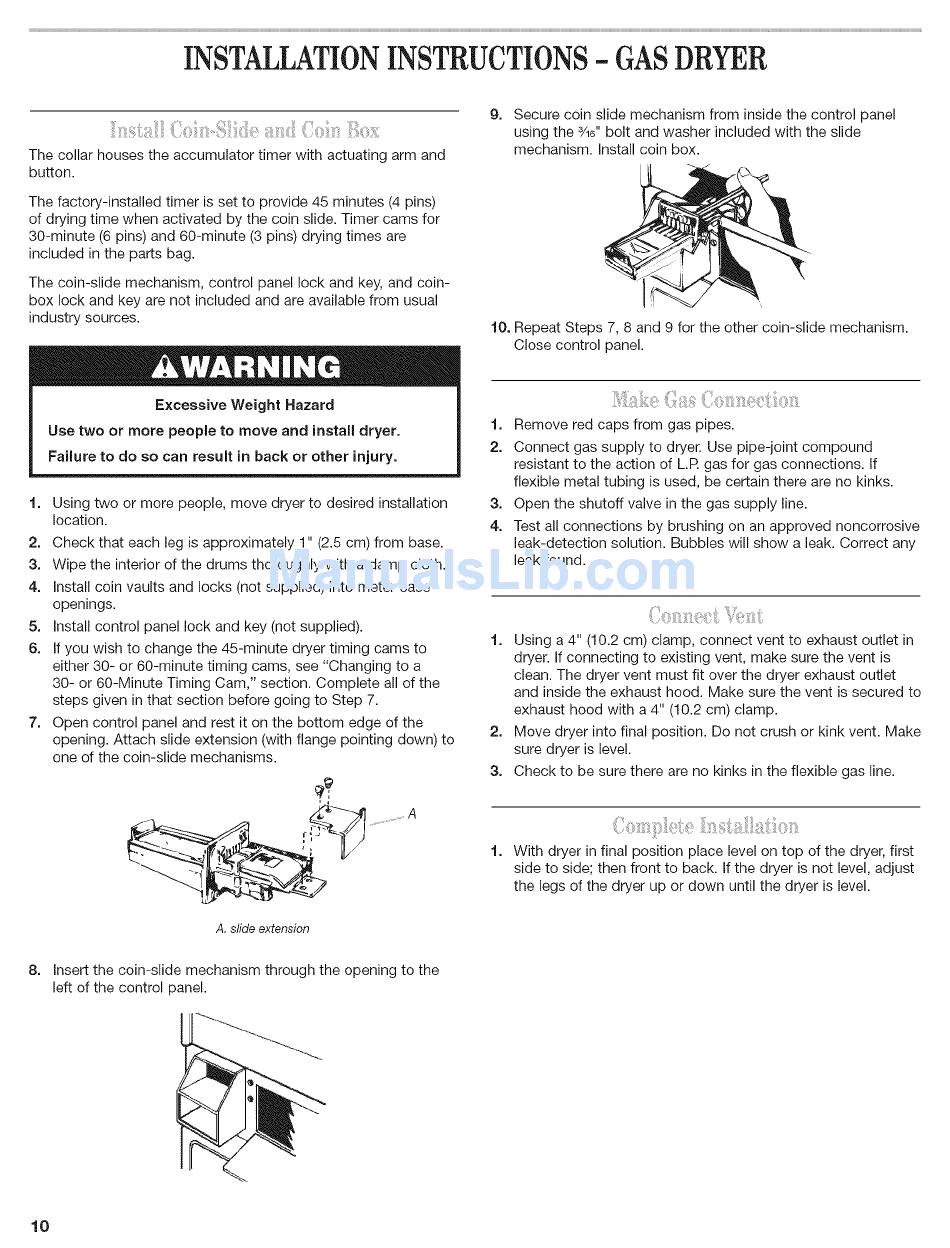

INSTALLATION INSTRUCTIONS - GASDRYER
The collar houses the accumulator timer with actuating arm and
button.
The factory-installed
timer is set to provide 45 minutes (4 pins)
of drying time when activated by the coin slide. Timer cams for
30-minute (6 pins) and 60-minute (3 pins) drying times are
included in the parts bag.
The coin-slide mechanism, control panel lock and key, and coin-
box lock and key are not included and are available from usual
industry sources.
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or ether injury.
t.
Using two or more people, move dryer to desired installation
location.
2. Check that each leg is approximately
1" (2.5 cm) from base.
3. Wipe the interior of the drums thoroughly with a damp cloth.
4. Install coin vaults and locks (not supplied) into meter case
openings.
5. Install control panel lock and key (not supplied).
6. If you wish to change the 45-minute dryer timing cams to
either 30- or 60-minute timing cams, see "Changing to a
30- or 60-Minute Timing Cam," section. Complete all of the
steps given in that section before going to Step 7.
7. Open control panel and rest it on the bottom edge of the
opening. Attach slide extension (with flange pointing down) to
one of the coin-slide mechanisms.
A. slide extension
Secure coin slide mechanism from inside the control panel
using the 3/16"bolt and washer included with the slide
mechanism. Install coin box.
t0. Repeat Steps 7, 8 and 9 for the other coin-slide mechanism.
Close control panel.
t=
2.
3=
4.
Remove red caps from gas pipes.
Connect gas supply to dryer. Use pipe-joint compound
resistant to the action of L.R gas for gas connections. If
flexible metal tubing is used, be certain there are no kinks.
Open the shutoff valve in the gas supply line.
Test all connections by brushing on an approved noncorrosive
leak-detection
solution. Bubbles will show a leak. Correct any
leak found.
t.
Using a 4" (10.2 cm) clamp, connect vent to exhaust outlet in
dryer. If connecting to existing vent, make sure the vent is
clean. The dryer vent must fit over the dryer exhaust outlet
and inside the exhaust hood. Make sure the vent is secured to
exhaust hood with a 4" (10.2 cm) clamp.
2. Move dryer into final position. Do not crush or kink vent. Make
sure dryer is level.
3. Check to be sure there are no kinks in the flexible gas line.
With dryer in final position place level on top of the dryer, first
side to side; then front to back. If the dryer is not level, adjust
the legs of the dryer up or down until the dryer is level.
8=
Insert the coin-slide mechanism through the opening to the
left of the control panel.
