Step 3 Remove Toekick; Step 4 Install Power Cord - GE GLD4160L00SS Installation Instructions Manual

Built-in dishwasher
Hide thumbs

Advertisement

Table of Contents
Installation
Instructions

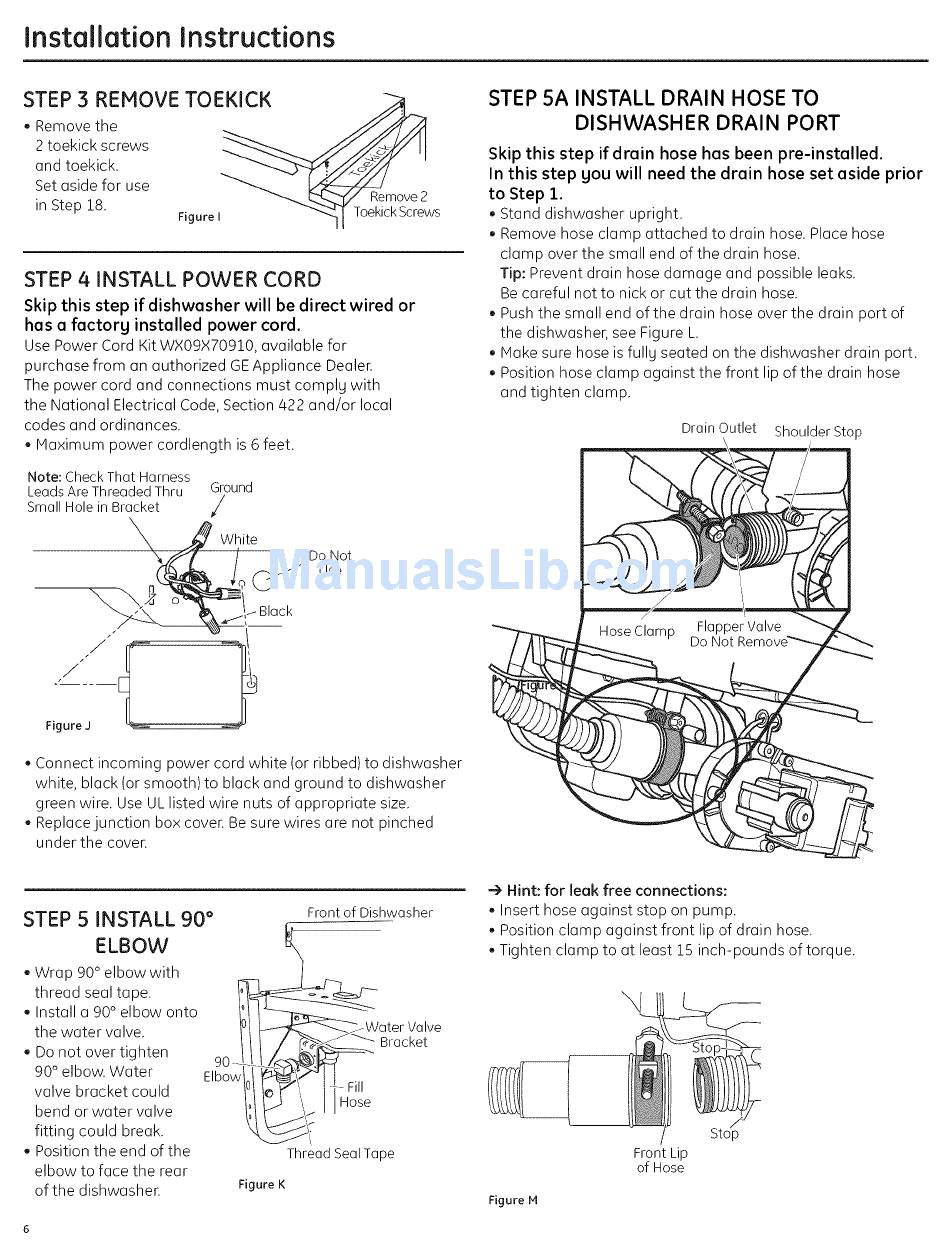

STEP 3 REMOVE TOEKICK
/_._
, Remove the
_
/7//f
,//1
2 toekick screws
_
I
and toekick.
--__///A/o_/f_"
'1
Set aside for use
"_
-
[.-'_--_-/
.....
_
k--q_--,(/
Remove2
In b_:ep ±_.
Figure,
--_--_
Toekick Screws
STEP 4 INSTALL POWER CORD
Skip this step if dishwasher
will be direct wired or
has a factorg
installed
power cord.
Use Power Cord Kit WX09X70910, available for
purchase from an authorized GEAppliance Dealer.
The power cord and connections must compl9 with
the National Electrical Code, Section 422 and/or local
codes and ordinances.
, Haximum power cordlength is 6 feet.
Note: Check That Harness
Leads Are Threaded
Thru
Ground
/
Small Hole in Bracket
/
White
Do Not
Use
Figure
J
, Connect incoming power cord white (or ribbed) to dishwasher
white, block (or smooth) to block and ground to dishwasher
green wire. Use UL listed wire nuts of appropriate size.
Replace junction box cover. Be sure wires ore not pinched
under the cover.
STEP 5A INSTALL DRAIN HOSE TO
DISHWASHER DRAIN PORT
Skip this step if drain hose has been pre-installed.
In this step gou will need the drain hose set aside prior
to Step 1.
, Stand dishwasher upright.
, Remove hose clamp attached to drain hose. Place hose
clamp over the small end of the drain hose.
Tip: Prevent drain hose damage and possible leaks.
Be careful not to nick or cut the drain hose.
Push the small end of the drain hose over the drain port of
the dishwasher, see Figure L
, Hake sure hose is fullg seated on the dishwasher drain port.
, Position hose clamp against the front lip of the drain hose
and tighten clamp.
Drain Outlet
Shoulder
Stun
\
STEP 5 INSTALL 90 °
ELBOW
, Wrap 90 ° elbow with
thread seal tape.
, Install o 90° elbow onto
the water valve.
, Do not over tighten
90° elbow. Water
valve bracket could
bend or water valve
fitting could break.
, Position the end of the
elbow to face the rear
of the dishwasher.
90
Elbow
Front of Dishwasher
__/_
trercV_,tve
Thread Seal Tape
Figure
K
Hint: for leek free connections:
, Insert hose ogoinst stop on pump.
, Position clamp ogoinst front lip of drain hose.
, Tighten clamp to at least 15 inch-pounds of torque.
Stop
Front Lip
of Hose
Figure
M
