STEP 12 POSITION DISHWASHER, SECURE
TO COUNTERTOP OR CABINET
In this step you will need the 2 Phillips speciol head
screws set oside prior to Step 1.
The dishwasher must be secured to the countertop or
the cabinet sides. For dishwashers which require side mounting
brackets, order part GPF65 from your authorized GEAppliance
Dealer.
Tip: Prevent door panel and control panel damage.
Dishwasher must be positioned so the front panel and
control panel do not contact the adjacent cabinets or
countertop. Mounting screws must be driven straight
and flush. Protruding screw heads could scratch the
door panel or control panel and interfere with door
operation.
Secure dishwasher to underside of wood countertop.
o Recheck alignment of the dishwasher in the cabinet. Refer to
Step !0, Figure Rand Step 11. Door panel
and/or control panel must not hit cabinets or countertop.
o Fasten the dishwasher to the underside of the countertop
with the 2 Phillips special head screws provided. Refer to
Figure U. Make certain screws are driven straight and flush to
prevent panel damage.
Brackets
Wood Countertop
/
A
Figure
U

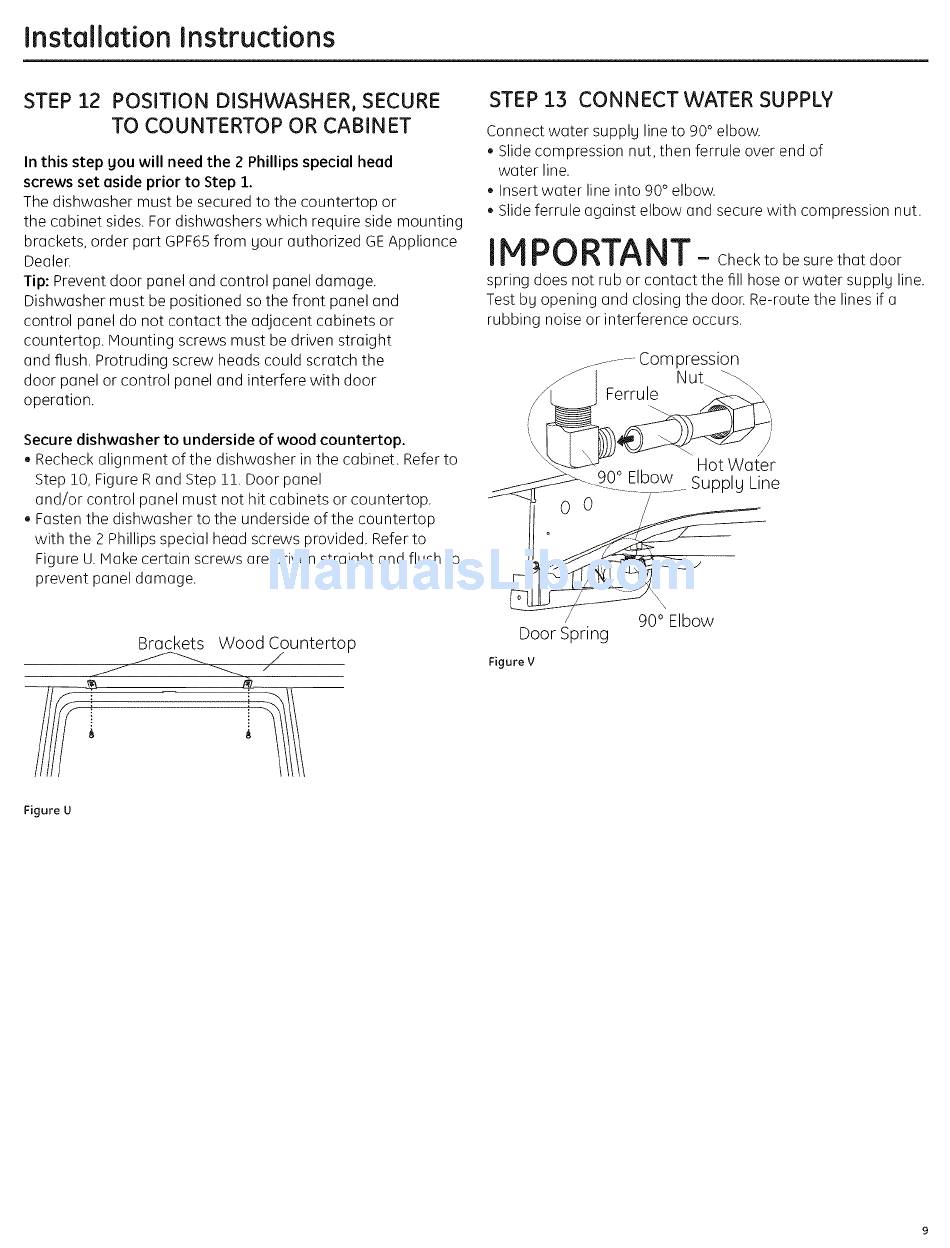

STEP 13 CONNECT WATER SUPPLY
Connect water supply line to g0 ° elbow.
Slide compression
nut, then ferrule over end of
water line.
Insert water line into 90 ° elbow.
Slide ferrule against elbow and secure with compression
nut.
IMPORTANT-
Checkto
be sure that door
spring does not rub or contact the fill hose or water supply line.
Test by opening and closing the door. Re-route the lines if a
rubbing noise or interference occurs.
........... C ompression
Nut
Ferrule
Hot Water
_--_90°E!b°w
Supply Line
Door Spring
Figure V
