Installation
Instructions

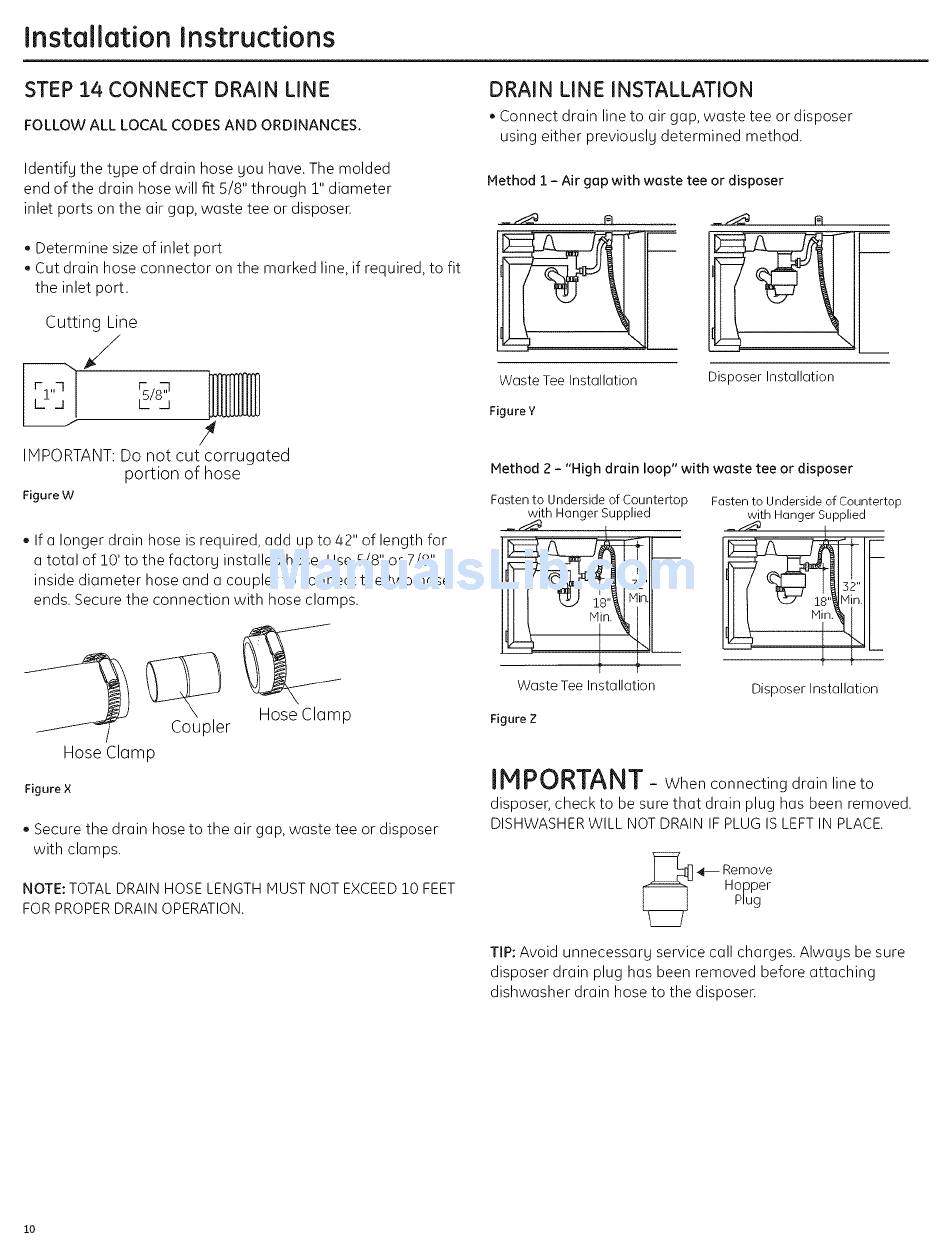

STEP 14 CONNECT DRAIN LINE
FOLLOW ALL LOCAL CODESAND ORDINANCES.
Identify the type of drain hose you have. The molded
end of the drain hose will fit 5/8" through 1" diameter
inlet ports on the air gap, waste tee or disposer.
o Determine size of inlet port
Cut drain hose connector on the marked line, if required, to fit
the inlet port.
Cutting Line
IMPORTANT: Do not cut corrugated
portion of hose
Figure
W
, If a longer drain hose is required, add up to 42" of length for
a total of !0' to the factory installed hose. Use 5/8" or 7/8"
inside diameter hose and a coupler to connect the two hose
ends. Secure the connection with hose clamps.
Hose Clamp
Hose Clamp
Coupler
Figure
×
Secure the drain hose to the air gap, waste tee or disposer
with clamps.
NOTE:TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED !0 FEET
FOR PROPER DRAIN OPERATION.
DRAIN LINE INSTALLATION
, Connect drain line to air gap, waste tee or disposer
using either previously determined method.
Method
1 - Air gap with
waste
tee or disposer
Waste Tee Installation
Disposer
Installation
Figure V
Method
2 - "High drain
loop" with
waste tee or disposer
Fasten to Underside of Countertop
with Hanger Supplied
Waste Tee Installation
Fasten to Underside
of Countertop
with Hanger Supplied
Disposer
Installation
Figure
Z
IMPORTANT
- When connecting drain line to
disposer, check to be sure that drain plug has been removed.
DISHWASHER WILL NOT DRAIN IF PLUGISLEFTIN PLACE.
Remove
Hopper
Plug
TIP: Avoid unnecessary service call charges. Always be sure
disposer drain plug has been removed before attaching
dishwasher drain hose to the disposer.
lo
