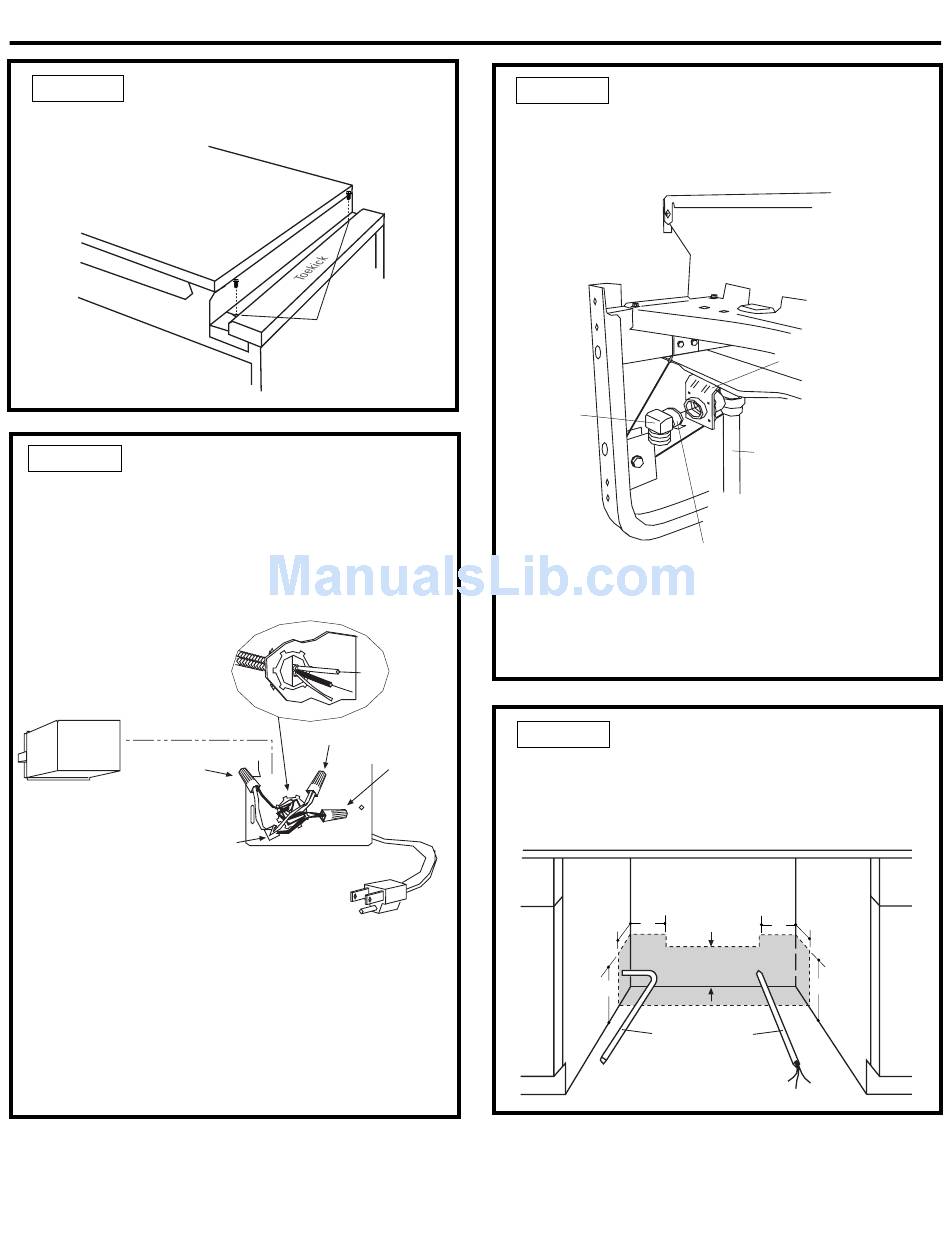

STEP 3 REMOVE TOEKICK

• Remove the two toekick screws.
Figure I

STEP 4 INSTALL POWER CORD

Skip this step if dishwasher will be direct wired or has
a factory installed power cord.
The power cord and connections must comply with
the National Electrical Code, Section 422 and/or
local codes and ordinances.
• Maximum power cord length is 6 feet.
A
C
Remove
Insert Power
Junction Box
Cord Wires Thru
Cover
Strain Relief
and Tighten
Ground
B
Check That White, Black and
Green Dishwasher Wires Are Threaded
Thru Small Hole in Bracket
Figure J
• Connect incoming power cord white (or ribbed) to
dishwasher white, black (or smooth) to black and
ground to dishwasher green wire. Use UL listed wire
nuts of appropriate size.
• Replace junction box cover. Be sure wires are not
pinched under the cover.
Installation Instructions
Remove 2
Toekick Screws
White
Black
D
Use UL Listed
Wire Nuts
STEP 5 INSTALL 90° ELBOW
• Wrap 90° elbow with thread seal tape.
• Install a 90° elbow onto the water valve.
90°
Elbow
Figure K
• Do not over tighten 90° elbow, water valve bracket
could bend or water valve fitting could break.
• Position the end of the elbow to face the rear of the
dishwasher.
STEP 6 POSITION WATER LINE
AND HOUSE WIRING
• Position water supply line and house wiring on the
floor of the opening to avoid interference with base
of dishwasher and components under dishwasher.
5"
4"
6"
Figure L
6
Front of Dishwasher
Water Valve
Bracket
Fill
Hose
Thread Seal Tape
5"
4"
4"
6"
Water
House
Line
Wiring
