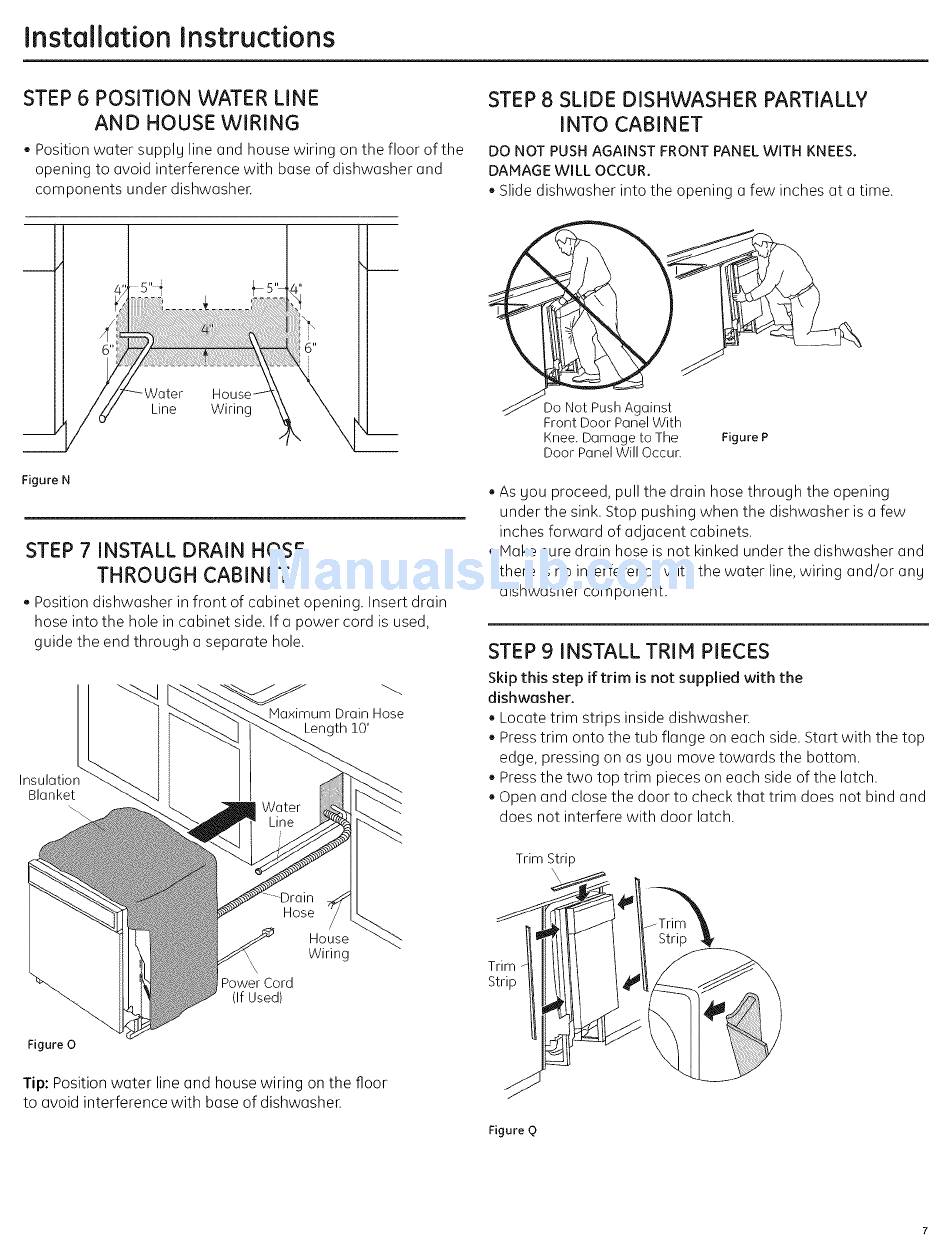

Step 6 Position Water Line And House Wiring; Step 7 Install Drain Hose, Through Cabinet; Step 8 Slide Dishwasher Partially Into Cabinet; Step 9 Install Trim Pieces - GE GLD4160L00SS Installation Instructions Manual

Built-in dishwasher
Hide thumbs

Advertisement

Table of Contents
Installation
Instructions
STEP 6 POSITION WATER LINE
AND HOUSE WIRING
, Position water supply line and house wiring on the floor of the
opening to avoid interference with base of dishwasher and
components under dishwasher.
STEP 8 SLIDE DISHWASHER PARTIALLY
INTO CABINET
DO NOT PUSHAGAINST FRONT PANELWITH KNEES.
DAMAGE WILL OCCUR.
, Slide dishwasher into the opening a few inches at a time.
House _
Line
Wiring
Figure
N
STEP 7 INSTALL DRAIN HOSE,
THROUGH CABINET
, Position dishwasher in front of cabinet opening. Insert drain
hose into the hole in cabinet side. Ifa power cord is used,
guide the end through a separate hole.
Maximum Drain Hose
Length 10'
Insulatior
Blanket
Do Not Push Against
Front Door Panel With
Knee. Damage
to The
Door Panel Will Occun
Figure P
, As you proceed, pull the drain hose through the opening
under the sink. Stop pushing when the dishwasher is a few
inches forward of adjacent cabinets.
, Make sure drain hose is not kinked under the dishwasher and
there is no interference with the water line, wiring and/or any
dishwasher component.
STEP 9 INSTALL TRIM PIECES
Skip this step if trim is not supplied with the
dishwasher.
o Locate trim strips inside dishwasher.
, Press trim onto the tub flange on each side. Start with the top
edge, pressing on as you move towards the bottom.
, Press the two top trim pieces on each side of the latch.
Open and close the door to check that trim does not bind and
does not interfere with door latch.
Hose
/
House
Wiring
Power Cord
(If Used)
Trim
Strip
Trim Strip
\
\
Figure
0
Tip: Position water line and house wiring on the floor
to avoid interference with base of dishwasher.
Figure
Q
