Kenmore Electronic three-speed automatic washers Owner's Manual And Installation Instructions page 10

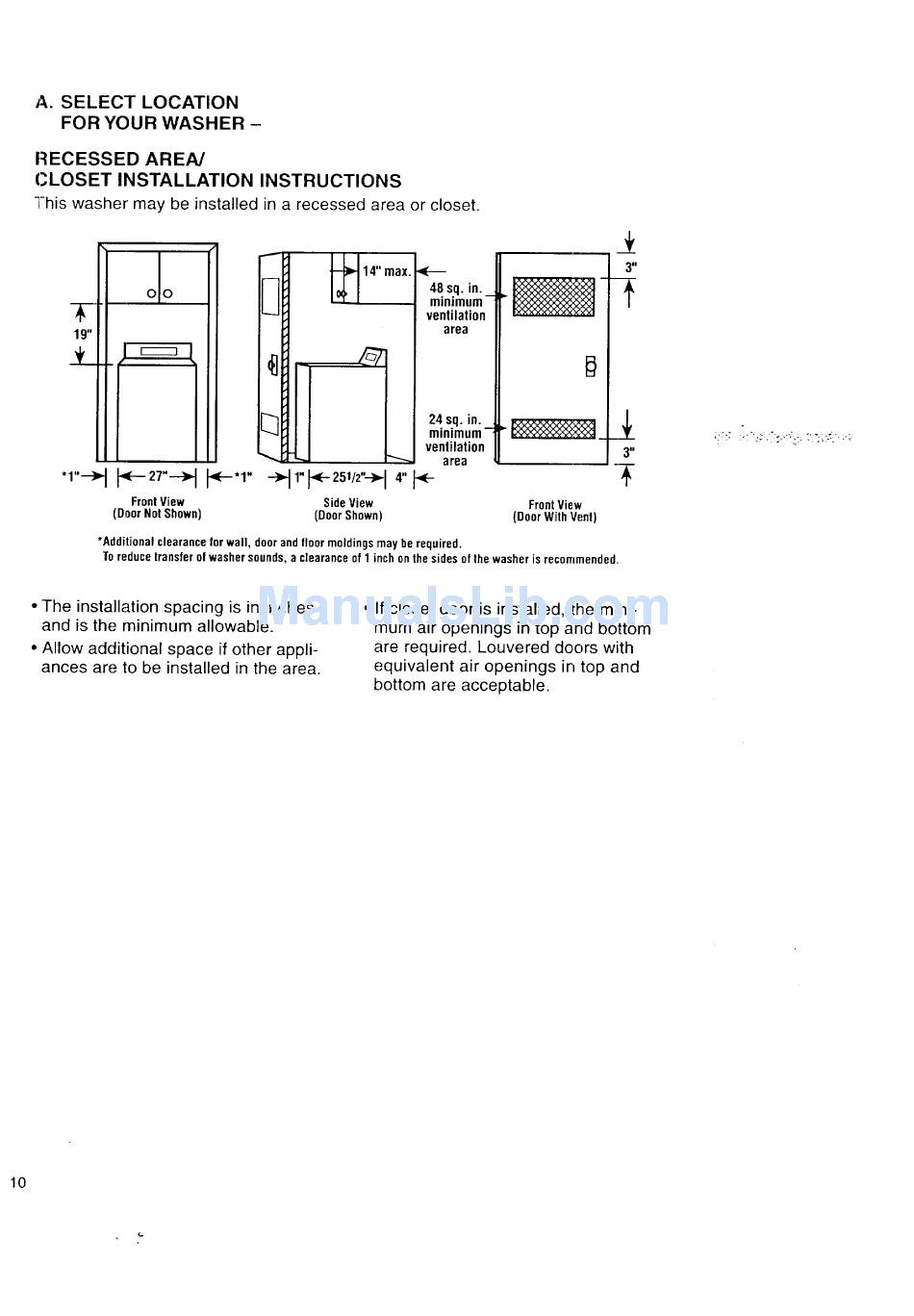

A. SELECT LOCATION
FOR YOUR WASHER -
RECESSED AREA/
CLOSET INSTALLATION INSTRUCTIONS
-]-his washer may be installed in a recessed area or closet.
olo /
"1"_ J-<----27"---)_<F--*I"
FrontView
(DoorNotShown)
48 sq. in.
minimum
ventilation
area
24sq. in.
minimum-
ventilation
area
Side View
(DoorShown)
3"
E}
3"
Front View
(DoorWith Vent)
*Additional clearance Ior wall, door and floor moldings may be required.
To reduce transfer of washer sounds, a clearance of 1 inch on the sides of the washer is recommended.
• The installation spacing is in inches
and is the minimum allowable.
• Allow additional space if other appli-
ances are to be installed in the area.
• If closet door is installed, the mini-
mum air openings in top and bottom
are required• Louvered doors with
equivalent air openings in top and
bottom are acceptable.
10
