Installation Instructions

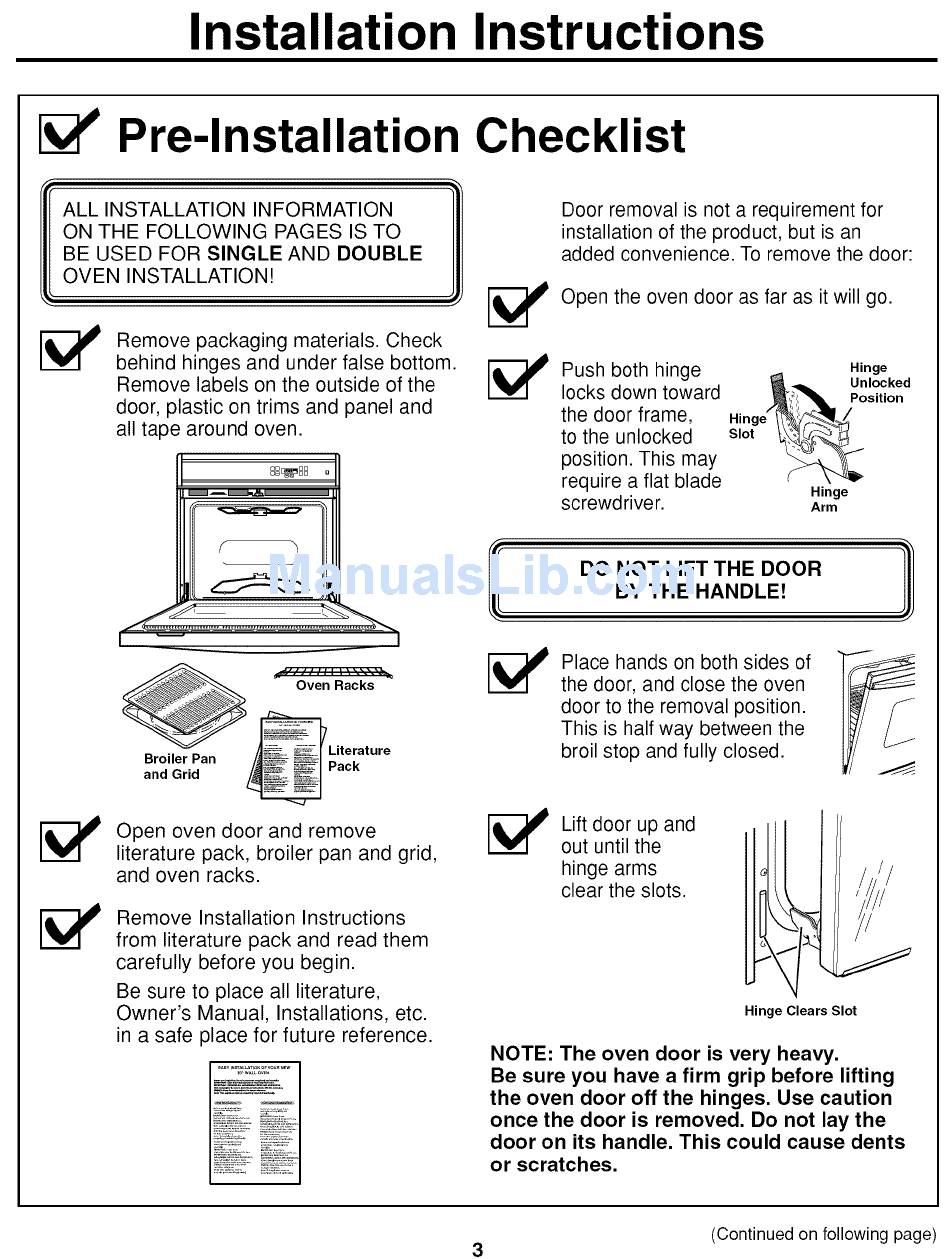

Pre-lnstallation Checklist
ALL INSTALLATION INFORMATION
ON THE FOLLOWING PAGES IS TO
BE USED FOR SINGLE AND DOUBLE
OVEN INSTALLATION!
Remove packaging materials. Check
behind hinges and under false bottom.
Remove labels on the outside of the
door, plastic on trims and panel and
all tape around oven.
ou uu
UB _E_ UU
J]J!
I -- I
_ Oven Racks _
_ Liat:kature
Open oven door and remove
literature pack, broiler pan and grid,
and oven racks.
Remove Installation Instructions
from literature pack and read them
carefully before you begin.
Be sure to place all literature,
Owner's Manual, Installations, etc.
in a safe place for future reference.
=_.-=-. = .......... .
Door removal is not a requirement for
installation of the product, but is an
added convenience. To remove the door:
Open the oven door as far as it will go.
[_ Push both hinge
Hinge _L._q_. Unlocked
locks down toward _I_:'_'_. Position
the door frame, Hinge"I_
to the unlocked
Slot _._...'_f_..._
position. This may
require a flat blade
Hinge
screwdriver.
Arm
([ DO NOT LIFT THE DOOR l}1
BY THE HANDLE!
[_ lace hands on both sides of
the door, and close the oven
door to the removal position.
This is half way between the
broil stop and fully closed.
[_ ift door up and
out until the
hinge arms
clear the slots.
Hinge Clears Slot
NOTE: The oven door is very heavy.
Be sure you have a firm grip before lifting
the oven door off the hinges. Use caution
once the door is removed. Do not lay the
door on its handle. This could cause dents
or scratches.
(Continued on following page)
3
