Installation
Instructions

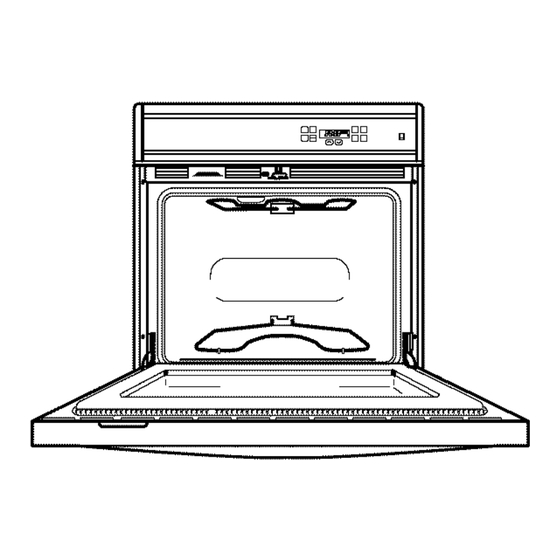

27" Built-In Wall Oven
JKP20, JKP25, JKP28, JKP48, JKP50, JK915,
JK955, JKS06, ZEK938,
ZEK958
If you have questions, call 1.800.GE.CARES or visit our website at:
www.GEAppliances.com
Before You Begin
Read these instructions
carefully and completely.
• IMPORTANT-save
these
instructions
for local inspector's
use.
• IMPORTANT-observe a,
governing
codes and ordinances.
• Note to Installer--Be
sure to leave these
instructions
with the consumer.
• Note to ConsumermKeep
these
instructions
for future reference,
• Proper installation
is the responsibility
of the installer
and product
failure due
to improper
installation
is NOT covered
under warranty.
• NOTE--This
appliance
must be properly
grounded.
• ATTENTION INSTALLER
All electric wall ovens must be hard wired
(direct wired) into an approved junction
box. A plug and receptacle
is NOT permitted
on these products.
Parts Included
Screws for
Installation
Metal
Bottom Trim
Optional
Metal Bottom Trim
Plastic
Bottom Trim
Optional
Metal Bottom
Trim Assembly
(on some models)
Materials Needed
4__
_o
WireNu_t S
Strain Relief Clamp
Junction
for 1/2" conduit
Box
_£.
_
36" of String
Tools Needed
1/8" Drill Bit and
Electric or Hand Drill
Phillips
Screwdriver
220c4053P504-4
31-10523-4
06-04JR
Advertisement
Table of Contents
Related Manuals for GE JKP20
Summary of Contents for GE JKP20

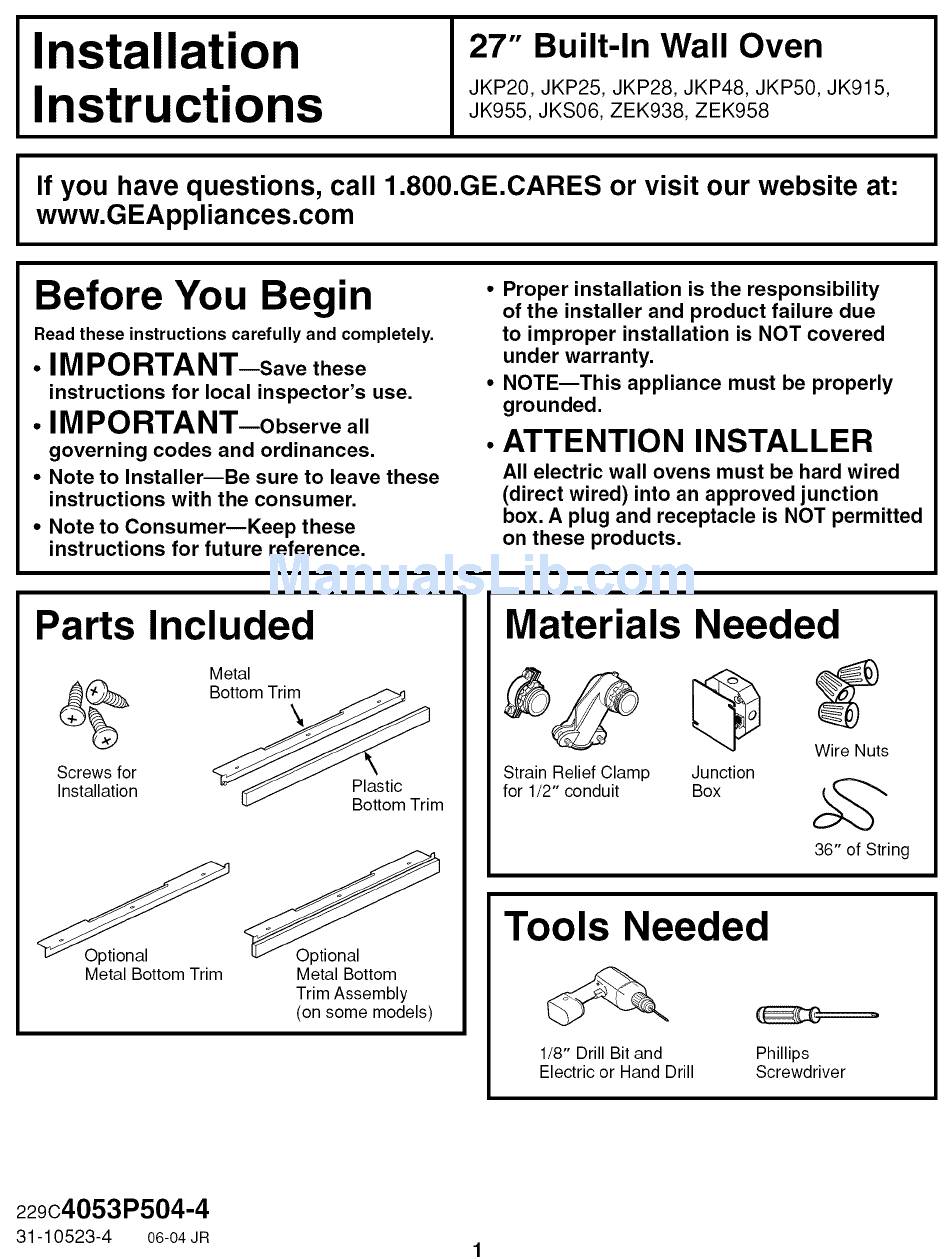

- Page 1 Installation 27" Built-In Wall Oven Instructions JKP20, JKP25, JKP28, JKP48, JKP50, JK915, JK955, JKS06, ZEK938, ZEK958 If you have questions, call 1.800.GE.CARES or visit our website at: www.GEAppliances.com Before You Begin • Proper installation is the responsibility of the installer...
- Page 2 Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Electrical For Your Safety Requirements • Be sure your oven is installed properly a qualified installer or service technician. This appliance must be supplied with the • Be sure the oven is securely installed in a proper voltage and frequency, and connected cabinet that is firmly attached to the house...
-
Page 3: Pre-Lnstallation Checklist
Installation Instructions Pre-lnstallation Checklist ALL INSTALLATION INFORMATION Door removal is not a requirement ON THE FOLLOWING PAGES IS TO installation of the product, but is an BE USED FOR SINGLE AND DOUBLE added convenience. To remove the door: OVEN INSTALLATION! Open the oven door as far as it will go. - Page 4 Installation Instructions [_ Pre-lnstallation Checklist cont. Remove the bottom trim from the top lace the oven on a table or platform of the oven. It will be installed at the even with the cutout opening. (Platform must support 150 Ibs. single, end of the installation process.
- Page 5 Installation Instructions Cutout for Sin le Built-In Oven Cabinet Cabinet Width 27" Width Junction Box 27" Location Recommended Minimum Cutout Location Cutout from Floor 32 1/2" Width Allow 718" for 25" Min. overlap of oven 23 1/2" Min. 25 1/4" Max. Cutout Depth over side edges of cutout ----..._...
-
Page 6: Cutout For Double Built-In Oven
Installation Instructions Cutout for Double Built-In Oven Cabinet Width 27" Junction Box Location Recommended Minimum Width Cabinet __ 27" Cutout Location from Floor 13 114" Cutout Width 25" Min. 23 5/8" Min. Cutout Depth Allow 7/8" for 25 1/4" Max. overlap of oven Cutout Width 25"... -
Page 7: Cutout For Single Built-In Oven Under Counter
Installation Instructions Cutout for Single Built-In Oven Under Counter Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for cutout size. See label on top of oven for approved cooktop models. Gas and electrical connections 240V / 208V Junction Box for gas cooktop must be located... -
Page 8: Electrical Connections
Installation Instructions Electrical Connections Turn off the circuit breaker or remove ATTENTION INSTALLER fuses to the oven branch circuit. All electric wall ovens must be hard wired With the oven supported on a table or (direct wired) into an approved junction platform in front of the cabinet opening,... - Page 9 Installation Instructions IBI Electrical Connections cont New Construction and Three-Conductor Branch Four-Conductor Branch Circuit Connection Circuit Connection When connecting to a three-conductor branch circuit, if local codes permit: • When installing in new construction, a. Connect the bare oven ground conductor •...
-
Page 10: Securing The Oven In The Opening
Installation Instructions Securing the Oven in the Opening Sliding the Oven Into the Drilling the Pilot Holes and Opening Mounting the Oven a. Loop (do not tie) a 36" string around the conduit before the oven is slid into place. NOTE: Before drilling the pilot holes, This will keep the conduit from falling make sure the oven is pushed as far... - Page 11 Installation Instructions To install a single metal bottom trim assembly (on some models), use sections C3 and C4. To install a metal bottom trim with a plastic bottom trim (on some models), use sections C3-C5. Preparing for the Bottom Installing the Plastic Bottom Trim Installation Trim (on some models)
- Page 12 Installation Instructions 151 Replacing the Oven Door _'-_ Open the oven door as far as it NOTE: The oven door is heavy. You will open. may need help lifting the door high enough to slide it into the hinge slots. _"_ Push the hinge locks up against the Do not lift the door by the handle.
-
Page 13: Pre-Test Checklist
Installation Instructions Pre-Test Checklist Check that the bottom trim is installed emove all protective film, if present, properly (see page 11). and any stickers. Check to be sure the mounting screws Check to be sure that all wiring is are installed and flush with the side trim secure and not pinched or in contact with moving parts. - Page 14 NOTES...
