GE JK915 Dimensions And Installation Information

JK915BF/CF/WF

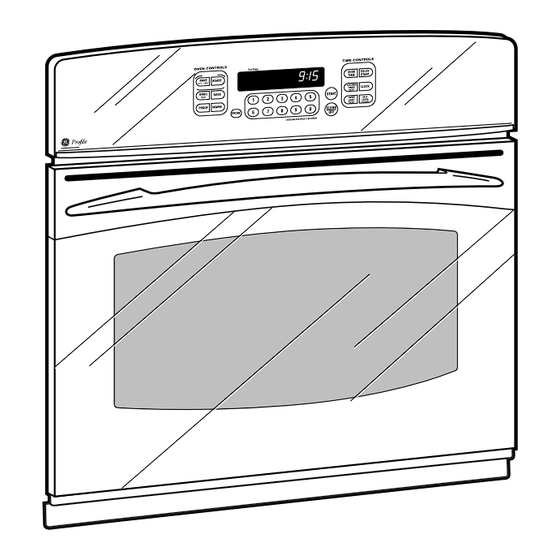

GE Profile 27" Built-In Single Oven
™
Dimensions and Installation Information
KW Rating
Cabinet
240V
3.4
208V 2.6
Breaker Size
240V 20 Amps
208V 20 Amps
Note: These ovens are not
approved for stackable or
side-by-side installations.
These ovens can be installed
side-by-side with no less
than 30" distance between
center-to-center of each oven.
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec
of at least a 194°F temperature rating. For 27" built-in single ovens, if marks,
blemishes or the cutout opening is visible above the installed oven, it may
be necessary to add wood shims under the runners and front trim until
the marks or openings are covered. Electric wall ovens are not approved
for installation with a plug and receptacle. They must be hard wired in
accordance with installation instructions.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
For answers to your Monogram, GE Profile
®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
A - Cabinet Width Required
B - Minimum Cabinet Depth
C - Opening Width
D - Opening Height
Oven
E - Overall Depth
w/o trim
F - Overall Height with trim
G - Overall Width
or
™
service,
27"
27" min.
23-5/8"
25" min. - 25-1/4"
27-5/8" min. - 28-1/8" max.
23-5/8"
28-1/4"
29"
26-5/8"
Suitable
bracing
to support
runners
(Pub. 1-G003 pg. 107) April 28, 1993
Allow 3/4"
for overlap
over all edges
of cutout
B MIN.
G
F
E
Conduit 48-1/2" long
C L
2 x 4 or
equivalent
runners
18"
over centerline
of cabinet
(Must Support 275 LBS.)
Dimension and installation information are shown in inches.
R
10
Locate
junction
A
box
either
5" MIN.
below
cutout
floor or
34" MIN.
above
cutout
floor
D
Minimum
cutout
location
32-1/2
from
floor
C MIN.
2" x 4"
or equiv.
runners
(Minimum 15-5/8"
from floor when
installed below built-in
microwave oven)
Listed by
Underwriters
Laboratories
Specification Revised 1/05
