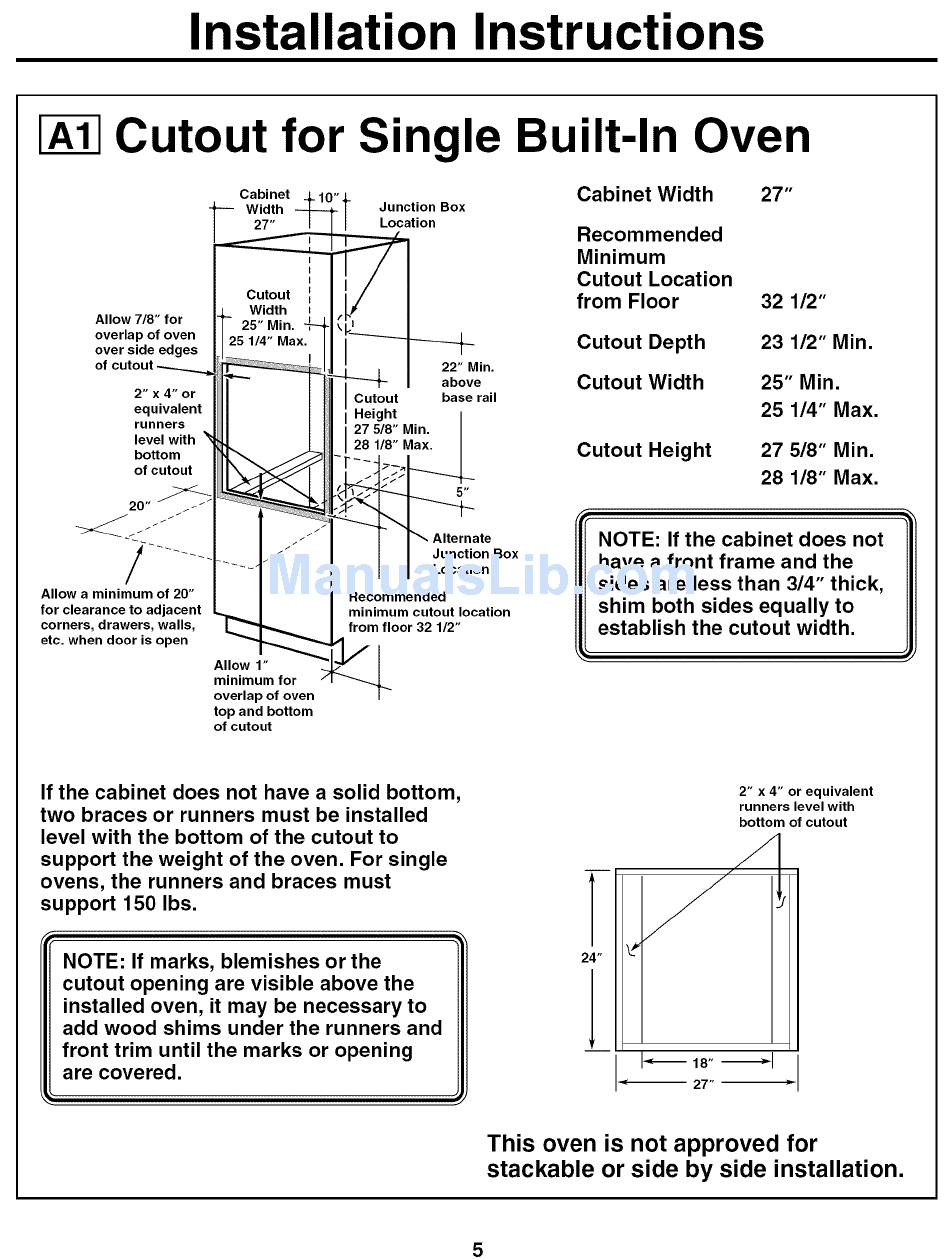

Installation Instructions
Cutout for Sin le Built-In Oven
Cabinet
Cabinet Width
27"
Width
Junction Box
27"
Location
Allow 718" for
overlap of oven
over side edges
of cutout ----..._
2" x 4" or
equivalent
runners
level with
bottom
o1 cutout
20"
Allow a minimum of 20"
for clearance to adjacent
corners, drawers, walls,
etc. when door is open
Cutout
Width
-
25" Min.
25 1/4" Max.
Allow 1"
minimum for
overlap of oven
top and bottom
of cutout
22" Min.
above
Cutout
base rail
Height
I
27 5/8" Min.
I
28 1/8" Max.
I
I
_
Alternate
Junction
Box
Location
Recommended
minimum cutout location
from floor 32 1/2"
Recommended
Minimum
Cutout Location
from Floor
Cutout Depth
Cutout Width
Cutout Height
32 1/2"
23 1/2" Min.
25" Min.
25 1/4" Max.
27 5/8" Min.
28 1/8" Max.
NOTE: If the cabinet
does not
have a front frame and the
sides are less than 3/4" thick,
shim both sides equally
to
establish
the cutout width.
If the cabinet does not have a solid bottom,
two braces or runners
must be installed
level with the bottom of the cutout to
support
the weight of the oven. For single
ovens, the runners and braces must
support
150 Ibs.
NOTE: If marks, blemishes
or the
cutout opening are visible above the
installed oven, it may be necessary
to
add wood shims under the runners
and
front trim until the marks or opening
are covered.
2" x 4" or equivalent
runners level with
bottom of cutout
2!,1
I_
I_
18"-_1
27"
This oven is not approved for
stackable or side by side installation.
