Table of Contents

PLEASE READ AND SAVE THESE INSTRUCTIONS
NewAir AC-10000E, AC-10000H
Portable Air Conditioner
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for NewAir AC-10000E

Summary of Contents for NewAir AC-10000E

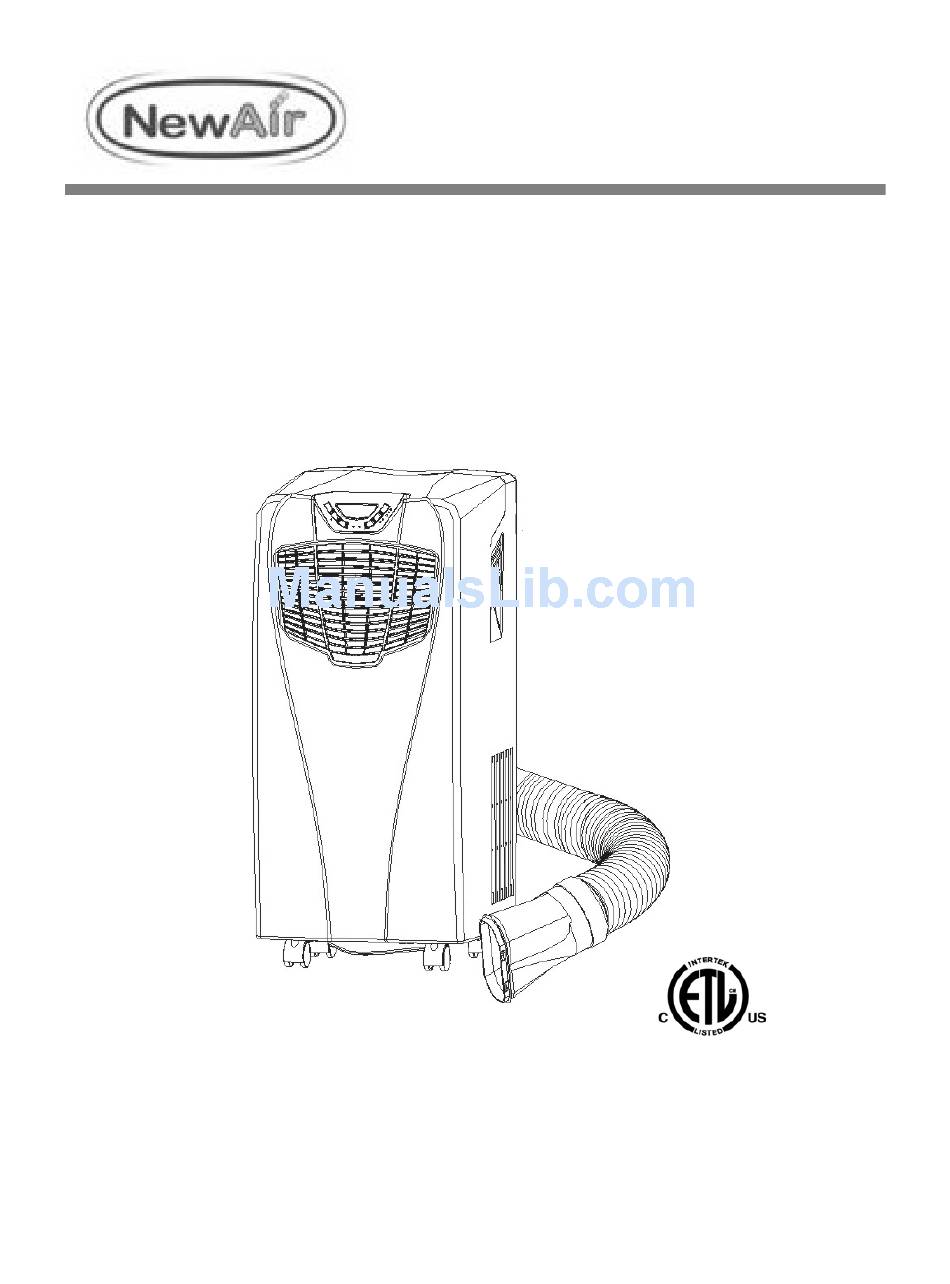

  • Page 1 PLEASE READ AND SAVE THESE INSTRUCTIONS NewAir AC-10000E, AC-10000H Portable Air Conditioner Owner’s Manual...

  • Page 2: Before Use

    BEFORE USE GENERAL SAFETY INSTRUCTIONS: ALWAYS OPERATE THE UNIT IN AN UPRIGHT POSITION AND PLACE IT ON A FLAT, LEVEL SURFACE AT LEAST 14” FIG. 1 (36CM) AWAY FROM ANY OTHER OBJECTS (FIG 1 & 4). DO NOT PLACE OBJECTS ON THE UNIT AND DO NOT COVER OR OBSTRUCT THE INLET OR OUTLET GRILLES (FIG.
  • Page 3 FOR MAXIMUM EFFICENCY: Make sure doors and windows are closed while the portable air conditioner is in use. Also keep curtains and blinds closed during the sunniest parts of the day while it is in operation. Frequently clean the filters. Once the room or area has reached your desired comfort level, be sure to reduce the unit’s temperature and ventilation settings.

  • Page 4: Parts List

    PARTS LIST Front Back FIG.6 FIG.5 Display window Cord wrap Control panel Air filter Control buttons Air inlet Louvers 10. Exhaust air outlet Carrying handle 11. Air inlet Casters 12. Water plug/drainage port Accessories 13. Hose adaptor (goes over hose and into the window kit) 14.

  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS Installing the Exhaust Hose FIG.8 1. Open the window and insert the window kit into the open gap. 2. Close the window until the window kit is held securely. You may need to adjust the size of the window kit and secure it with screws. This technique may also be used for sash windows.
  • Page 6 Positioning the Exhaust Hose Insert the exhaust hose into the back of the unit and tighten it into place. Avoid kinks and bends in the FIG. 9 exhaust hose. These can cause expelled moist air to accumulate, resulting in overheating and unexpected shut offs (See Fig 9 &...
  • Page 7 Installing the Activated Carbon Filter Remove the filter frame from the unit. Remove the activated carbon filter from its plastic bag. Insert the activated carbon filter into the back of the unit. Reattach the filter frame onto the unit. FIG.13...

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS Control Panel FIG.14 ON/OFF (power) button 10. Heating mode indicator light (only for Timer button AC-10000H) Timer indicator light 11. Fan mode indicator light Temperature increase button 12. Cooling mode indicator light Compressor indicator light 13. Automatic mode indicator light Full water tank indicator light 14.
  • Page 9 Setting the Temperature Press the UP or DOWN button to change the set temperature. The display window will then indicate the set temperature. If no temperature is set, the display will show the room’s ambient temperature. Please note that the default cooling temperature of this portable air conditioner is 75 Setting the Fan/Ventilation Speed Press the SPEED button to select the desired fan speed (high or low).
  • Page 10 Regulating the Air Flow Direction To control the air flow direction, adjust the knob on the louvers. FIG. 16 PLEASE NOTE: To prolong the life of the compressor, after turning off the unit, please wait at least 3 minutes before turning it back on. The cooling system will switch off if the ambient temperature is lower than the set temperature (the ventilation will keep working at the set level).

  • Page 11: Draining The Unit

    DRAINING THE UNIT During the cooling process, some water will be extracted from the air and stored within the unit’s water reservoir. If the water reservoir is full, both the compressor and motor will stop and the unit will beep (press any button to stop the beeping sound).
  • Page 12 • The drainage hose may be extended by adding an extension hose using a suitable FIG.19 connector. Drainage hose PLEASE NOTE: included with the unit 1. The drain must be at or below the level of the drainage port. FIG.20 2.

  • Page 13: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS Always unplug the air conditioner from the power supply before cleaning. To maximize the efficiency of the air conditioner, regularly clean the unit. Cleaning the Housing • Use a soft, damp cloth to wipe the body clean. • Never use strong chemicals, gasoline, detergents, chemically-treated cloths, or any other cleaning solutions to clean the air conditioner, as these can all potentially damage the unit’s housing.

  • Page 14: Troubleshooting

    TROUBLESHOOTING The air conditioner does not function. Is the air conditioner plugged in? Is the power outlet functioning correctly? Is the full water tank indicator light flashing? Is the ambient room temperature lower than the set temperature? The unit does not produce adequate Is the unit placed in direct sunlight? If so, close cooling.

  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS Model Number: AC-10000E AC-10000H Voltage / Frequency 115V / 60Hz Power Consumption for cooling” 909W / 8.3A Power Consumption for heating” 830W / 7.6A Air Volume (Maximum Speed) 300 m Dehumidification Capacity 2.1 pints/hr (1 L/hr) Compressor Type...

  • Page 16: Limited Manufacturer's Warranty

    Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer’s discretion.
