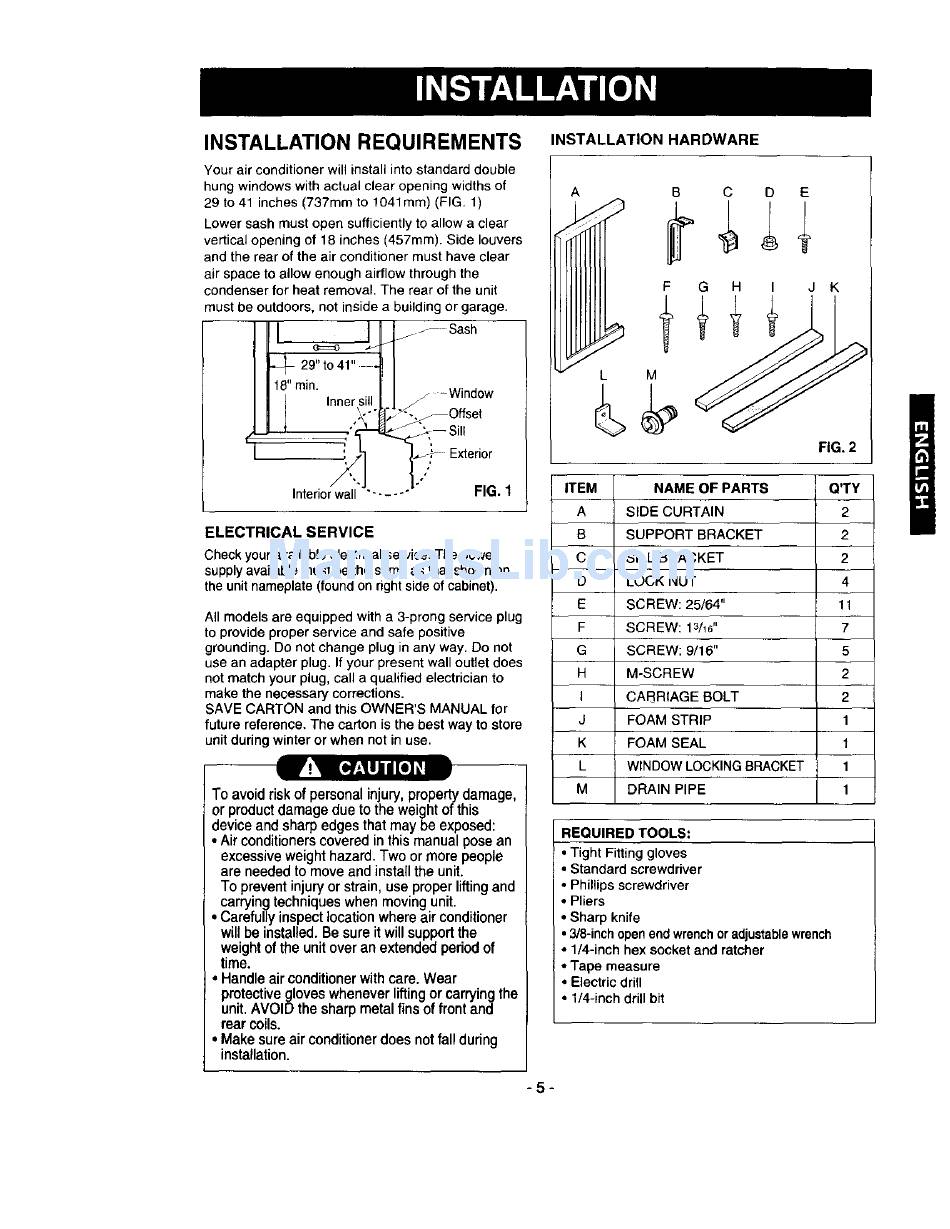

INSTALLATION REQUIREMENTS
INSTALLATION
HARDWARE
Your air conditioner will install into standard double
hung windows with actual clear opening widths of
29 to 41 inches (737mm to 1041mm) (FIG. 1)
Lower sash must open sufficiently to allow a clear
vertical opening of 18 inches (457mm). Side louvers
and the rear of the air conditioner must have clear
air space to allow enough airflow through the
condenser for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.
29"te4t"
"_ I
I I1_ "min" Inner silll
I/j
-Window
III
Offset
_
"_1
I_,
Exterior
Interior wall ""....
°
FIG. 1
ELECTRICAL SERVICE
Check your available electdcal service. The power
supply available must be the same as that shown on
the unit nameplate (found on right side of cabinet).
All models are equipped with a 3-prong service plug
to provide proper service and safe positive
grounding. Do not change plug in any way. Do not
use an adapter plug. If your present wall outlet does
not match your plug, call a qualified electrician to
make the necessary corrections.
SAVE CARTON and this OWNER'S MANUAL for
future reference. The carton is the best way to store
unit during winter or when not in use.
To avoid risk of personal injury, property damage,
or product damage due to the weight of this
device and sharp edges that may be exposed:
• Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people
are needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
• Carefully inspect locationwhere air conditioner
will be installed. Be sure itwillsupport the
weight of the unit over an extended period of
time.
• Handle air conditioner with care. Wear
protective gloveswhenever lifting or carrying the
unit. AVOID the sharp metal fins of front and
rear coils.
Make sure air conditioner does not fall during
installation.
A
B
F
G
M
C
D
E
H
I
J
FIG. 2
ITEM
NAME OF PARTS
A
SIDE CURTAIN
B
SUPPORT BRACKET
C
SILL BRACKET
D
LOCK NUT
E
SCREW: 25/64"
F
SCREW: 13/16 "
G
SCREW: 9/16"
H
M-SCREW
I
CAR_RIAGE BOLT
J
FOAM STRIP
K
FOAM SEAL
L
WINDOW LOCKING BRACKET
M
DRAIN PIPE
Q'TY
2
2
2
4
11
7
5
2
2
1
1
1
1
REQUIRED TOOLS:
• Tight Fitting gloves
• Standard screwdriver
• Phillips screwdriver
• Pliers
• Sharp knife
• 3/8-inchopen end wrench or adjustablewrench
• 1/4-inch hex socket and ratcher
• Tape measure
• Electric drill
• 1/4-inch drill bit
-5-
