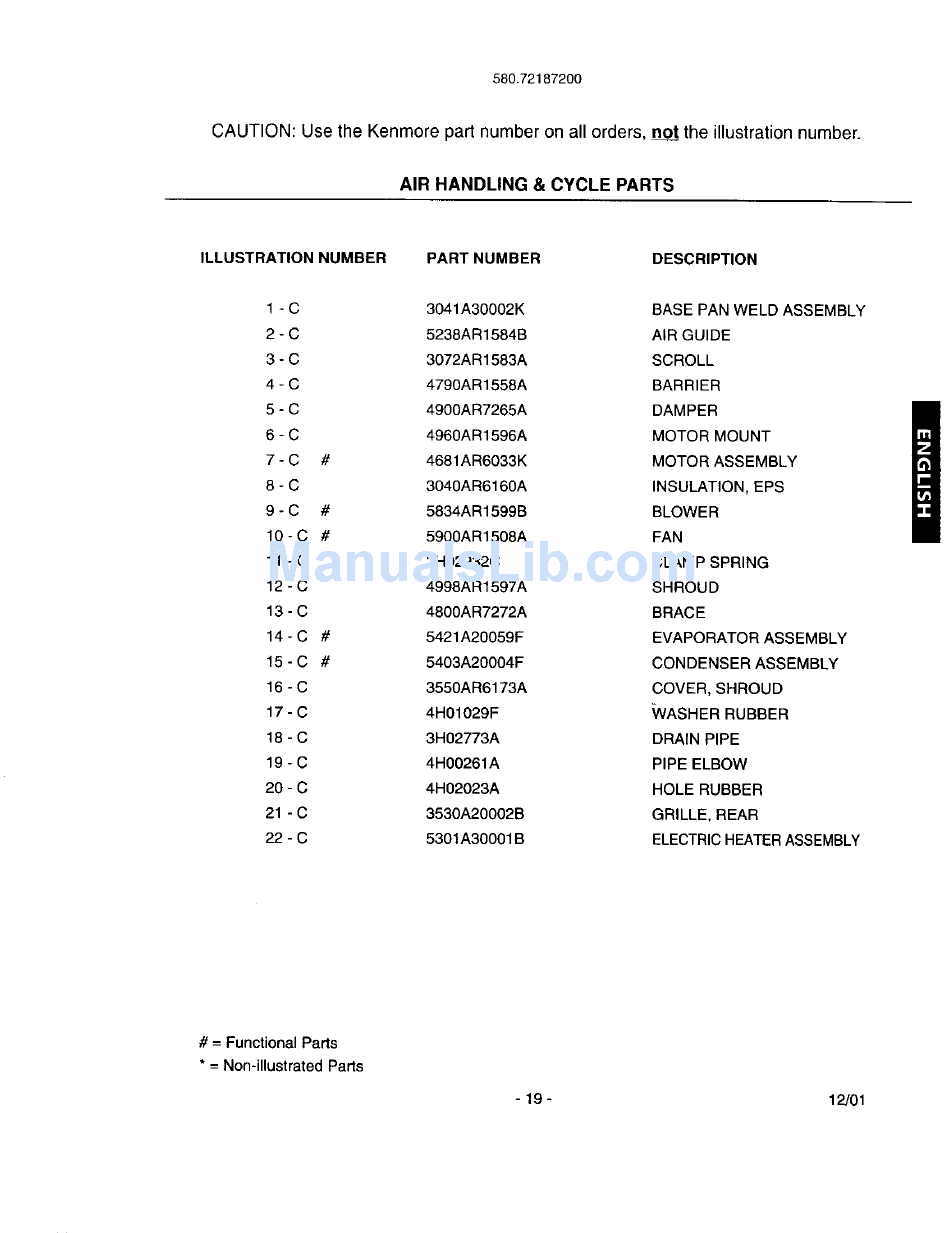

580.72187200
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
AIR HANDLING & CYCLE PARTS
ILLUSTRATION
NUMBER
PART NUMBER
DESCRIPTION
1 - C
3041A30002K
BASE PAN WELD ASSEMBLY
2 - C
5238AR1584B
AIR GUIDE
3 - C
3072AR1583A
SCROLL
4 - C
4790AR1558A
BARRIER
5 - C
4900AR7265A
DAMPER
6 - C
4960AR1596A
MOTOR MOUNT
7 - C
#
4681AR6033K
MOTOR ASSEMBLY
8 - C
3040AR6160A
INSULATION, EPS
9 - C
#
5834AR1599B
BLOWER
10- C #
5900AR1508A
FAN
11 - C
3H02932C
CLAMP SPRING
12 - C
4998AR1597A
SHROUD
13 - C
4800AR7272A
BRACE
14-C
#
5421A20059F
EVAPORATOR ASSEMBLY
15-C
#
5403A20004F
CONDENSER ASSEMBLY
16 - C
3550AR6173A
COVER, SHROUD
17 - C
4H01029F
WASHER RUBBER
18 - C
3H02773A
DRAIN PIPE
19 - C
4H00261A
PIPE ELBOW
20 - C
4H02023A
HOLE RUBBER
21 - C
3530A20002B
GRILLE, REAR
22 - C
5301A30001 B
ELECTRIC HEATER ASSEMBLY
# = Functional Parts
* = Non-illustrated Parts
- 19 -
12/01
