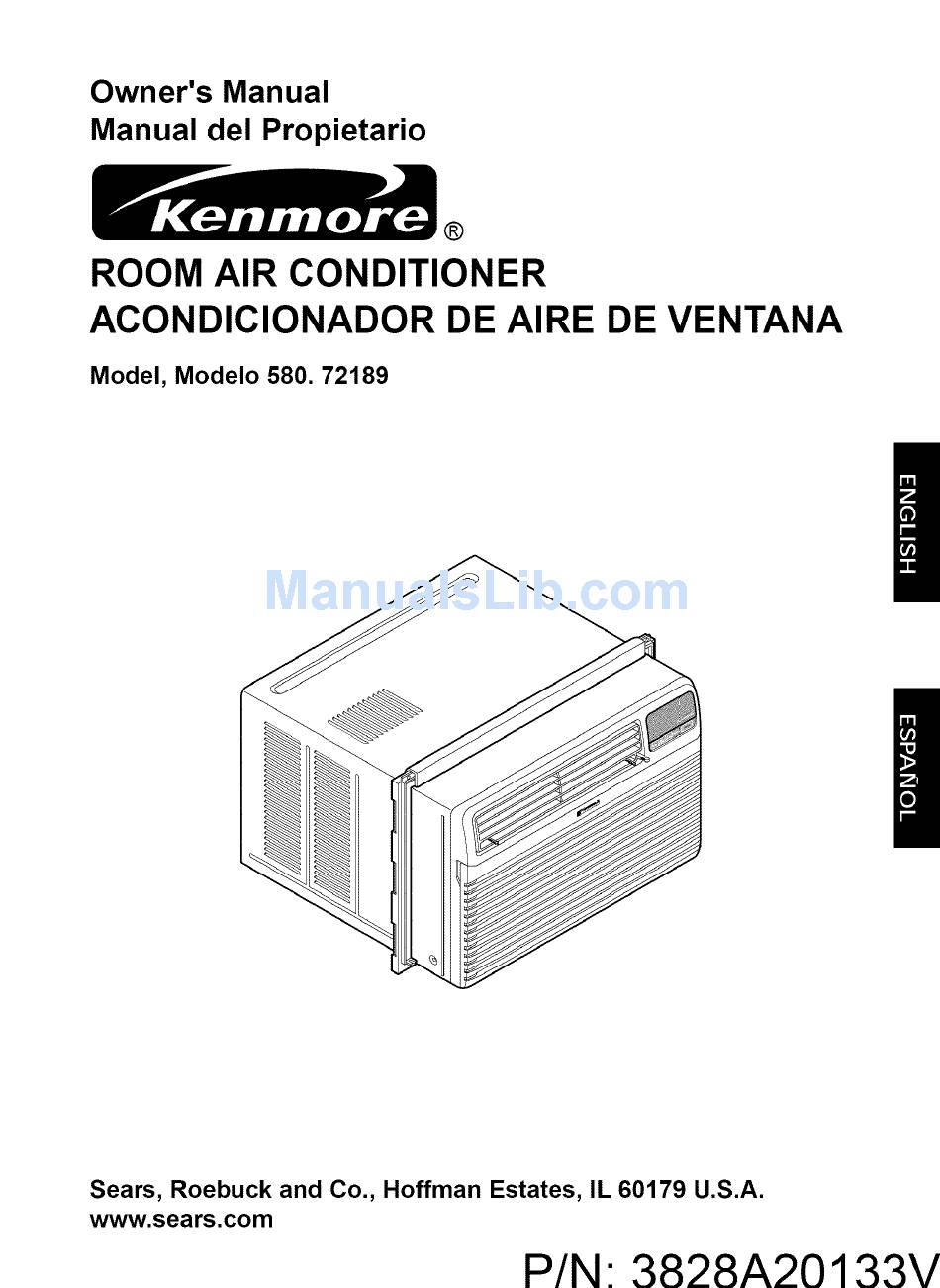

Owner's Manual
Manual del Propietario
®
ROOM AIR CONDITIONER
ACONDICIONADOR
DE AIRE DE VENTANA
Model, Modelo 580. 72189
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
P/N: 3828A20133V

Advertisement

Table of Contents

   Summary of Contents for KENMORE 580.72189

  • Page 1 Owner's Manual Manual del Propietario ® ROOM AIR CONDITIONER ACONDICIONADOR DE AIRE DE VENTANA Model, Modelo 580. 72189 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com P/N: 3828A20133V...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS ......2 Features ..........Using the Air Conditioner ....... 10 WARRANTY ..........2 Display ........... SAFETY .............3 Remote Control ........Important Safety Instructions ...... 3 MAINTENANCE ........13 ELECTRICAL REQUIREMENTS ..4 Air Filter Cleaning ........13 INSTALLING THE POWER CORD----4 Air Conditioner Cleaning ......
  • Page 3: Safety

    IMPORTANT SAFETY INSTRUCTIONS The safety instructions below will tell you how to use your room air conditioner to avoid harm to yourself damage to your ROOM AIR CONDITIONER. YOUR SAFETY Do not store or use gasoline or other flammable Avoid fire hazard or electric shock.
  • Page 4: Installing The Power Cord

    OBSERVE A LL LOCAL CODES AND ORDINANCES. DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY CORD GROUND PRONG. ELECTRICAL GROUND IS REQUIRED ON THIS APPLIANCE. For 230/208 volt 60 Hz, AC only, 15A fused Electrical Shock Hazard and properly grounded electrical supply is Plug into a grounded 3 prong outlet.
  • Page 5: Installation

    INSTALLATION HARDWARE INSTALLATION REQUIREMENTS Your air conditioner will install into standard double hung windows with actual clear opening widths 29 to 41 inches (737mm to 1041mm) (FIG. Lower sash must open sufficiently to allow a clear vertical opening of 18 inches (457mm).
  • Page 6: How To Install

    INSTALLATION Insert the side curtain (ITEM A) into the upper guide and lower guide of the air conditioner. Fasten the curtains to the unit with screws (ITEM E). Pick a location which will allow you to blow the cold air into the area you want. Windows used for installation must be strong...
  • Page 7 Pull the bottom window sash down behind • Connect a drain elbow of 9/16" inside diameter upper guide until they meet. the drain pipe. • Connect a drain hose of 9/16" inside diameter to the NOTE: drain elbow. (Drain hose is not supplied.) •...
  • Page 8: Removal From Window

    FRONT INSTALLATION Top of wood strip should be approximately 3/4" higher than the storm window frame to help Install the front grille(packed separately) onto the condensation to drain properly to the outside. cabinet as follows: • Install a second wood strip (approximately 6"...
  • Page 9: Operation

    HOW AND WHY Your room air conditioner provides the following Compressor functions to make hot weather living more The modern high efficiency comfortable: compressor may have a high • Cools and circulates room air. pitched hum or pulsating noise that cycles on and off.
  • Page 10: Features

    FEATURES USING THE AIR CONDITIONER To reduce the risk of fire, electric shock, or injury to persons, read the important SAFETY instructions section before operating this appliance To begin operating the air conditioner after installation, follow these steps: 1. Plug in the air conditioner. (To prevent electrical hazards,...
  • Page 11: Display

    DISPLAY FAN SPEED • Everytime you pushthis button,it advancesthe settingas follows:{High-_ Low-_ Med-_ High} _" -- REMOTE CONTROL SIGNAL RECEIVER "- POWER • Toturntheair conditioner O N, pushthe button.Toturnthe the button again. airconditioner O FF,push • This button takes priority over any other button.
  • Page 12: Remote Control

    REMOTE CONTROL NOTE: The Remote Control will not operate properly if strong light shines on the sensor window of the Air Conditioner or if there are obstacles between the Remote Control and the Air Conditioner. Every time you push button, you will hear a beep from the Air Conditioner.
  • Page 13: Air Filter Cleaning

    AIR FILTER CLEANING The cabinet may be washed with mild soap or detergent and lukewarm water, then polished with The Air Filter will become dirty as it removes dust liquid appliance wax. from the inside air. It should be washed at least To ensure continued...
  • Page 14: Before Calling For Service

    BEFORE CALLING FOR SERVICE Check the following list to be sure a service call is really necessary. A quick reference to this manual help you avoid an unneeded service call. THE AIR CONDITIONER WILL NOT OPERATE Check if... Then... Wall ptug disconnected. Push plug firmly into wall outtet.
  • Page 15 -15-...
  • Page 16: Parts

    Room Air Conditioner To order Parts call Toll Free Model No. 580.72189200 1-800-4-MY-HOME'S(I-800-469-4663) CAUTION: Use the Kenmore part number on all orders, not the illustration number. CABINET & FRONT GRILLE ASSEMBLY 12/01 - 16-...
  • Page 17 580.72189200 CAUTION: Use the Kenmore part number on all orders, net the illustration number. CABINET & FRONT GRILLE ASSEMBLY ILLUSTRATION PART NUMBER DESCRIPTION NUMBER 1 - A 3530A20045A FRONT GRILLE 2 - A 3530A10102A INLET GRILLE 3 - A 5231A20008A...
  • Page 18 580.72189200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. CONTROL BOX ASSEMBLY 10-B 12-B 14-B 13-B 15-B 12/01 - 18-...
  • Page 19 580.72189200 CAUTION:UsetheKenmorepartnumberonallorders, nettheillustrationnumber. CONTROL BOX ASSEMBLY DESCRIPTION ILLUSTRATION PART NUMBER NUMBER 4994A20045A CONTROL BOX 3720A20141A PANEL, CONTROL 3550A30122A COVER, CONTROL BOX 6871A20167B PWB ASSEMBLY, AC 6871A20185B PWB ASSEMBLY, DC CAPACITOR 6120AR2194D 6609A10003G H.V ASSEMBLY 6411A20011K POWER CORD ASSEMBLY 6323A20004E THERMISTOR ASSEMBLY CONNECTOR ASSEMBLY 10- B...
  • Page 20 580.72189200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. AIR HANDLING & CYCLE PARTS 17-C 15-C 22-C 13-C 23-C 11-C 12-C 11-C 20-C 16-C 18-C 24-C 14-C 25-C 12/01 - 20 -...
  • Page 21: Numbers

    580.72189200 CAUTION: Use the Kenmore part number on all orders, net the illustration number. AIR HANDLING & CYCLE PARTS ILLUSTRATION PART NUMBER DESCRIPTION NUMBER 1 - C 3041A20023T BASE PAN WELD ASSEMBLY 2 - C 5238A10008A AIR GUIDE 3 - C...
  • Page 22 580.72189200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. COMPRESSOR PARTS 12-D 13-D 14-D 10-D 11-D 12/01 - 22 -...
  • Page 23 580.72189200 CAUTION: Use the Kenmore part number on all orders, net the illustration number. COMPRESSOR PARTS ILLUSTRATION PART NUMBER DESCRIPTION NUMBER 1 - D 4H00982C ISOLATOR, COMP 2 - D 2520UMBK2EA COMPRESSOR 3- D 4810AR4155B BRACKET, WASHER 4 - D...
  • Page 24 580.72189200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. INSTALLATION KIT ASSEMBLY 12/01 - 24 -...
  • Page 25 580.72189200 CAUTION: Use the Kenmore part number on all orders, net the illustration number. INSTALLATION KIT ASSEMBLY ILLUSTRATION PART NUMBER DESCRIPTION NUMBER 4H01785B L BRACKET 4959AR3402E CURTAIN ASSEMBLY 4959AR3402F CURTAIN ASSEMBLY 3H01479D SUPPORT BRACKET 3H01395C SILL BRACKET 4H01516A LOCK NUT...
