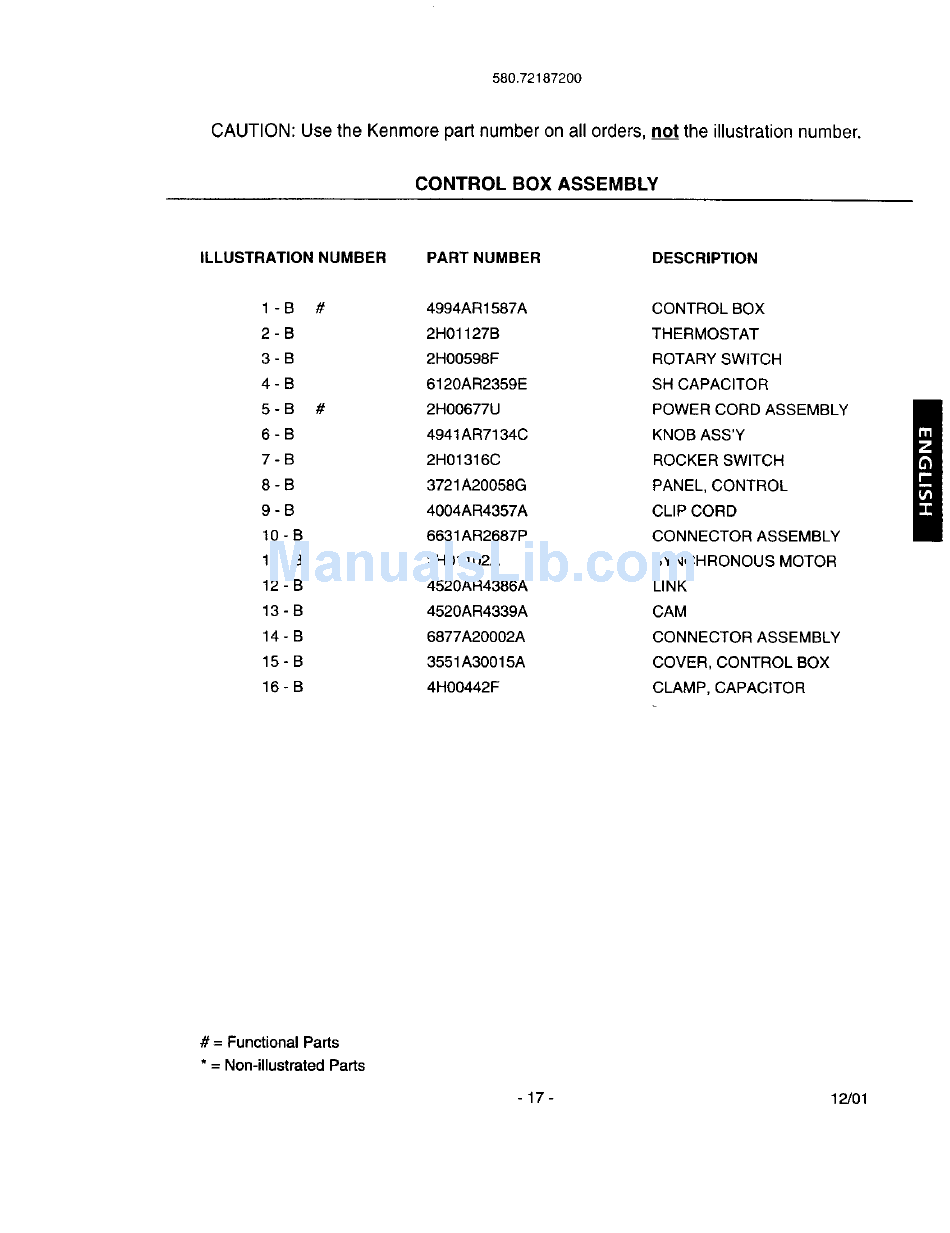

CAUTION: Use the Kenmore part number on all orders, not the illustration number.
CONTROL
BOX ASSEMBLY
ILLUSTRATION
NUMBER
PART NUMBER
DESCRIPTION
1 - B
#
4994AR1587A
CONTROL BOX
2 - B
2H01127B
THERMOSTAT
3 - B
2H00598F
ROTARY SWITCH
4 - B
6120AR2359E
SH CAPACITOR
5 - B
#
2H00677U
POWER CORD ASSEMBLY
6 - B
4941AR7134C
KNOB ASS'Y
7 - B
2H01316C
ROCKER SWITCH
8 - B
3721A20058G
PANEL, CONTROL
9 - B
4004AR4357A
CLIP CORD
10 - B
6631AR2687P
CONNECTOR ASSEMBLY
11 - B
2H01102A
SYNCHRONOUS
MOTOR
12 - B
4520AR4386A
LINK
13 - B
4520AR4339A
CAM
14 - B
6877A20002A
CONNECTOR ASSEMBLY
15 - B
3551A30015A
COVER, CONTROL BOX
16- B
4H00442F
CLAMP, CAPACITOR
# = Functional Parts
* = Non-illustrated Parts
- 17 -
