Your Station's Display Lights - Comdial DSU II Digital Expandable Systems User Manual

Getting Started

Your Station's Display Lights

Next to a fixed feature or programmable feature button:
· Steady red = the feature is on.
· Steady off = the feature is off.
Next to INTERCOM button:
· Steady green with a quick flash = you are using your intercom.
· Fluttering red = an LCD message is set on your telephone for others to
receive when calling.
· Flashing orange = someone is calling your extension or a call is being
transferred to you.
Above the keypad (8101N only):
· Fast flashing red = message awaits pick up.
· Winking green with repetitive off periods = a line is on hold at your
station.
6
1 2 3
QZ ABC
4 5 6
GHI
JKL
7 8 9
PRS TUV
0
#
OPER
R
TRNS/CNF
HOLD
Connectors On Bottom Of Telephone
Hold Button
Line Cord
!

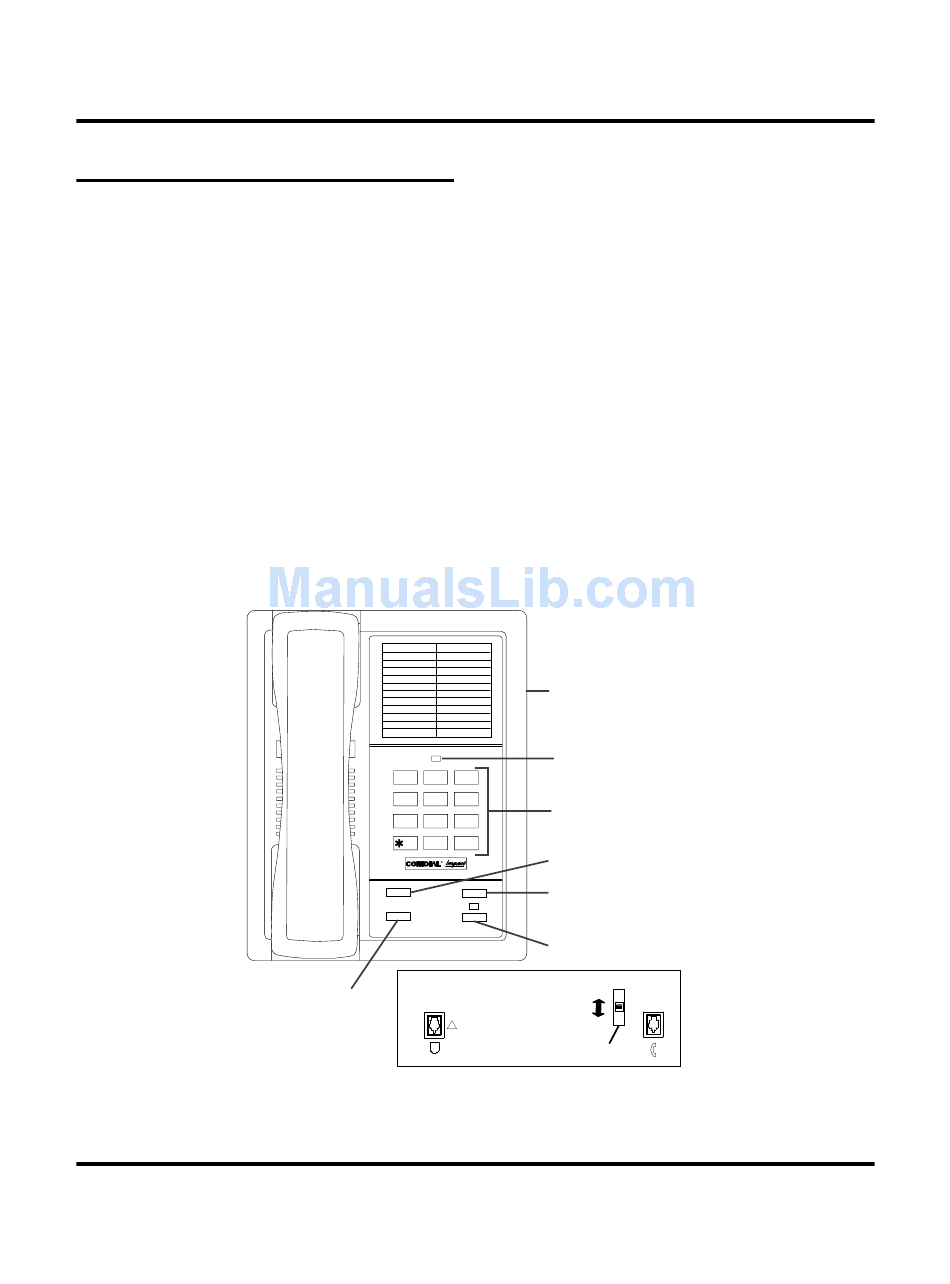

Impact 8101N Single Line Telephone
Single Line Proprietary Telephone Station User's Guide
slips02
Ringer Volume Switch
(bottom of telephone)
Message Waiting Light
DEF
MNO
Dialpad
WXY
Transfer/Conference Button
TAP Button
TAP
INTERCOM
Intercom Button
Off
Handset
Loud
Ringer Volume
GCA70-246
