5.

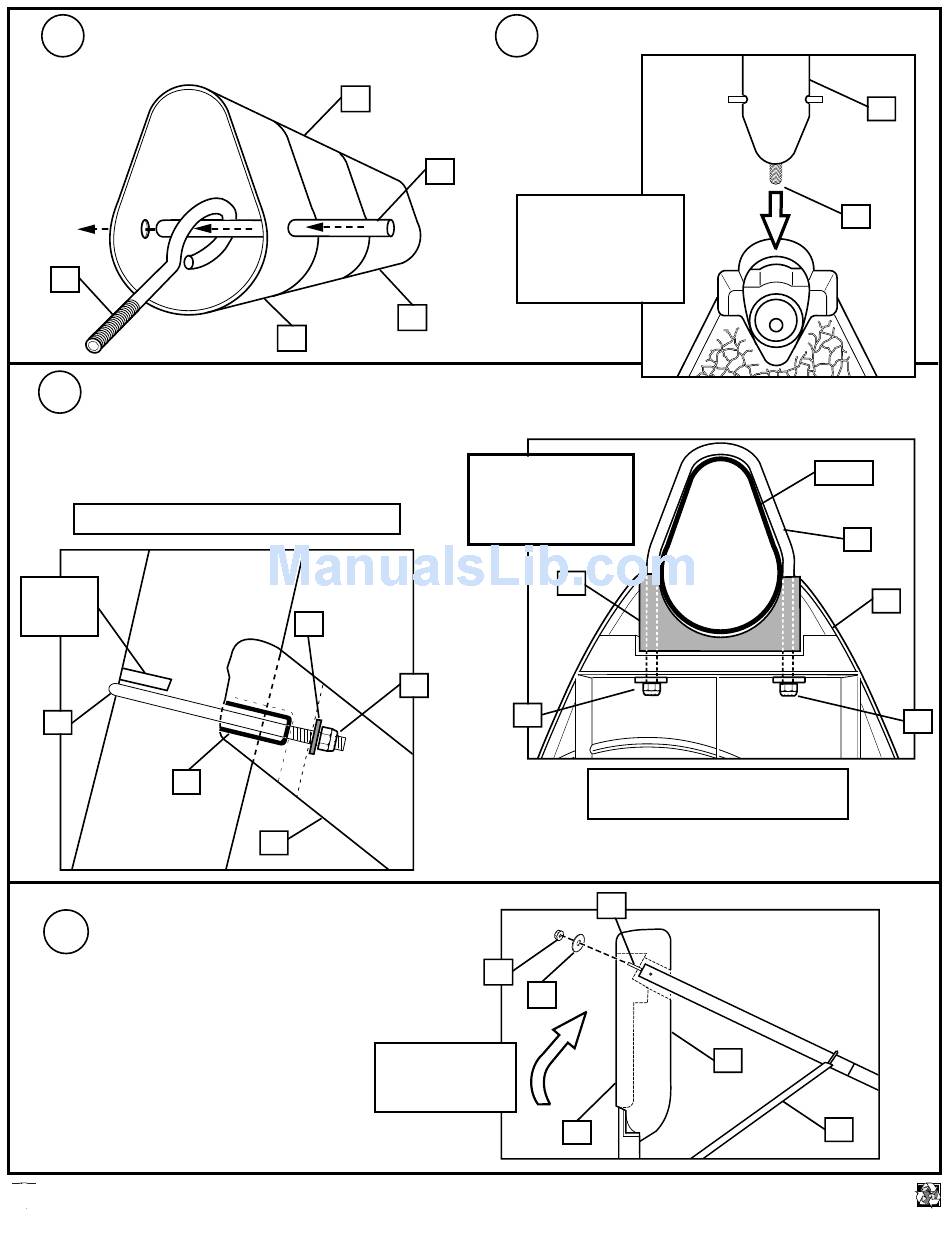

Install rod (8) thru holes in bottom pole section (3)
and eyebolt (7) as shown.
7
7.
Bring pole foward and secure pole to front panel (4) at 34" (86.4 cm) mark on pole. Tighten nuts evenly until
snug. NOTE: Equal rotations on each side of u-bolt are necessary. (Final adjustment to level the rim will
be made in step 27).
SIDE VIEW OF ASSEMBLY
34"
(86.4 cm)
Mark
9
10
8.
NOTE: Two people recommended for this step.
Tilt unit foward using caution and secure pole
bottom to base using nut (12) and disk (13),
a deep socket is recommended.
P/N 205932 5/99
2
3
Pole
11
4
6.
Insert pole into base assembly as shown.
8
TOP VIEW OF
BASE ASSEMBLY
1
IMPORTANT!
Make sure items (10)
and (11) are used in
this assembly.
10
12
11
12
13
IMPORTANT!
DO NOT OVER
TIGHTEN.
5
BOTTOM VIEW OF FRONT PANEL ASSEMBLY
7
6
5
3
7
Pole
9
4
12
4
5/99 P/N
