IMPORTANT! WRITE DOWN MODEL NUMBER FROM BOX ON PAGE 1 OF THIS OWNERS MANUAL

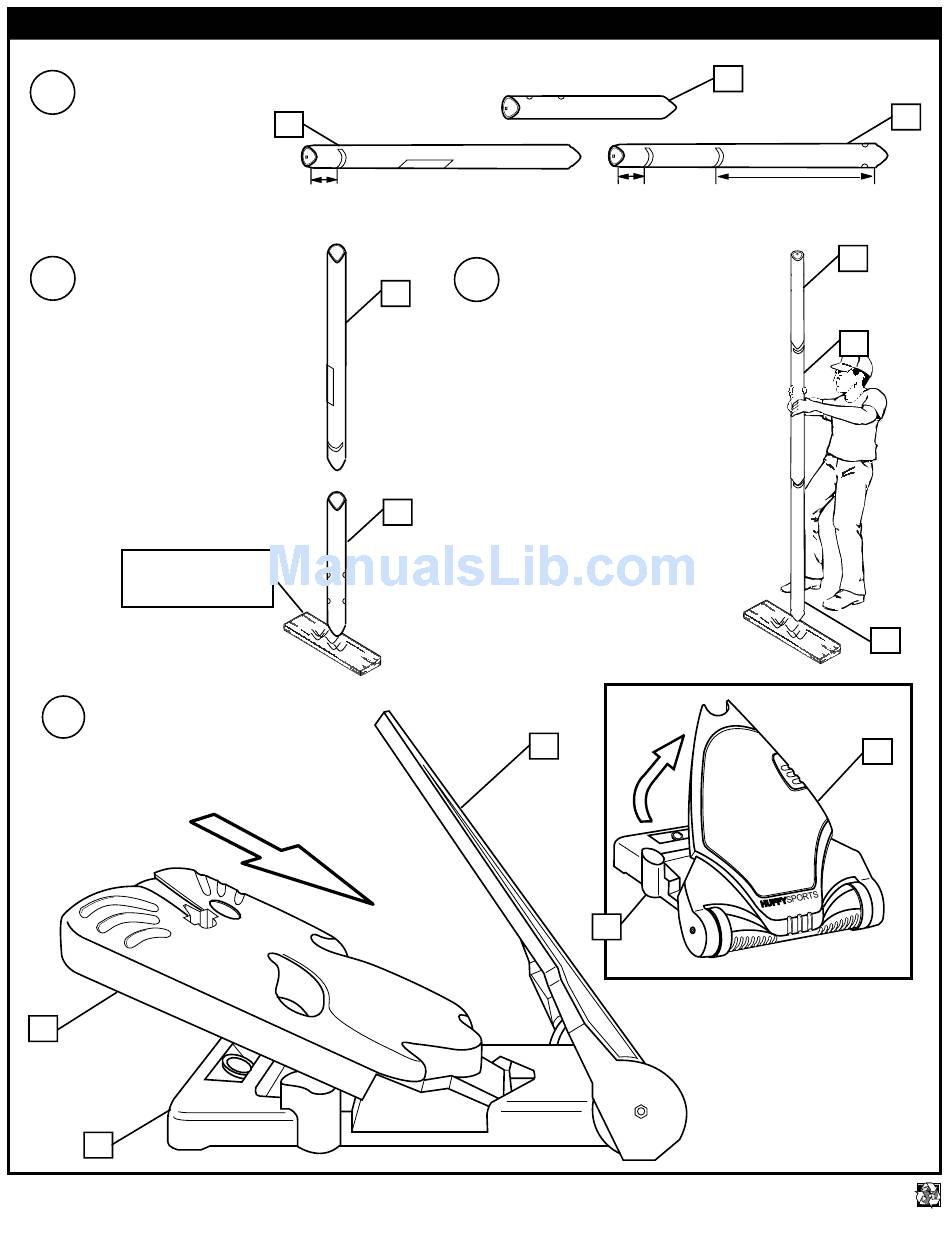

1.
Mark pole sections
with tape as shown.
2.
IMPORTANT!
pole top (1) and middle
section (2) together as
shown until they no longer
move toward taped
reference mark. Upright
assembly.
NOTE: Pole sections
should have a 4-3/4"
(12 cm) minimum
overlap.
WOOD SCRAP
4.
NOTE: Two people recommended
for this step. Lift front panel (4) and
insert tank (6) into base (5) as
shown.
